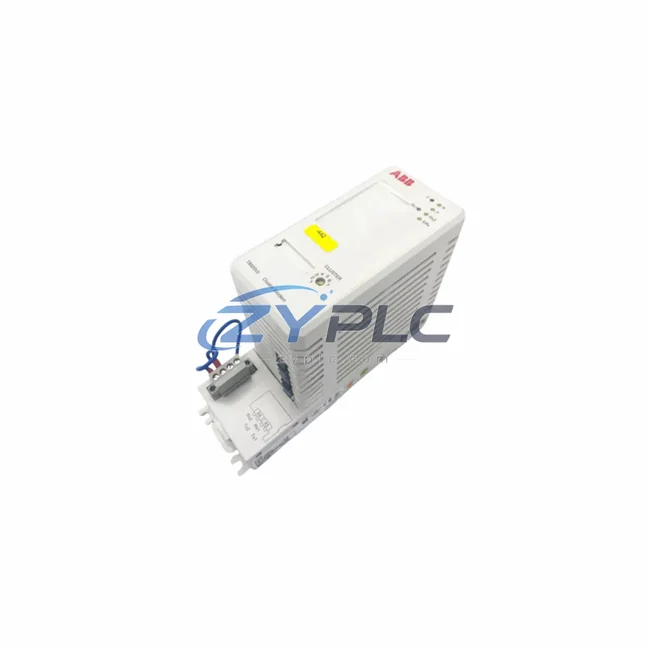

ABB TB820V2 3BSE013208R1 ModuleBus Modem for AC 800M

ABB TB820V2 3BSE013208R1 ModuleBus Cluster Modem for AC 800M

The ABB TB820V2 (catalog number 3BSE013208R1) is a ModuleBus Cluster Modem designed for seamless integration within the ABB AC 800M Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the TB820V2 serves as a critical communication bridge between the controller backplane and remote I/O clusters, enabling the AC 800M platform to extend its reach across large-scale industrial facilities. Its role in the control hierarchy spans the I/O layer and the network layer, ensuring that field signals are reliably transmitted to the central processing unit with minimal latency and maximum determinism.

In a fully realized AC 800M control architecture, the TB820V2 operates in close coordination with the PM860AK01 or PM861AK01 processor modules, which serve as the computational core of the control system. The ModuleBus Cluster Modem establishes the optical or electrical ModuleBus link between the main controller cabinet and satellite I/O clusters, allowing engineers to distribute I/O nodes across the plant floor without sacrificing communication integrity. This system integration capability is fundamental to modern process automation, where control logic must remain synchronized with hundreds of field devices simultaneously.

The TB820V2 is fully compatible with the S800 I/O family, including analog input modules such as the AI830A, analog output modules such as the AO820, and digital I/O modules such as the DI810 and DO810. These modules are mounted on TB807 or TB840A I/O base units and communicate upstream through the ModuleBus protocol managed by the TB820V2. The modem’s ability to support multiple I/O clusters on a single ModuleBus segment significantly reduces wiring complexity and cabinet footprint, which is a decisive advantage in retrofit projects and greenfield installations alike.

From a network architecture perspective, the TB820V2 complements communication interface modules such as the CI830 and CI840, which handle PROFIBUS DP and other fieldbus protocols. While the CI-series modules manage external device networks, the TB820V2 focuses on the internal ModuleBus backbone, ensuring that the controller’s scan cycle remains consistent regardless of the number of remote I/O nodes connected. This division of communication responsibilities is a hallmark of the AC 800M’s layered architecture philosophy, where each module performs a well-defined role within the overall system hierarchy.

Power integrity is maintained through the SD821 or SD822 power supply modules, which provide regulated 24 VDC to the I/O clusters. The TB820V2 itself draws minimal power from the backplane, contributing to the overall energy efficiency of the control cabinet. In redundant system configurations, a second TB820V2 can be deployed alongside the primary unit, with automatic switchover ensuring uninterrupted ModuleBus communication in the event of a hardware fault. This redundancy design is particularly valued in continuous process industries such as oil and gas, petrochemical refining, and power generation, where unplanned downtime carries significant operational and financial consequences.

For human-machine interface integration, the AC 800M platform typically connects to ABB’s 800xA System or third-party SCADA solutions via OPC DA/UA or Modbus TCP. The TB820V2’s role in maintaining a stable I/O data pipeline ensures that the HMI layer receives accurate, real-time process values, enabling operators to make informed decisions and respond promptly to process deviations. The DP820 PROFIBUS DP communication module may also be present in the same rack, further extending the system’s connectivity to variable frequency drives, intelligent motor controllers, and other PROFIBUS-enabled field devices.

From an engineering and commissioning standpoint, the TB820V2 is recognized for its straightforward configuration within ABB’s Control Builder M software environment. Address assignment, cluster topology definition, and diagnostic parameter configuration are all managed through the software’s hardware editor, reducing the risk of configuration errors during system startup. Maintenance engineers benefit from the module’s built-in diagnostic LEDs, which provide immediate visual feedback on ModuleBus link status, power supply health, and communication error conditions without requiring a laptop connection.

Long-term maintainability is a core consideration for any industrial control system investment. ZYPLC maintains availability subject to RFQ confirmation of the TB820V2 (3BSE013208R1) and related AC 800M components, supporting both planned maintenance shutdowns and emergency replacement scenarios. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing procurement teams and plant engineers with the confidence that their spare parts inventory meets the quality standards required for critical process control applications.

Product Specification Table

System Compatibility Notes

The TB820V2 achieves its full potential when deployed as part of a coordinated AC 800M system architecture. A typical installation pairs the TB820V2 with the PM860AK01 or PM861AK01 processor module, which executes the control application and manages the ModuleBus scan cycle. The processor communicates with remote I/O clusters through the TB820V2, which converts the backplane signals to the appropriate ModuleBus format for transmission over optical fiber or shielded copper cable.

Within the I/O cluster, the TB807 or TB840A base units host the S800 I/O modules, including the AI830A eight-channel analog input module for 4–20 mA process signals, the AO820 analog output module for control valve positioning, and the DI810 and DO810 digital I/O modules for discrete signal handling. The DP820 PROFIBUS DP module may also be installed in the cluster to interface with intelligent field devices on a PROFIBUS segment, with all data routed upstream through the TB820V2 to the AC 800M processor.

Communication interface modules such as the CI830 and CI840 complement the TB820V2 by managing external network connections, including PROFIBUS DP master functionality and Ethernet-based communication to the 800xA System server. Power to the I/O clusters is supplied by the SD821 or SD822 power supply modules, which are sized to support the full complement of I/O modules in each cluster. Together, these components form a cohesive, scalable control architecture capable of supporting thousands of I/O points across multiple process units.

Industrial Application Notes

The TB820V2 is deployed across a broad spectrum of industrial automation applications. In continuous process industries such as petrochemical refining and natural gas processing, the ModuleBus Cluster Modem enables the AC 800M to manage distributed I/O nodes located in hazardous area junction boxes, reducing the need for long individual cable runs from the field to the central control room. In power generation facilities, including thermal, hydroelectric, and combined-cycle plants, the TB820V2 supports the high-availability requirements of turbine control and balance-of-plant automation systems.

Water and wastewater treatment plants benefit from the TB820V2’s ability to connect remote pump stations and chemical dosing skids to a central AC 800M controller, enabling centralized monitoring and control without the cost of dedicated local PLCs at each remote site. In mining and minerals processing applications, the modem’s robust operating temperature range and vibration tolerance make it suitable for installation in field control panels located near crushers, conveyors, and flotation circuits. Packaging and discrete manufacturing lines also utilize the AC 800M with TB820V2 for coordinated motion and process control, where the ModuleBus communication speed supports the fast scan cycles required for high-throughput production.

Product Compatibility FAQ

Q1: How many I/O clusters can a single TB820V2 support in an AC 800M system?
A single TB820V2 supports up to eight S800 I/O clusters on one ModuleBus segment, with each cluster capable of hosting multiple I/O modules. For larger systems requiring more than eight clusters, additional TB820V2 units can be added to the AC 800M controller, each managing an independent ModuleBus segment. This modular expansion approach allows the system to scale from small installations to large plant-wide DCS configurations without architectural redesign.

Q2: Is the TB820V2 (3BSE013208R1) compatible with both the PM860 and PM861 processor modules?
Yes, the TB820V2 is compatible with the full range of AC 800M processor modules, including the PM860AK01, PM861AK01, and PM864AK01. The ModuleBus interface is a platform-level standard within the AC 800M architecture, ensuring backward and forward compatibility across processor generations. Configuration is managed through ABB Control Builder M, where the TB820V2 is defined as a hardware object within the controller’s I/O topology.

Q3: What does the warranty terms confirmed during quotation cover for the TB820V2 supplied by ZYPLC?
The warranty terms confirmed during quotation provided by ZYPLC covers hardware defects, functional failures, and communication faults attributable to the TB820V2 module itself under normal operating conditions. Units are tested prior to shipment to verify ModuleBus communication functionality and electrical integrity. In the event of a warranty claim, ZYPLC provides replacement or repair support to minimize system downtime. For warranty inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
