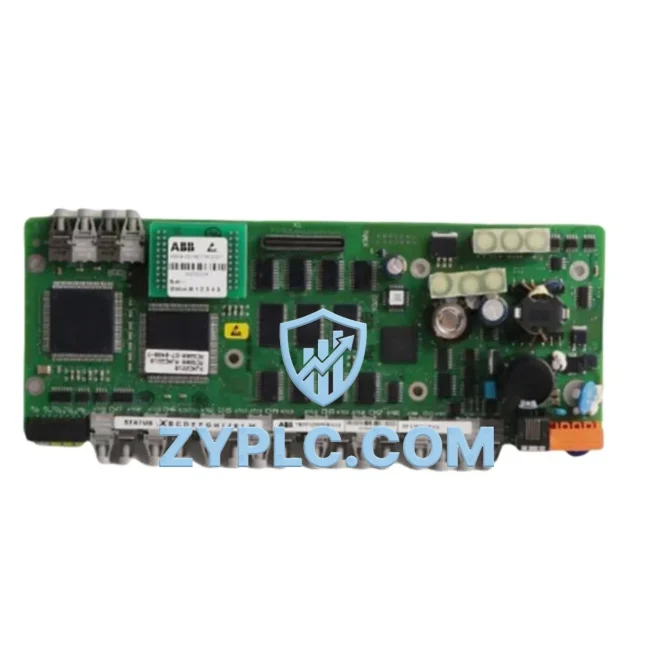

ABB 3BHE036130R0101 GDC806B PCB Card for GDC800 Automation
The ABB 3BHE036130R0101 GDC806B is a high-performance PCB card module engineered for the ABB GDC800 series medium-voltage drive platform. Designed to operate at the intersection of precision motor control and industrial maintenance planning, this card plays a critical role in reducing unnecessary power consumption, stabilizing drive output, and extending the operational lifespan of connected equipment. For factories seeking to improve equipment utilization rates, minimize unplanned downtime, and tighten production cycle times, the GDC806B delivers measurable results at the drive control layer.
In modern industrial environments, unplanned downtime rarely originates from a single source. It accumulates across inefficient motor ramp profiles, unstable feedback loops, poorly tuned drive parameters, and aging control boards that can no longer maintain accurate switching sequences. The 3BHE036130R0101 GDC806B addresses these issues directly by providing reliable gate drive control signals within the GDC800 drive system, ensuring that IGBT switching events are precisely timed, thermally managed, and consistent across the full load range. This translates directly into lower harmonic distortion, reduced heat generation, and improved overall drive efficiency on the production floor.
Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, with a 12-month warranty covering defects in materials and workmanship. Stock is maintained on-hand to support urgent replacement requirements, and same-day dispatch is available for confirmed orders.
Product Specification Table
| Parameter |
Specification |
| Part Number |
3BHE036130R0101 |
| Module Designation |
GDC806B |
| Compatible Platform |
ABB GDC800 Medium-Voltage Drive Series |
| Function |
Gate Drive Control PCB Card |
| Operating Voltage Range |
Per GDC800 drive specification (MV class) |
| Switching Efficiency Contribution |
Optimized IGBT gate signal timing, reduced switching losses |
| Compatible Systems |
ABB GDC800, ACS6000, ACS5000 medium-voltage drive families |
| Application Environment |
Heavy industry, mining, oil & gas, water treatment, power generation |
| Energy Saving Value |
Reduces drive inefficiency from faulty gate control; supports variable speed operation for motor operational stability up to 30–50% vs. fixed-speed alternatives |
| Origin |
Germany |
| Warranty |
12-Month Warranty — All units tested before shipment |
| Availability |
In Stock — Ready to Ship |
System Compatibility and Application
The GDC806B does not operate in isolation. Its value is fully realized when integrated within a well-designed automation architecture that spans energy measurement, drive control, motor management, and system-level feedback. In a typical GDC800-based installation, the 3BHE036130R0101 GDC806B works in coordination with the ABB SDCS-CON-4 control board, which manages the overall drive logic and closed-loop speed regulation. The SDCS-CON-4 sends reference signals that the GDC806B translates into precise gate pulses for the power semiconductors, ensuring that motor torque and speed are delivered with minimal energy overhead.
On the condition monitoring side, integration with ABB’s PSTX soft starter series or the ABB B23 energy meter allows plant engineers to track real-time power consumption at the drive level. When paired with an ABB AC500 PLC managing the broader production cell, the GDC800 drive system can respond dynamically to load changes — ramping motor speed up or down based on actual process demand rather than running at fixed speed. This demand-responsive control, enabled by the accurate gate switching of the GDC806B, is one of the most effective strategies for reducing idle-state energy consumption in continuous process industries.
For facilities running distributed I/O architectures, the ABB CI854 PROFIBUS communication interface module enables the GDC800 drive to exchange status and energy data with the plant DCS or SCADA system in real time. This connectivity supports predictive maintenance workflows — when the GDC806B or associated drive components begin to show anomalous switching behavior, the control system can flag the condition before a fault occurs, avoiding unplanned stops that disrupt production rhythm and waste energy through emergency restarts.
In multi-drive installations, the ABB RDCO-03 DDCS fiber optic communication board is commonly used alongside GDC800 drives to synchronize multiple drive units across a common control backbone. Accurate gate drive performance from each GDC806B card ensures that load sharing between parallel drives remains balanced, preventing one drive from carrying disproportionate load — a common source of energy inefficiency and premature component wear. The ABB AINT-02 auxiliary interface board further extends the diagnostic and control capabilities of the GDC800 platform, providing additional I/O channels for energy metering signals and external interlocks.
For HMI-level visibility, the ABB CP600 operator panel series can be configured to display real-time drive efficiency metrics, motor current draw, and energy consumption trends directly on the production floor. This gives operators immediate feedback on whether the drive system is performing within its optimal efficiency band, enabling faster response to process deviations that would otherwise go unnoticed until the next scheduled maintenance window.
Maintenance and Replacement Notes
In heavy industrial applications — including mining conveyors, large pump stations, compressor drives, and rolling mill main drives — the GDC800 series is deployed precisely because of its ability to deliver precise, energy-efficient motor control at medium voltage levels. The 3BHE036130R0101 GDC806B is the gate drive heart of this system. When this card degrades or fails, the consequences extend well beyond a simple drive fault: IGBT switching becomes erratic, motor current waveforms distort, harmonic content increases, and the drive’s thermal management system is forced to compensate — all of which consume additional energy and accelerate wear on surrounding components.
Replacing a worn or failed GDC806B with a tested, genuine ABB unit restores the drive to its designed efficiency curve. In variable speed pump and fan applications, this directly supports the cubic law relationship between motor speed and power consumption — where a 20% reduction in speed yields nearly a 50% reduction in power draw. Without accurate gate control from a properly functioning GDC806B, the drive cannot maintain the precise speed regulation needed to exploit this relationship, and operational stability are left unrealized.
From a maintenance cost perspective, proactive replacement of aging GDC806B cards — rather than waiting for a catastrophic drive fault — reduces the risk of collateral damage to IGBT modules, DC bus capacitors, and current sensors. Each of these components represents a significantly higher replacement cost than the PCB card itself. ZYPLC maintains ready stock of the 3BHE036130R0101 GDC806B to support both planned maintenance schedules and emergency breakdown scenarios, with fast international shipping to minimize production downtime.
Production line rhythm — the consistent, repeatable cycle time that defines manufacturing efficiency — depends on drives that start, accelerate, and decelerate predictably. A GDC800 drive equipped with a fully functional GDC806B delivers this consistency. When gate drive signals are clean and well-timed, motor response is smooth, mechanical stress on couplings and gearboxes is reduced, and the overall system operates closer to its designed energy efficiency point across every production shift.
Product Sourcing FAQ
Q: How does replacing the ABB 3BHE036130R0101 GDC806B improve energy efficiency in my GDC800 drive?
A: The GDC806B controls the gate signals for the drive’s IGBT power modules. A degraded card causes imprecise switching, which increases switching losses, raises drive operating temperature, and distorts motor current waveforms. Replacing it with a tested unit restores optimal switching performance, reducing unplanned downtime at the drive level and improving overall system efficiency.
Q: Is the 3BHE036130R0101 GDC806B compatible with all GDC800 drive variants?
A: The GDC806B is designed for the ABB GDC800 medium-voltage drive platform. Compatibility depends on the specific drive configuration and firmware version. We recommend confirming your drive’s exact model and software revision before ordering. Our technical team can assist with compatibility verification prior to purchase.
Q: What is the recommended replacement interval for the GDC806B in continuous-duty industrial applications?
A: ABB does not publish a fixed replacement interval for PCB cards under normal operating conditions. However, in high-cycle or thermally demanding environments, proactive inspection every 3–5 years is advisable. Signs of degradation include increased drive fault frequency, erratic motor behavior, or elevated drive operating temperatures. Predictive replacement before failure avoids unplanned downtime and protects higher-value drive components.
Q: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every ABB 3BHE036130R0101 GDC806B supplied by ZYPLC is functionally tested prior to dispatch to verify electrical integrity and operational performance. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, our team provides rapid replacement support to minimize impact on your production schedule.
