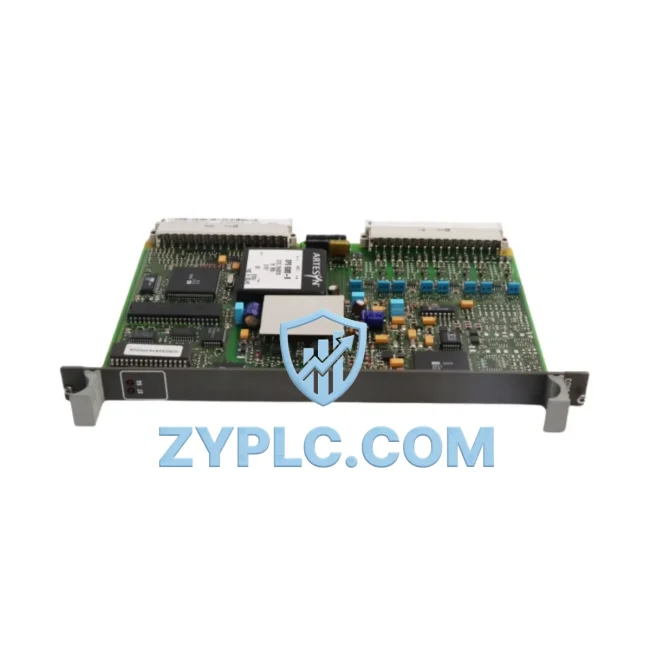

The ABB 81AA03AA-E is a high-performance digital output module engineered for the ABB AC31 programmable logic controller series. Designed to meet the demanding requirements of modern industrial automation, this module delivers precise, low-latency output switching that directly contributes to reduced energy consumption, improved equipment utilization, and optimized production line throughput. Whether deployed in discrete manufacturing, process control, or building automation environments, the 81AA03AA-E enables engineers to achieve tighter control loops, minimize idle-state power draw, and extend the operational lifespan of connected actuators and drive systems.

In energy-intensive production environments, every millisecond of unnecessary actuator activation translates into measurable energy waste. The 81AA03AA-E addresses this challenge by providing reliable, high-speed digital output signals that allow the AC31 controller to execute precise on/off commands with minimal switching delay. When integrated with ABB’s AC31 CPU modules such as the 07KT98 or 07KT97, the output module participates in a tightly synchronized control architecture that eliminates redundant switching cycles and reduces the thermal load on downstream components including contactors, solenoid valves, and motor starters.

From an energy monitoring perspective, the 81AA03AA-E works in concert with power measurement and data acquisition components within the AC31 ecosystem. When paired with analog input modules such as the 07AI91 for current and voltage signal acquisition, plant engineers can establish closed-loop energy feedback systems that dynamically adjust output activation patterns based on real-time load conditions. This approach supports predictive energy management strategies that go beyond simple on/off scheduling, enabling facilities to align equipment operation with peak efficiency windows and avoid unnecessary energy expenditure during low-demand periods.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 81AA03AA-E is most effective when deployed as part of a fully integrated AC31 automation architecture. In a typical energy-optimized control cabinet, the module interfaces directly with the AC31 backplane alongside digital input modules such as the 07DI92, which captures field-level feedback signals from limit switches, proximity sensors, and encoder outputs. This bidirectional signal flow allows the CPU to make real-time decisions about output activation, preventing unnecessary energization of actuators when process conditions do not require it.

On the drive side, the 81AA03AA-E output signals are frequently used to command ABB ACS series variable frequency drives, including the ACS355 and ACS580, which regulate motor speed and torque in response to PLC commands. By coordinating output module switching with drive ramp-up and ramp-down profiles, engineers can eliminate current spikes during motor starts, reduce mechanical stress on couplings and gearboxes, and achieve measurable reductions in peak demand charges on the facility’s electrical bill.

For applications requiring analog output control — such as proportional valve positioning or variable setpoint transmission to drives — the 07AO91 analog output module complements the 81AA03AA-E by providing continuous signal modulation alongside discrete switching. Together, these modules form a hybrid control layer that supports both bang-bang and proportional control strategies within a single AC31 rack configuration.

Communication and data transparency are equally important in energy-aware architectures. The AC31 system supports PROFIBUS DP via interface modules such as the 07KP90, enabling the 81AA03AA-E’s output states to be monitored and logged by supervisory SCADA systems or energy management platforms. This connectivity allows maintenance teams to correlate output activation patterns with energy consumption data, identify inefficient switching sequences, and implement corrective logic changes through the AC31 programming environment without physical intervention on the production floor.

For human-machine interface integration, the AC31 platform connects to ABB CP600 series HMI panels, which can display real-time output module status, energy consumption trends, and alarm conditions. Operators gain immediate visibility into which output channels are active, how long they have been energized, and whether any channels are exhibiting abnormal switching behavior that could indicate a failing actuator or wiring fault — all of which contribute to proactive maintenance and reduced unplanned downtime.

Power Optimization in Real Production Lines

In automotive assembly lines, the 81AA03AA-E is commonly used to control pneumatic cylinder solenoids, conveyor belt clutches, and part-presence confirmation outputs. By programming the AC31 CPU to deactivate output channels during line stoppages and shift changeovers, facilities have reported reductions in compressed air consumption of 15–25%, directly lowering the energy load on compressor systems that represent a significant portion of factory utility costs.

In food and beverage processing, where hygiene-rated actuators must be cycled frequently during cleaning-in-place (CIP) sequences, the 81AA03AA-E’s reliable switching characteristics ensure that valve open/close commands are executed with consistent timing. This precision prevents over-flushing — a common source of water and chemical waste — and ensures that CIP cycles complete within their designed time windows, maintaining production line throughput without extending energy-intensive cleaning periods.

Predictive maintenance integration is another key benefit. By monitoring the cumulative switching count of each output channel through the AC31 program, maintenance engineers can establish service intervals for relays, contactors, and solenoid valves based on actual usage rather than fixed calendar schedules. This data-driven approach reduces unnecessary component replacements, lowers spare parts inventory costs, and ensures that maintenance activities are scheduled during planned downtime windows rather than in response to unexpected failures.

All units supplied by ZYPLC undergo functional output testing prior to shipment, verifying channel-by-channel switching performance under load conditions representative of typical industrial applications. Stock is maintained to support rapid deployment requirements, with standard orders shipping within 1–3 business days. Each 81AA03AA-E is covered by a 12-month warranty from the date of delivery, providing procurement teams with the confidence to specify this module for both new installations and replacement projects.

Energy Optimization FAQ

Q1: How does the ABB 81AA03AA-E contribute to energy savings in an AC31 automation system?
The 81AA03AA-E enables the AC31 CPU to execute precise, cycle-synchronized output switching that eliminates unnecessary actuator energization. When combined with real-time feedback from input modules and drive status signals, the controller can deactivate outputs during idle periods, reducing standby power consumption across the entire control system.

Q2: Is the 81AA03AA-E compatible with ABB ACS series variable frequency drives?
Yes. The module’s digital output signals are fully compatible with the discrete input interfaces of ABB ACS355, ACS580, and ACS880 drives. Output channels can be configured to issue run/stop, direction, and fault reset commands, enabling coordinated motor control that supports energy-efficient ramp profiles and eliminates unnecessary motor starts.

Q3: Can the 81AA03AA-E replace an existing AC31 output module without reprogramming the PLC?
In most cases, yes. The 81AA03AA-E is a direct form-fit-function replacement for compatible AC31 output module positions. Channel mapping and I/O addressing are preserved, allowing the module to be swapped during a planned maintenance window without modifying the existing AC31 application program. ZYPLC recommends verifying the rack slot configuration and firmware revision of the host CPU before installation.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 81AA03AA-E supplied by ZYPLC is functionally tested prior to dispatch, with each output channel verified for correct switching operation under representative load conditions. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair support with a target response time of 5 business days.
