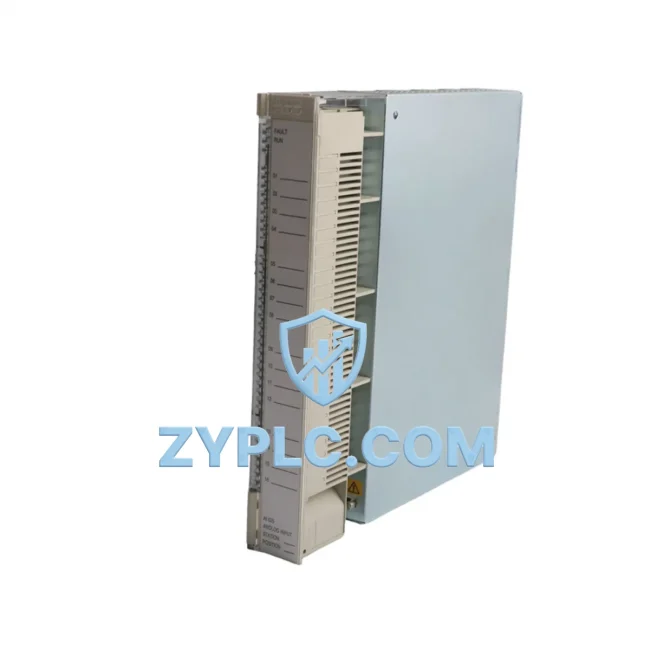

ABB AI625 3BHT300036R1 System-Ready Analog Input for S800 Architecture

ABB AI625 3BHT300036R1 System-Ready Analog Input for S800 Control Architecture

The ABB AI625 3BHT300036R1 is a high-precision analog input module engineered for seamless integration within the ABB S800 I/O distributed control architecture. Designed to operate as a core signal acquisition component in multi-layer industrial automation systems, this module delivers reliable, noise-immune analog signal processing across demanding process environments including power generation, petrochemical refining, water treatment, metallurgy, and continuous manufacturing lines. Its role within the S800 I/O platform extends beyond simple signal conversion — it serves as a critical node in the upstream data flow that feeds the control layer, enabling real-time process visibility and closed-loop regulation at scale.

In a fully realized S800-based control system, the AI625 3BHT300036R1 occupies the I/O layer, receiving field-level analog signals — typically 4–20 mA current loops or voltage inputs — and converting them into digital values that are passed upward through the backplane bus to the CPU module. This architecture ensures that the control processor, such as the ABB PM865 or PM891 processor module, receives clean, conditioned data without the latency or noise artifacts that can compromise control loop stability. The module’s integration with the S800 backplane, including the TB820 ModuleBus Modem or the CI854 PROFIBUS DP communication interface, ensures that signal data is transmitted with deterministic timing — a requirement for high-speed regulatory control in process industries.

System architects deploying the AI625 3BHT300036R1 benefit from its compatibility with the broader S800 I/O ecosystem. When paired with digital output modules such as the DO810 or DO820, and analog output modules such as the AO810V2, the AI625 forms part of a balanced I/O subsystem capable of handling both measurement and actuation within the same rack. The S800 backplane, typically the BC810 or BC820 baseplate, provides the physical and electrical foundation for this modular arrangement, allowing engineers to configure I/O density according to process requirements without compromising signal integrity or communication bandwidth.

From a system redundancy perspective, the AI625 3BHT300036R1 supports deployment in redundant I/O configurations when used alongside the appropriate redundancy modules and communication paths. In critical applications such as turbine control, boiler management, or safety-instrumented systems operating under IEC 61511 frameworks, redundant analog input channels ensure that a single module failure does not interrupt process monitoring. This capability is further enhanced when the S800 I/O system is connected to an ABB System 800xA distributed control platform, where the AI625’s data feeds into historian and alarm management layers that provide operators with continuous process awareness.

The module’s electrical design accommodates a wide range of field instrument types, making it suitable for integration with temperature transmitters, pressure transducers, flow meters, and level sensors commonly found in process plants. Its galvanic isolation between field and system sides protects both the module and the control network from ground loops and transient voltage spikes — a common challenge in industrial environments where long cable runs and mixed grounding systems are the norm. This isolation characteristic also simplifies compliance with EMC standards applicable to industrial control equipment.

For system integrators and maintenance engineers, the AI625 3BHT300036R1 offers straightforward commissioning through ABB’s Control Builder engineering environment. Module parameterization, channel configuration, and diagnostic readback can be performed online without interrupting system operation, reducing engineering time during initial startup and simplifying fault isolation during maintenance windows. The module’s self-diagnostic capabilities report channel-level faults — including open-circuit and out-of-range conditions — directly to the control system, enabling predictive maintenance strategies that reduce unplanned downtime.

Long-term supply continuity is a key consideration for plant operators managing multi-year maintenance contracts. The AI625 3BHT300036R1 is stocked and available for immediate dispatch, supporting both new system builds and spare parts programs for existing S800 installations. All units are supplied with a 12-Month Warranty, covering manufacturing defects and ensuring that replacement modules meet the same performance specifications as the original equipment. This warranty commitment, combined with Contextual Integration support — meaning the module is verified for compatibility within the S800 I/O architecture context — gives procurement and engineering teams confidence in long-term system supportability.

Architecture Specification Table

Coordinated Control System Design

The AI625 3BHT300036R1 achieves its full operational value when deployed as part of a coordinated S800 I/O system rather than as a standalone component. In a typical process control cabinet, the module occupies one or more slots on the BC820 baseplate, sharing the ModuleBus with adjacent I/O modules. Analog output functions are handled by the AO810V2 analog output module, which receives setpoint commands from the same CPU that processes the AI625’s input data — creating a tightly coupled measurement-and-control loop with minimal latency.

Digital signal handling within the same cabinet is typically managed by the DI810 digital input module and the DO810 digital output module, which monitor discrete field devices such as valve position switches, motor run signals, and interlock contacts. The combination of analog and digital I/O on a shared backplane allows the control system to manage both continuous regulatory control and discrete sequential logic from a single processor, reducing cabinet footprint and simplifying network topology.

Communication between the S800 I/O station and the main control network is handled by the CI854 PROFIBUS DP communication interface or the CI840A PROFINET interface, depending on the network protocol selected for the installation. These communication modules translate the ModuleBus data from the AI625 and its companion modules into standard industrial Ethernet or fieldbus frames, enabling integration with ABB System 800xA, Freelance, or third-party SCADA platforms. The TB820 ModuleBus Modem provides the physical layer connection between the communication interface and the I/O modules on the baseplate.

For power distribution within the control cabinet, the S800 I/O system relies on dedicated 24 VDC power supply units, often the ABB SD831 or SD832 power supply modules, which provide regulated power to the backplane and field instrument loops. Proper power architecture — including redundant power feeds for critical I/O stations — ensures that the AI625 and its companion modules maintain continuous operation even during single power supply failures. The SA811 surge arrester module is commonly installed at the field terminal interface to protect analog input channels from lightning-induced transients on long cable runs.

At the human-machine interface layer, operator workstations running ABB System 800xA or third-party HMI software display the real-time analog values acquired by the AI625, presented as trend displays, process graphics, and alarm lists. The seamless data path from field instrument through the AI625, across the ModuleBus, through the CI854 communication interface, and into the HMI server represents the complete signal chain that plant operators rely on for process visibility and control decision-making.

Application in Layered Automation Systems

In power generation applications, the AI625 3BHT300036R1 is deployed in boiler control systems, turbine governor loops, and generator excitation monitoring circuits, where accurate analog signal acquisition is essential for maintaining steam pressure, temperature, and electrical output within tight regulatory bands. The module’s 16-bit resolution supports the fine measurement granularity required for combustion optimization and heat rate improvement programs.

In petrochemical and refining environments, the AI625 handles analog inputs from pressure transmitters, temperature elements, and flow meters distributed across distillation columns, heat exchangers, and reactor vessels. Its galvanic isolation is particularly valuable in these environments, where ground potential differences between field instruments and control room equipment can introduce measurement errors that compromise product quality and process safety.

In water and wastewater treatment facilities, the module monitors flow rates, pH levels, dissolved oxygen concentrations, and pump discharge pressures across multiple treatment stages. Its compatibility with the S800 I/O platform’s redundancy options supports the high-availability requirements of municipal water supply systems, where control system failures can have direct public health consequences.

In metallurgical and mining operations, the AI625 is used in furnace temperature control, conveyor load monitoring, and flotation cell level measurement applications. The module’s robust operating temperature range and EMC immunity make it suitable for the electrically noisy environments typical of smelting and mineral processing facilities.

In packaging and discrete manufacturing lines, the AI625 supports tension control, web guiding, and fill-level measurement applications where analog feedback from load cells, ultrasonic sensors, and vision systems must be processed with high speed and accuracy to maintain production quality at line speed.

Architecture Engineering FAQ

Q1: Is the AI625 3BHT300036R1 compatible with both ABB AC800M and System 800xA control platforms?
Yes. The AI625 is a native S800 I/O module designed for use with the ABB AC800M controller family, including the PM865 and PM891 processor modules. When the AC800M controller is integrated into an ABB System 800xA environment, the AI625’s data is automatically available to the 800xA operator workplace, historian, and alarm management functions through the standard OPC and internal communication layers. No additional hardware adapters are required for this integration.

Q2: Can the AI625 be installed in an existing S800 I/O station alongside older generation S800 modules without requiring a full system upgrade?
In most cases, yes. The S800 I/O platform is designed for backward compatibility within the same baseplate and ModuleBus architecture. However, it is recommended to verify firmware compatibility between the AI625 and the installed CI communication interface module, as older CI firmware versions may require an update to correctly enumerate newer I/O module types. ABB’s Control Builder engineering tool provides module compatibility checking during project configuration, which should be performed before physical installation in a live system.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration questions?
The 12-Month Warranty covers manufacturing defects in materials and workmanship for the AI625 3BHT300036R1 module. Modules that exhibit functional failures under normal operating conditions within the warranty period are eligible for replacement. For system integration and architecture compatibility questions — including channel configuration, backplane slot assignment, and communication interface parameterization — technical support is available through ZYPLC’s engineering team. Contextual Integration support means that our team can assist with verifying the module’s role within your specific control system architecture, not just confirming the module’s standalone specifications.
