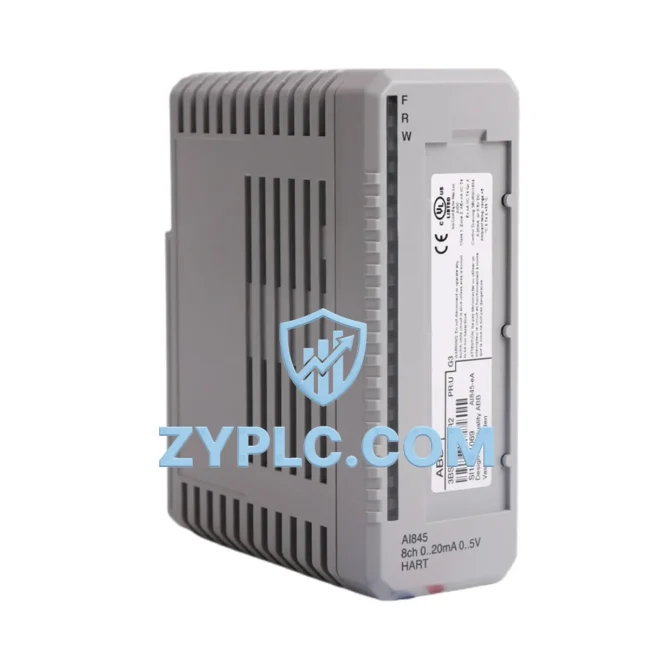

ABB AI845-EA 3BSE023675R2 Energy-Saving Analog Input Module

ABB AI845-EA 3BSE023675R2 Energy-Saving Analog Input Module for Optimized AC800M Automation

The ABB AI845-EA (3BSE023675R2) is a high-precision analog input module engineered for deployment within ABB’s AC800M Distributed Control System (DCS) architecture. Designed to meet the rigorous demands of modern industrial energy optimization, this module serves as a critical data acquisition node — capturing real-time process variables such as temperature, pressure, flow rate, and electrical current with exceptional accuracy. By delivering clean, high-resolution analog signals directly to the AC800M controller, the AI845-EA enables plant operators to make data-driven decisions that reduce unnecessary energy consumption, minimize equipment wear, and improve overall production line throughput.

In energy-intensive industries — including chemical processing, oil and gas, power generation, pulp and paper, and water treatment — the ability to monitor process variables at the field level with minimal latency is fundamental to achieving efficiency targets. The AI845-EA integrates seamlessly into the AC800M I/O bus, working alongside modules such as the AO845A (3BSE023675R1) analog output module and the DI885 (3BSE020508R1) digital input module to form a complete field I/O layer. Together, these modules provide the AC800M controller with the full-spectrum process visibility needed to execute advanced control strategies, including cascade control, feedforward compensation, and model predictive control (MPC) — all of which directly contribute to measurable reductions in energy waste.

Efficiency Performance Table

Energy-Aware Automation Architecture

The AI845-EA does not operate in isolation — its true value is realized when it functions as part of a tightly integrated, energy-aware automation architecture. Within a typical AC800M-based control system, the AI845-EA works in concert with the PM866 (3BSE050198R1) AC800M processor module, which executes the control logic that translates analog field data into precise actuator commands. The processor communicates with the field layer through the TB820V2 (3BSC950107R1) ModuleBus optical interface, ensuring high-speed, noise-immune data transmission across the I/O network — a critical factor in maintaining signal integrity in electrically noisy industrial environments.

On the drive side, the AI845-EA’s analog outputs — when paired with the AO845A module — can deliver 4–20 mA setpoint signals directly to ABB’s ACS880 series industrial drives. These variable frequency drives (VFDs) regulate motor speed in response to real-time process demand, eliminating the energy losses associated with throttling valves or fixed-speed motor operation. In pump and fan applications, reducing motor speed by just 20% can cut energy consumption by nearly 50% — a direct result of the cubic relationship between speed and power in centrifugal loads. The AI845-EA’s role in this loop is to ensure that the process variable feedback reaching the AC800M controller is accurate, stable, and free of drift, so that the drive receives only the setpoint corrections it truly needs.

For facilities implementing energy sub-metering and power quality monitoring, the AI845-EA can be configured to accept current transformer (CT) and voltage transformer (VT) signals from power monitoring devices such as the ABB M2M DIN energy meter series. This allows the AC800M to aggregate energy consumption data at the equipment level, enabling operators to identify inefficient machines, detect abnormal load profiles, and benchmark energy performance against production output — all within the same control platform. The CI854B (3BSE030220R1) PROFIBUS DP communication interface module further extends this capability by connecting the AC800M to third-party energy analyzers, smart meters, and motor control centers (MCCs) over a standardized fieldbus network.

At the human-machine interface level, operators interact with the energy data collected by the AI845-EA through ABB’s System 800xA distributed control and information platform. Trend displays, energy dashboards, and alarm management screens give production teams the visibility they need to act on inefficiencies before they escalate into costly downtime events. The PP886 (3BSE069272R1) operator panel, commonly deployed alongside AC800M systems, provides local access to key process variables and energy KPIs directly on the plant floor.

Power Optimization in Real Production Lines

In real-world production environments, the AI845-EA delivers measurable impact across several dimensions of energy and operational efficiency. Consider a continuous process plant where multiple heat exchangers, compressors, and pumping systems operate in parallel. Without accurate analog feedback from the field, the control system must rely on conservative, fixed setpoints that keep equipment running at higher-than-necessary capacity to ensure process stability. This over-control translates directly into wasted electrical energy, accelerated mechanical wear, and shortened equipment service life.

By deploying the AI845-EA at each critical measurement point — monitoring outlet temperatures, differential pressures, and flow rates — the AC800M controller gains the real-time visibility needed to implement demand-responsive control. Pump speeds are modulated by the ACS880 VFD only as much as the process requires. Compressor staging is optimized based on actual downstream pressure readings rather than worst-case assumptions. Heat exchanger bypass valves are positioned with precision, reducing thermal energy losses. The cumulative effect across a mid-sized process plant can represent a reduction of 8–15% in total electrical energy consumption — a significant figure when measured against annual utility costs.

From a maintenance perspective, the AI845-EA supports predictive maintenance strategies by providing the high-quality signal data that condition monitoring algorithms depend on. Gradual sensor drift, process anomalies, and equipment degradation patterns become visible in the analog trends long before they manifest as production failures. Maintenance teams can schedule interventions during planned downtime windows rather than responding reactively to unplanned breakdowns — reducing both maintenance costs and the energy penalties associated with emergency restarts and production catch-up cycles.

Every unit supplied by ZYPLC undergoes a rigorous outgoing quality inspection process, including functional verification of all analog channels, signal accuracy testing across the full input range, and communication integrity checks on the S800 I/O bus interface. This ensures that the AI845-EA arrives at your facility ready for immediate commissioning, with no hidden defects that could compromise measurement accuracy or system stability. All units are covered by a 12-month warranty, and our inventory is maintained to support rapid dispatch for both planned procurement and urgent replacement requirements.

Energy Optimization FAQ

Q1: How does the AI845-EA 3BSE023675R2 contribute to energy savings in a DCS-controlled plant?
The AI845-EA provides the AC800M controller with accurate, high-resolution analog process data — the foundation of any effective energy optimization strategy. By ensuring that the controller receives precise feedback on temperatures, pressures, flows, and electrical parameters, it enables tighter control loops that eliminate over-control, reduce setpoint deviations, and allow variable-speed drives like the ACS880 to operate at the minimum energy level required to meet process targets. The result is a measurable reduction in electrical energy consumption without compromising process quality or throughput.

Q2: Is the AI845-EA compatible with existing AC800M and System 800xA installations?
Yes. The AI845-EA is fully compatible with ABB’s AC800M controller family and integrates directly into the S800 I/O bus without requiring additional interface hardware. It is supported by ABB’s Control Builder M engineering tool and is recognized natively within System 800xA, allowing it to be added to existing configurations with minimal engineering effort. Compatibility with PROFIBUS DP networks via the CI854B interface module also allows integration with third-party systems where required.

Q3: What is the recommended replacement or upgrade path if my existing analog input module has failed?
The AI845-EA 3BSE023675R2 is a direct replacement for earlier AI845 variants within the S800 I/O family. Before installation, verify the firmware version of your AC800M processor module (PM866 or equivalent) to ensure compatibility with the EA hardware revision. ZYPLC’s technical team can assist with compatibility verification and provide guidance on configuration parameter migration to minimize commissioning time during replacement.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All AI845-EA units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes a multi-stage outgoing inspection that includes analog channel functional testing, signal accuracy verification across the 4–20 mA and 0–10 V input ranges, S800 I/O bus communication testing, and visual inspection for physical integrity. Units that do not meet our quality standards are quarantined and not dispatched. In the event of a warranty claim, ZYPLC provides a replacement unit or repair service with priority handling to minimize your production downtime.
