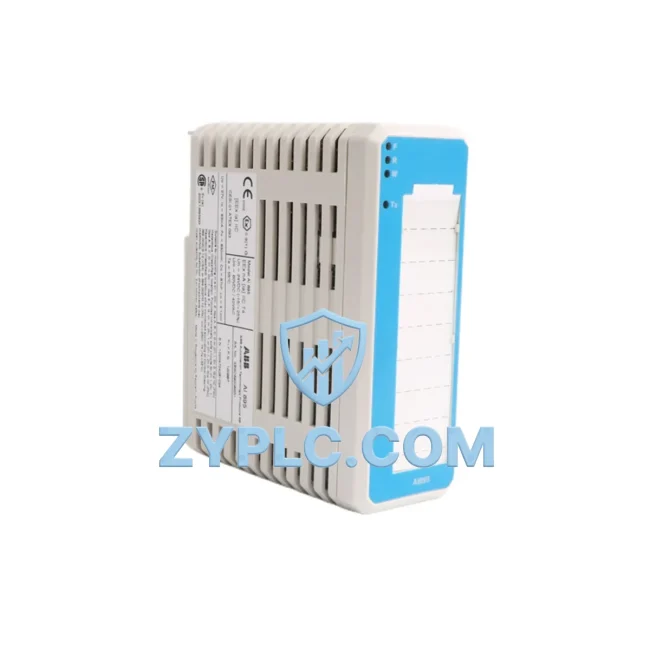

ABB AI895 3BSC690086R1 Energy-Saving Analog Input Module: Precision Energy Control for S800 I/O Automation

The ABB AI895 (3BSC690086R1) is a high-density analog input module engineered for the S800 I/O system, designed to work seamlessly within ABB’s AC 800M Distributed Control System (DCS) architecture. In modern industrial facilities where energy accountability is no longer optional, the AI895 plays a foundational role — it is the sensing layer that makes intelligent energy management possible. By delivering accurate, real-time analog signal acquisition from field instruments such as pressure transmitters, temperature sensors, flow meters, and power transducers, the AI895 enables control systems to respond dynamically to actual process conditions rather than operating on fixed, energy-wasteful schedules.

Every percentage point of efficiency gained in a production line begins with accurate data. The AI895 provides up to 8 channels of configurable analog input, supporting 4–20 mA and voltage signal types, with high-resolution conversion that minimizes signal drift and measurement error. When paired with the ABB AC 800M controller — such as the PM866 or PM891 processor modules — the AI895 feeds precise process variables into the control loop, allowing the DCS to make real-time adjustments that reduce overconsumption of compressed air, steam, cooling water, and electrical power.

Efficiency Performance Table

Energy-Aware Automation Architecture

The AI895 3BSC690086R1 does not operate in isolation — its value is multiplied when integrated into a complete energy-aware automation architecture. In a typical S800 I/O cabinet, the AI895 sits alongside digital output modules such as the DO810 or DO820, which execute switching commands based on the analog values the AI895 reports. When a power transducer connected to the AI895 detects that a motor is drawing more current than its setpoint, the AC 800M controller can immediately issue a speed reduction command to an ABB ACS880 variable frequency drive (VFD), trimming motor speed and cutting energy consumption without interrupting production.

For multi-axis motion control applications, the AI895 works in concert with ABB servo drive systems and the S800 I/O bus to monitor torque feedback and thermal load on servo motors. The AI module’s high-resolution conversion ensures that even subtle changes in motor load — often the earliest indicator of mechanical wear — are captured and logged. This data feeds into predictive maintenance routines running on the AC 800M, reducing unplanned downtime and the energy spikes associated with cold-start restarts after equipment failure.

In energy monitoring panels, the AI895 is frequently deployed alongside the ABB M2M562 or similar power measurement modules to aggregate consumption data from multiple production zones. The collected analog signals — representing active power, reactive power, and power factor — are processed by the AC 800M and visualized on an ABB CP600 HMI panel, giving operators a live energy dashboard without requiring a separate SCADA layer. Communication to the plant-level energy management system is handled via PROFIBUS DP or Modbus TCP through the S800 I/O communication interface modules such as the CI854 or CI857, ensuring that energy data flows seamlessly from field level to enterprise level.

The AI895 is also compatible with ABB’s 800xA Extended Automation platform, where it integrates with the Asset Optimization and Energy Management libraries. In this configuration, the module’s analog inputs can be mapped directly to energy KPI calculations, enabling automatic generation of shift-level and daily energy consumption reports — a capability that supports ISO 50001 energy management compliance without additional hardware investment.

Power Optimization in Real Production Lines

Consider a chemical processing plant running continuous batch operations. Without accurate analog feedback, the DCS must rely on conservative, fixed-parameter control strategies that inevitably result in over-pressurization, over-heating, or over-pumping — all of which waste energy. With the AI895 installed and calibrated, the AC 800M receives live readings from pressure and flow transmitters at every critical node. The controller can then implement cascade control loops that modulate pump speeds via ACS880 drives, valve positions via electro-pneumatic positioners, and heater outputs via thyristor power controllers — all in real time, all based on actual process demand.

The result is a measurable reduction in specific energy consumption per unit of output. Plants that have migrated from fixed-setpoint control to closed-loop analog feedback using S800 I/O modules like the AI895 have reported energy savings in the range of 8–18% on motor-driven systems alone. Beyond energy, the precision of the AI895’s signal acquisition reduces process variability, which translates to fewer off-spec batches, less rework, and lower raw material waste — compounding the economic benefit of the efficiency upgrade.

For production lines with variable demand profiles — such as automotive assembly or food and beverage processing — the AI895 enables the AC 800M to implement time-of-use energy strategies. By monitoring real-time load data, the controller can shift non-critical energy loads to off-peak periods, reducing peak demand charges and improving the facility’s overall power factor. This level of demand-side management is only possible when the control system has access to accurate, high-resolution analog data — exactly what the AI895 3BSC690086R1 is designed to provide.

All units supplied by ZYPLC are sourced from verified inventory channels, undergo full functional testing prior to shipment, and are covered by a 12-month warranty. Stock availability is maintained to support urgent replacement and system expansion requirements.

Energy Optimization FAQ

Q1: How does the AI895 3BSC690086R1 contribute to energy savings in an S800 I/O system?
The AI895 provides high-accuracy analog signal acquisition that enables the AC 800M DCS to implement closed-loop control strategies. By feeding precise real-time data — such as motor current, process pressure, or flow rate — into the control loop, the system can dynamically adjust drive speeds, valve positions, and output setpoints to match actual demand, eliminating the energy waste inherent in fixed-parameter control.

Q2: Is the AI895 compatible with ABB’s 800xA system and third-party SCADA platforms?
Yes. The AI895 is fully compatible with ABB’s 800xA Extended Automation platform and integrates with the S800 I/O bus via standard communication interface modules such as the CI854 (PROFIBUS DP) or CI857 (PROFIBUS DP Redundant). For third-party SCADA integration, Modbus TCP or OPC DA/UA connectivity can be configured through the AC 800M communication stack.

Q3: What is the recommended replacement or upgrade path if the AI895 is end-of-life in my system?
The AI895 3BSC690086R1 remains an active S800 I/O catalog item. For systems requiring higher channel density or HART communication support, the AI893 or AI895A variants may be evaluated as functional alternatives within the same S800 I/O backplane. ZYPLC can advise on compatibility and provide tested replacement units with full documentation.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every AI895 unit supplied by ZYPLC undergoes power-on functional testing, channel signal verification, and communication bus integrity checks before dispatch. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Expedited replacement is available for critical production environments to minimize downtime impact.
