ABB CBO10-P 3BDH000733R1 System-Ready Binary Output for Freelance DCS

ABB CBO10-P 3BDH000733R1 System-Ready Binary Output for Freelance DCS Architecture

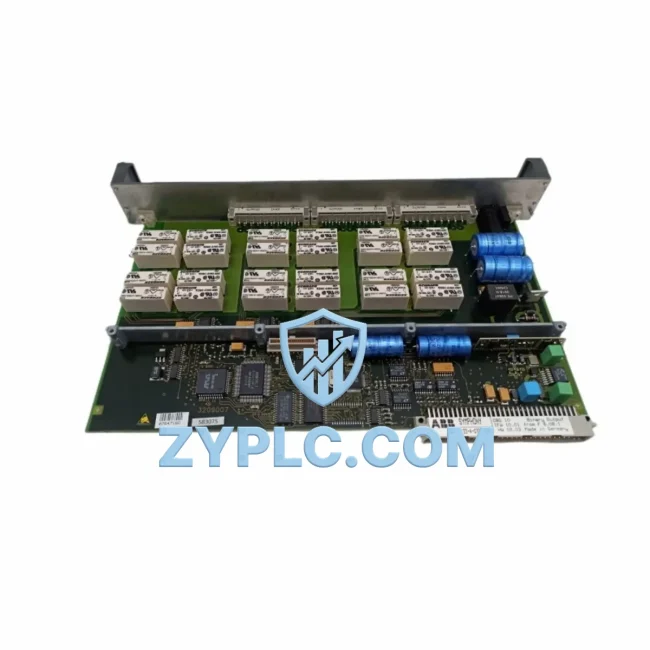

The ABB CBO10-P (part number 3BDH000733R1) is a dedicated binary output module engineered for deployment within the ABB Freelance distributed control system (DCS) platform. Rather than functioning as a standalone component, the CBO10-P is designed to operate as an integral node within a layered automation architecture — coordinating signal execution between the control layer, field device layer, and I/O bus infrastructure. Its role is to translate digital commands issued by the Freelance controller into discrete switching actions at the field level, enabling precise, deterministic control of actuators, solenoid valves, motor starters, and relay-driven equipment across industrial processes.

In modern DCS deployments, binary output modules like the CBO10-P are not evaluated in isolation. Their value is measured by how seamlessly they integrate into the surrounding system architecture — including controller redundancy, I/O bus topology, power distribution design, and field wiring strategy. The CBO10-P is built to meet these demands, offering reliable channel isolation, consistent switching performance, and compatibility with the Freelance system’s modular expansion framework.

Architecture Specification Table

Coordinated Control System Design

The CBO10-P binary output module achieves its full potential when deployed as part of a coordinated Freelance DCS system. At the controller level, the ABB AC700F or AC900F CPU modules serve as the processing core, executing control logic and issuing output commands to field devices via the I/O bus. The CBO10-P receives these commands and converts them into switching signals at the field terminal level.

For redundant controller configurations, the ABB AC700F Redundant Controller pair ensures that output commands are maintained without interruption even during a primary controller failure. The CBO10-P’s deterministic response time supports this redundancy model by ensuring that switching actions are executed within the required cycle time of the control loop.

On the input side, the ABB CBI10-P binary input module works in parallel with the CBO10-P to provide a complete discrete I/O solution — capturing field status signals while the CBO10-P drives actuator commands. For analog process variables, the ABB CAI10-P analog input module and CAO10-P analog output module complement the binary I/O layer, enabling mixed-signal architectures within the same Freelance rack.

Power integrity is maintained through the ABB Freelance system power supply modules, which distribute regulated 24 VDC across the backplane to all installed I/O modules including the CBO10-P. In high-availability installations, redundant power supply configurations prevent single-point power failures from affecting output channel availability.

Communication between the Freelance controller and supervisory systems is handled through ABB Freelance communication gateway modules supporting PROFIBUS DP, Modbus TCP, or HART protocols, depending on the network topology. The CBO10-P’s output status is reflected in real time on the ABB CP600 or CP635 HMI panels, providing operators with live feedback on actuator states and alarm conditions.

For terminal wiring and field connection, ABB Freelance terminal base units and marshalling modules provide organized, labeled connection points for each output channel, reducing wiring errors during commissioning and simplifying maintenance during the operational lifecycle of the plant.

Application in Layered Automation Systems

The ABB CBO10-P 3BDH000733R1 is suited for deployment across a wide range of industrial sectors where reliable discrete output control is essential to process integrity.

In power generation and electrical substation automation, the CBO10-P drives circuit breaker trip and close commands, transformer tap changer controls, and protection relay outputs — all within IEC 61850-compatible DCS architectures. Its channel isolation prevents ground loop interference in high-voltage environments.

In petrochemical and refinery process control, the module controls solenoid-operated valves, emergency shutdown (ESD) actuators, and pump motor starters. Its deterministic switching behavior is critical in safety-instrumented systems (SIS) where output response time directly affects process safety integrity.

In water and wastewater treatment plants, the CBO10-P manages pump sequencing, valve positioning, and dosing system activation across distributed pump stations. Its compatibility with the Freelance DCS platform allows centralized SCADA supervision of geographically dispersed field assets.

In mining and mineral processing, the module controls conveyor belt drives, crusher motor starters, and dust suppression systems. The rugged design and wide operating temperature range make it suitable for harsh industrial environments with high vibration and dust exposure.

In pharmaceutical and food processing, the CBO10-P supports batch process control, clean-in-place (CIP) valve sequencing, and filling line actuator control — all within GMP-compliant automation architectures where traceability and audit trail requirements demand reliable, documented output control.

Architecture Engineering FAQ

Q1: Is the ABB CBO10-P 3BDH000733R1 compatible with both AC700F and AC900F Freelance controllers?
Yes. The CBO10-P is designed for the ABB Freelance DCS platform and is compatible with both the AC700F and AC900F controller families. It communicates via the Freelance internal I/O bus and is recognized automatically during system configuration in the Freelance Engineering Tool (FET). No additional hardware adapters are required for integration into existing Freelance racks.

Q2: Can the CBO10-P be used in a redundant I/O architecture, and how does it behave during controller switchover?
The CBO10-P supports deployment in redundant Freelance DCS architectures. During a controller switchover event, the redundant controller assumes command authority and continues to drive output states through the I/O bus. Output channel states are maintained based on the last valid command from the active controller, ensuring that field devices do not experience unintended state changes during the switchover transition. Proper configuration of the redundancy parameters in FET is required to enable this behavior.

Q3: What does the 12-Month Warranty cover, and what support is available for installation and commissioning?
All ABB CBO10-P 3BDH000733R1 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment to verify output channel functionality and communication integrity. Technical support for installation, rack configuration, FET software setup, and system commissioning is available through our engineering team. Replacement units are dispatched promptly in the event of a warranty claim to minimize plant downtime.
