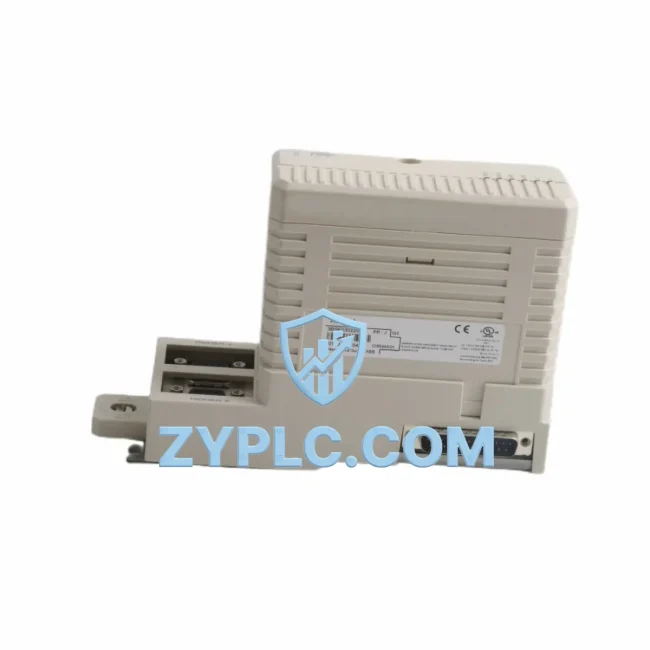

ABB CI854AK01 3BSE030220R1 System-Ready PROFINET Gateway for S800 I/O Architecture

ABB CI854AK01 3BSE030220R1: Industrial Data Link and Smart Factory PROFINET Connectivity for S800 I/O Architecture

In modern industrial automation, the ability to move data reliably across every layer of a control system — from field-level sensors to enterprise SCADA platforms — defines the operational efficiency of an entire plant. The ABB CI854AK01 (3BSE030220R1) is a high-performance PROFINET communication interface module engineered specifically for the ABB S800 I/O distributed I/O system, providing seamless protocol bridging between the S800 field bus and PROFINET IO networks. As factories evolve toward Industry 4.0 architectures, this module serves as a critical data link node, enabling real-time signal exchange, remote diagnostics, and transparent production visibility across layered automation systems.

The CI854AK01 integrates directly into the S800 I/O station, connecting the local I/O bus to a PROFINET IO controller — typically an ABB AC800M CPU module such as the PM864A or PM891B — without requiring additional protocol converters or external gateways. This native integration eliminates communication latency introduced by third-party middleware, ensuring that process values from analog input modules like the AI810 or digital output modules like the DO810 are delivered to the controller with deterministic cycle times. In high-speed process control applications such as chemical dosing, turbine regulation, or conveyor synchronization, this timing precision is non-negotiable.

Network Communication Table

Connected Automation Data Flow

Understanding the CI854AK01’s role requires viewing it within the full data flow of an industrial control architecture. At the field level, process signals are gathered by sensors — pressure transmitters, flow meters, temperature probes — and wired into ABB S800 I/O modules such as the AI810 (analog input), AO810 (analog output), DI810 (digital input), and DO810 (digital output). These modules are mounted on TB820 or TB840 ModuleBus base units, which form the physical backbone of the S800 I/O station.

The CI854AK01 sits at the top of this I/O station, acting as the communication head. It reads all process data from the connected S800 modules via the internal ModuleBus and transmits it upstream over PROFINET IO to the ABB AC800M controller. The AC800M — running ABB’s Control Builder Plus engineering environment — processes this data, executes control logic, and sends output commands back down through the same PROFINET link to the field devices. This bidirectional, real-time data path forms the core of the control loop.

At the network layer, the CI854AK01 connects to an industrial Ethernet switch — such as a Hirschmann SPIDER or Phoenix Contact FL SWITCH series — which aggregates multiple PROFINET segments and routes traffic to the AC800M controller and, where applicable, to an OPC UA gateway or SCADA server running ABB’s System 800xA platform. The 800xA SCADA system provides operators with real-time process visualization, alarm management, and historical trending, all fed by the live data stream originating from the CI854AK01-connected I/O stations.

For human-machine interface applications, ABB CP600 series HMI panels or third-party PROFINET-compatible HMIs can be integrated into the same network segment, giving local operators direct access to process values without routing through the central SCADA server. This distributed HMI architecture reduces network dependency and improves response time during local fault conditions.

In drive-intensive applications — such as pump stations, compressor control, or conveyor systems — ABB ACS880 or ACS580 variable frequency drives equipped with PROFINET adapter modules (such as the FENA-21) can be integrated into the same PROFINET network. The CI854AK01-connected I/O station monitors drive status signals (run/fault/speed feedback) while the AC800M controller issues speed references and start/stop commands, creating a tightly coordinated motion and process control loop.

For redundancy-critical applications, the CI854AK01 supports Media Redundancy Protocol (MRP), enabling ring topology configurations that provide automatic network failover in under 200 milliseconds. When combined with a redundant AC800M CPU pair (hot standby configuration using PM891B modules), the entire control system — from I/O communication to controller execution — achieves high availability suitable for continuous process industries such as oil and gas, power generation, and water treatment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, drives, and management systems operate in separate communication silos, preventing unified visibility and coordinated control. The CI854AK01 directly addresses this challenge by serving as the PROFINET bridge that connects the S800 I/O field layer to the broader plant network.

In legacy installations, S800 I/O stations may have been connected via older fieldbus protocols such as PROFIBUS DP or ABB’s proprietary Modulebus over optical fiber. Migrating these stations to PROFINET using the CI854AK01 — while retaining the existing S800 I/O hardware — provides a cost-effective modernization path. Engineers can upgrade the communication interface without replacing field wiring, I/O modules, or terminal blocks, dramatically reducing migration risk and downtime.

Protocol unification is another key benefit. In multi-vendor plant environments where Siemens S7 PLCs, Rockwell ControlLogix systems, and ABB AC800M controllers coexist, PROFINET provides a common network language. The CI854AK01 enables ABB S800 I/O stations to participate in PROFINET networks managed by any PROFINET IO controller, making it a versatile component in heterogeneous automation architectures.

Remote monitoring and diagnostics are significantly enhanced when the CI854AK01 is deployed. PROFINET’s built-in diagnostic capabilities allow the AC800M controller — and by extension the 800xA SCADA system — to detect module faults, communication interruptions, and I/O channel errors in real time. Maintenance teams receive alarm notifications before process disruptions occur, enabling predictive maintenance strategies that reduce unplanned downtime. In remote or unmanned installations such as pipeline pump stations or offshore platforms, this remote diagnostic capability is essential for safe and efficient operation.

Production line transparency is achieved through the CI854AK01’s ability to expose all S800 I/O data to higher-level systems via PROFINET. OEE (Overall Equipment Effectiveness) monitoring platforms, MES (Manufacturing Execution Systems), and ERP integrations can access real-time production counts, quality signals, and equipment status data — transforming raw field signals into actionable business intelligence. This end-to-end data transparency is the foundation of smart factory operations.

Industrial Connectivity FAQ

Q1: What PROFINET conformance class does the CI854AK01 support, and does it affect communication latency?
The CI854AK01 supports PROFINET IO RT (Real-Time) and IRT (Isochronous Real-Time) conformance classes. RT mode provides cycle times in the range of 1–512 ms, suitable for standard process control applications. IRT mode enables sub-millisecond cycle times for motion control and high-speed synchronization tasks. The appropriate conformance class is selected during PROFINET network configuration in the engineering tool (e.g., ABB Control Builder Plus or Siemens TIA Portal when used as an IO device). For most process industry applications, RT mode provides more than sufficient performance with negligible latency impact on control loop execution.

Q2: Is the CI854AK01 compatible with PROFINET controllers from vendors other than ABB, and what configuration is required?
Yes. The CI854AK01 is a standard PROFINET IO device and is compatible with any PROFINET IO controller that supports the GSDML (Generic Station Description Markup Language) device description file. The GSDML file for the CI854AK01 is available from ABB and must be imported into the engineering tool of the target controller (e.g., Siemens TIA Portal, Rockwell Studio 5000 with PROFINET add-on, or Schneider Unity Pro). Once imported, the I/O station appears as a standard PROFINET device and can be configured for slot/subslot I/O mapping. No special licensing or ABB-specific software is required on the controller side for basic PROFINET IO communication.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed?
Every CI854AK01 unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. This warranty covers hardware defects, communication failures, and component malfunctions under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including power-on self-test, PROFINET communication link establishment, and I/O channel integrity checks. Units that fail any test criterion are quarantined and not shipped. Replacement or repair is provided at no charge for warranty claims supported by documented fault evidence. For mission-critical applications, ZYPLC recommends maintaining a spare CI854AK01 unit on-site to minimize recovery time in the event of a hardware fault.

Q4: Can the CI854AK01 support network redundancy, and what topology is recommended for high-availability applications?
The CI854AK01 supports Media Redundancy Protocol (MRP) as an MRP client, enabling ring topology configurations with automatic failover. In a redundant ring, if a cable break or switch failure occurs, the network reconfigures within 200 ms (standard MRP) or faster with optimized MRP settings. For maximum availability, ZYPLC recommends combining the CI854AK01 with a redundant AC800M CPU pair (hot standby), redundant power supply modules (SD821 or SD822), and a managed industrial Ethernet switch with MRP manager capability. This architecture ensures that no single point of failure — at the network, controller, or power layer — can cause a complete system outage.
