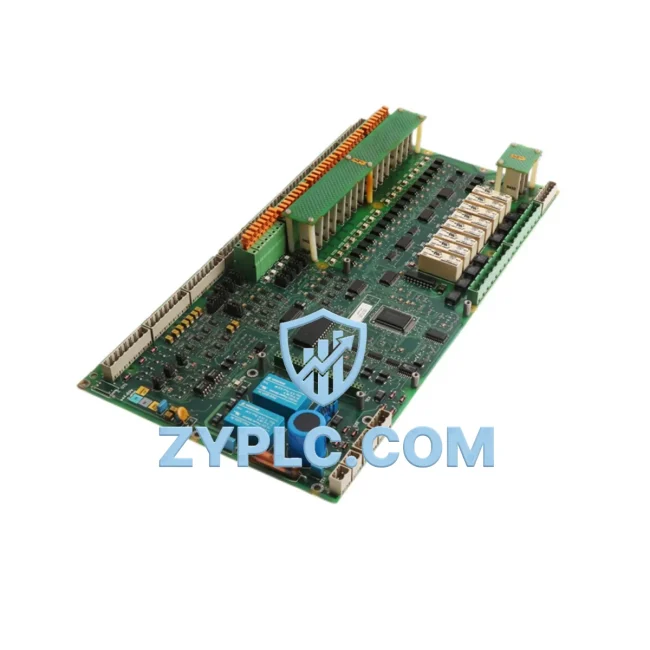

ABB DATX110 3ASC25H209 Energy-Saving I/O Board

ABB DATX110 3ASC25H209 Energy-Saving I/O Board for Optimized DAPU100 Automation

The ABB DATX110 3ASC25H209 is a high-performance I/O board module engineered for ABB’s DCS and AC drive control platforms, where precise signal acquisition and low-latency feedback are critical to achieving measurable energy savings on the production floor. As a core component within the DAPU100 3ASC25H204 processor unit ecosystem, the DATX110 serves as the interface layer between field-level sensors, actuators, and the central control logic — enabling real-time energy monitoring, adaptive motor control, and production line rhythm optimization without adding unnecessary overhead to the control loop.

In modern industrial facilities, energy waste rarely comes from a single source. It accumulates across poorly timed motor starts, undetected load imbalances, inefficient drive ramp profiles, and delayed feedback from field instruments. The DATX110 3ASC25H209 addresses these inefficiencies at the signal level, ensuring that every analog and digital input reaching the DAPU100 processor is clean, timestamped, and actionable — reducing the latency between a process deviation and the corrective response from the drive or controller.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DATX110 3ASC25H209 does not operate in isolation. Its value is realized when integrated into a well-designed energy-aware automation architecture. In a typical ABB-based drive and control system, the DATX110 works alongside the DAPU100 3ASC25H204 central processor unit, which handles the execution of control programs and communicates with higher-level SCADA or energy management systems via PROFIBUS-DP or Modbus RTU protocols.

On the drive side, the I/O board interfaces with ABB ACS880 variable frequency drives and ACS800 series inverters, passing speed reference signals, torque feedback, and fault status in real time. This tight integration allows the drive to respond to process load changes within milliseconds — a critical capability when optimizing the energy consumption of large pump motors, compressor drives, or conveyor systems where even a 5% reduction in average speed can translate to a 15% reduction in energy draw due to the affinity laws governing centrifugal loads.

For power quality monitoring, the DATX110’s analog input channels can be configured to receive signals from ABB M2M energy meters or third-party power transducers, feeding instantaneous kW, kVAR, and power factor data directly into the DAPU100 control loop. This enables demand-side management strategies — such as load shedding during peak tariff periods or staggered motor starts to avoid inrush current spikes — to be executed automatically without operator intervention.

The module also plays a role in coordinating I/O signals between the ABB AC500 PLC series and field-mounted instruments such as pressure transmitters, flow meters, and temperature sensors. When these signals are processed with the low-latency characteristics of the DATX110, the PLC can make faster decisions about valve positions, pump speeds, and heating element duty cycles — all of which directly affect the energy efficiency of the process. In multi-axis servo applications, the DATX110 can interface with ABB MicroFlex e150 servo drives, synchronizing position feedback and torque commands to minimize dwell time and improve production line throughput without increasing motor loading.

Communication integrity is maintained through the module’s compatibility with ABB’s DDCS fiber-optic communication protocol, which is used in high-noise industrial environments where copper-based signal transmission would introduce errors. Clean, error-free I/O data means fewer false alarms, fewer unnecessary drive trips, and less unplanned downtime — all of which contribute to higher overall equipment effectiveness (OEE) and lower energy cost per unit produced.

Power Optimization in Real Production Lines

Consider a cement plant running multiple large ball mill drives on ABB ACS800 inverters. Without accurate I/O feedback from a module like the DATX110 3ASC25H209, the drives operate on fixed speed references, consuming full power regardless of the actual grinding load. By integrating the DATX110 into the control architecture and feeding real-time load current and vibration signals back to the DAPU100 processor, the control system can dynamically adjust drive speed references to match the actual material throughput — reducing average motor loading by 10–20% and extending liner and bearing life simultaneously.

In a water treatment facility, the same principle applies to pump station control. The DATX110 enables the DAPU100 to receive flow and pressure signals from field transmitters and adjust the speed of ACS880-driven pump motors in real time, eliminating the energy waste associated with throttling valves and fixed-speed operation. Facilities that have implemented this type of closed-loop pump control report energy savings of 20–40% on their largest pumping loads, with payback periods of less than 18 months.

For discrete manufacturing lines — automotive assembly, electronics production, food and beverage packaging — the DATX110’s digital I/O channels provide the cycle time data needed to identify bottlenecks and balance line throughput. When the DAPU100 can see exactly how long each station takes to complete its operation, it can coordinate conveyor speeds, robot cycle times, and press dwell periods to eliminate idle energy consumption between production cycles. This type of production line rhythm optimization, enabled by accurate I/O data from the DATX110, typically reduces standby energy consumption by 8–15% without any changes to the production process itself.

Predictive maintenance is another area where the DATX110 delivers energy-related value. By monitoring vibration, temperature, and current signature data from motor-driven equipment, the DAPU100 can detect early signs of bearing wear, rotor imbalance, or winding degradation — conditions that cause motors to draw more current than necessary before they fail. Addressing these issues proactively, based on data collected through the DATX110, prevents the energy waste associated with degraded motor efficiency and avoids the much larger energy and production losses caused by unplanned downtime.

Every unit shipped from ZYPLC undergoes full functional testing prior to dispatch, and is backed by a 12-month warranty. In-stock availability ensures minimal lead time for maintenance replacements, keeping your production line running and your energy optimization strategy on track.

Energy Optimization FAQ

Q1: How does the DATX110 3ASC25H209 contribute to energy savings in a drive system?
The DATX110 provides the real-time I/O data that the DAPU100 processor needs to implement closed-loop speed and torque control on connected ABB drives. By enabling the drive to respond dynamically to actual process conditions rather than fixed setpoints, the system eliminates the energy waste associated with over-speed operation, unnecessary motor loading, and reactive power draw.

Q2: Is the DATX110 3ASC25H209 compatible with existing ABB DCS and PLC installations?
Yes. The DATX110 is designed as a direct replacement module for ABB DCS and drive control systems using the DAPU100 3ASC25H204 processor. It is also compatible with ABB AC500 PLC platforms and ACS-series drive systems. No hardware modifications are required for standard replacement installations.

Q3: What is the recommended replacement and testing procedure for the DATX110?
All DATX110 modules supplied by ZYPLC are tested under load conditions before shipment to verify analog and digital I/O channel performance, communication integrity, and power supply compatibility. Upon installation, we recommend performing a full I/O loop check against the existing control system configuration and verifying drive response to reference signals before returning the system to automatic operation.

Q4: What warranty and after-sales support does ZYPLC provide for the DATX110 3ASC25H209?
ZYPLC provides a 12-month warranty on all DATX110 3ASC25H209 modules, covering manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support installation, commissioning, and troubleshooting. For urgent replacement requirements, in-stock units can be dispatched within 24 hours of order confirmation.
