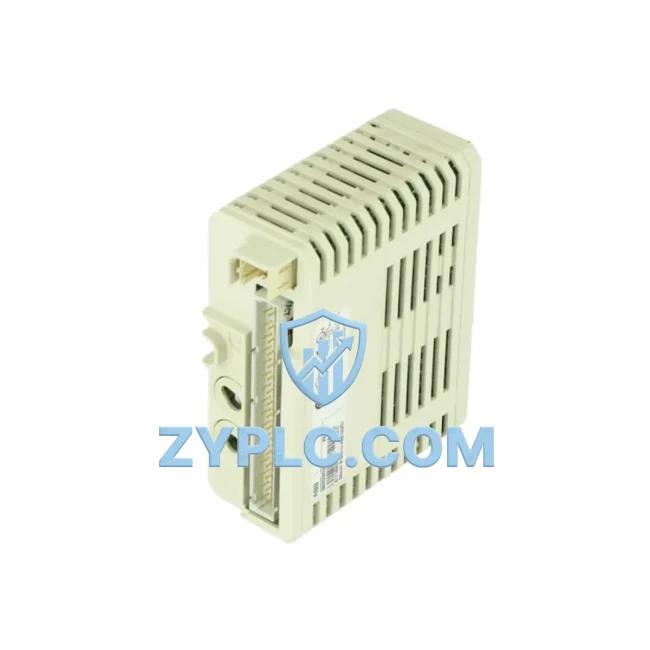

ABB DI810-EA 3BSE008508R2 Energy-Saving Digital Input Module

ABB DI810-EA 3BSE008508R2 Energy-Saving Digital Input Module for S800 I/O Automation

The ABB DI810-EA 3BSE008508R2 is a high-performance digital input module engineered for the ABB S800 I/O system, designed to work seamlessly within the AC 800M distributed control architecture. In modern industrial environments where energy efficiency and process reliability are paramount, this module plays a critical role in capturing real-time field signals — from motor status feedback, valve position indicators, and conveyor belt run/stop states — and delivering them with precision to the control layer. By ensuring that every digital signal is accurately read and transmitted without latency, the DI810-EA 3BSE008508R2 eliminates the blind spots that lead to unnecessary energy consumption, unplanned downtime, and degraded production throughput.

Factories running continuous production lines cannot afford signal ambiguity. When a motor drive such as the ABB ACS880 variable frequency drive receives incorrect or delayed feedback from field devices, it may continue operating at full load even when the downstream process has stalled — wasting kilowatts of energy per hour. The DI810-EA 3BSE008508R2 resolves this by providing 8 channels of reliable 24 VDC digital input acquisition, feeding accurate status data into the AC 800M controller so that the drive can be commanded to ramp down, enter standby, or stop entirely based on actual process conditions rather than assumptions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The DI810-EA 3BSE008508R2 sits at the foundation of an energy-aware control architecture. Within the S800 I/O station, it works alongside analog input modules such as the ABB AI810 3BSE008516R1 to provide a complete picture of both discrete and continuous process variables. The AC 800M controller — typically a PM860 3BSE018100R1 or PM864A 3BSE018161R1 processor module — aggregates these inputs and executes control logic that governs energy-intensive actuators and drives.

On the output side, digital output modules like the ABB DO810 3BSE008510R1 translate controller commands into switching actions for contactors, solenoid valves, and motor starters. When the DI810-EA confirms that a conveyor has reached its end position, the DO810 can immediately cut power to the belt motor, preventing the seconds of unnecessary run-on that accumulate into significant energy waste over a production shift. This tight input-output loop, orchestrated by the AC 800M, is the backbone of lean energy management in process industries.

For facilities that require power quality monitoring alongside discrete I/O, the DI810-EA 3BSE008508R2 integrates naturally with ABB’s energy measurement ecosystem. Power monitoring devices such as the ABB M2M DM-P energy meter or the ABB B23 series power analyzers can feed consumption data into the same AC 800M network via Modbus RTU or PROFIBUS DP communication modules, enabling the controller to correlate digital field states with real-time energy draw. When the DI810-EA reports that a pump is running but the flow sensor shows zero output — indicating a blocked line or cavitation — the controller can trigger an alarm and reduce drive speed via an ABB ACS580 drive, preventing both mechanical damage and energy waste simultaneously.

HMI visibility is equally important. Operators monitoring production from an ABB CP600 series panel or a SCADA workstation connected via OPC UA can view the live status of all 8 DI810-EA channels, enabling rapid identification of stuck contactors, welded relay contacts, or sensor failures that would otherwise cause motors to run unnecessarily. This level of transparency directly supports predictive maintenance strategies, reducing unplanned downtime and the energy spikes associated with emergency restarts.

In multi-axis servo applications, the DI810-EA 3BSE008508R2 provides the discrete handshaking signals between the AC 800M and servo drives such as the ABB MicroFlex e190, confirming axis-at-position and drive-ready states before the next motion command is issued. This prevents wasted motion cycles and ensures that servo amplifiers are not held in energized standby longer than necessary — a meaningful saving in high-axis-count systems running 24/7.

Power Optimization in Real Production Lines

Consider a bottling plant running six filling stations, each driven by a dedicated motor controlled through an ABB ACS880 variable frequency drive. Without reliable digital input feedback, the AC 800M controller cannot distinguish between a station that is idle-waiting and one that has faulted. The result is that all six drives remain at operational speed, consuming full power, even when two stations are blocked. With the DI810-EA 3BSE008508R2 installed and correctly wired to proximity sensors and motor auxiliary contacts, the controller receives unambiguous run/stop confirmation from each station. Drives serving idle stations are commanded to decelerate to a low-speed energy-saving mode within seconds, cutting their power draw by up to 50% during the idle period.

In a cement or mining application, where large conveyors and crushers represent the dominant energy loads, the DI810-EA feeds belt-running confirmation, chute-blocked signals, and emergency-stop status into the AC 800M. The controller uses this data to implement a cascade shutdown sequence — stopping upstream feeders before the main conveyor, and the conveyor before the crusher — eliminating the energy wasted when equipment runs empty. This sequenced shutdown, impossible without reliable digital input data, can reduce energy consumption during non-production periods by 30–40%.

Maintenance teams benefit equally. Because the DI810-EA 3BSE008508R2 provides channel-level diagnostics accessible through the AC 800M’s engineering tool Control Builder M, technicians can identify a failing sensor or a broken cable before it causes a process upset. Predictive maintenance based on I/O health data reduces the frequency of emergency interventions, which are not only costly in labor but also energy-intensive due to the rapid restarts and thermal cycling they impose on motors and drives. Every avoided emergency restart is a measurable reduction in peak demand charges on the facility’s electricity bill.

All units supplied by ZYPLC are fully tested prior to shipment, with function verification performed on each of the 8 input channels. Stock is maintained for immediate dispatch, supporting urgent replacement scenarios where production continuity depends on fast delivery. Each DI810-EA 3BSE008508R2 is covered by a 12-month warranty, giving procurement and maintenance teams the confidence to plan replacements without budget uncertainty.

Energy Optimization FAQ

Q1: How does the DI810-EA 3BSE008508R2 contribute to energy savings in a production facility?
By providing accurate, real-time digital input signals to the AC 800M controller, the DI810-EA eliminates false-run states where motors and drives operate unnecessarily. The controller can issue demand-based speed reduction or stop commands to connected ABB ACS880 or ACS580 drives the moment field conditions confirm that a process step is complete or idle, directly reducing energy consumption without manual intervention.

Q2: Is the DI810-EA 3BSE008508R2 compatible with existing S800 I/O stations and AC 800M systems?
Yes. The DI810-EA is a native S800 I/O module and is fully compatible with all AC 800M processor modules including the PM860, PM864A, and PM866 series. It mounts on standard S800 I/O baseplate assemblies and is recognized automatically by Control Builder M without requiring additional configuration beyond channel assignment.

Q3: Can this module replace a faulty DI810 unit without reconfiguring the entire I/O station?
In most cases, yes. The DI810-EA 3BSE008508R2 is a direct replacement for standard DI810 variants. The module’s configuration is stored in the AC 800M controller, so after physical replacement, the system restores channel assignments automatically upon the next controller scan cycle. ZYPLC recommends verifying firmware compatibility with your specific AC 800M version before installation.

Q4: What does the 12-month warranty cover, and how is the module tested before shipment?
Every DI810-EA 3BSE008508R2 supplied by ZYPLC undergoes functional testing across all 8 digital input channels prior to dispatch, verifying signal acquisition, isolation integrity, and bus communication. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported directly through ZYPLC’s technical team at plc.sales@zyplc.com.
