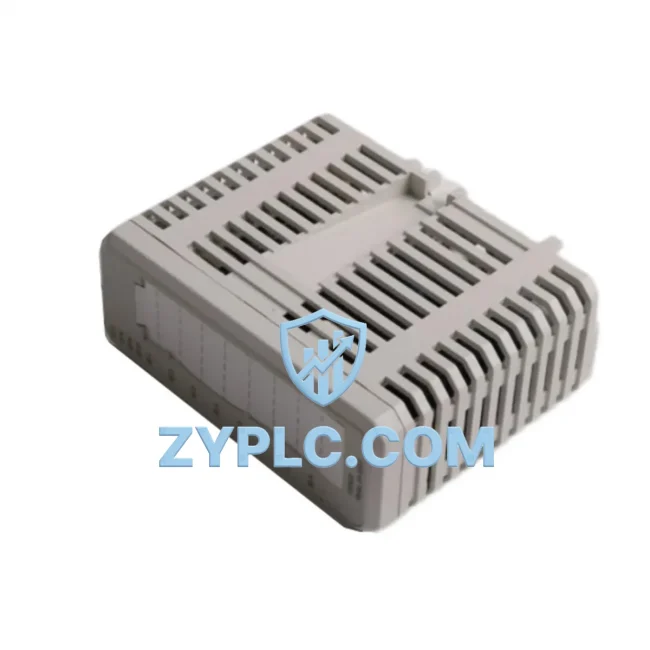

ABB DO630 3BHT300007R1 System-Ready Digital Output for Symphony Plus Architecture

ABB DO630 3BHT300007R1 System-Ready Digital Output for Symphony Plus Architecture: Precision Control Signal Distribution Across Layered Automation Systems

The ABB DO630 (Part No. 3BHT300007R1) is a high-reliability digital output module engineered for deployment within ABB’s Symphony Plus Distributed Control System (DCS) architecture. Designed to serve as the decisive interface between the control layer and field-level actuators, the DO630 delivers deterministic, low-latency switching signals that drive solenoid valves, motor starters, relay coils, and discrete actuators across demanding industrial environments. Whether integrated into a greenfield process plant or retrofitted into an existing Symphony Plus rack system, this module ensures signal integrity, architectural consistency, and long-term operational stability — all backed by a 12-Month Warranty and verified pre-shipment testing.

Architecture Specification Table

Coordinated Control System Design

The DO630 3BHT300007R1 does not operate in isolation — its value is fully realized when positioned within a coherent Symphony Plus control architecture. At the control layer, the ABB PM891 or PM865 process controller (AC800M series) generates the discrete command signals that are routed through the S+ backplane to the DO630, which then drives field devices with precision timing and electrical isolation. The DO630 shares the same I/O chassis with complementary modules such as the DI610 or DI630 digital input modules, which feed process status signals back to the controller, closing the control loop for interlocking, permissive logic, and alarm confirmation.

On the power layer, the SD821 or SD823 power supply units provide stable 24 VDC rail voltage to the I/O chassis, ensuring that the DO630’s output drivers maintain consistent switching performance even under high-load conditions or during plant-wide power transients. For applications requiring redundancy, the DO630 can be paired with a redundant I/O configuration supported by the TB820 or TB840 Modulebus Modem, enabling hot-standby output capability without interrupting field device operation.

At the network and communication layer, the CI854 or CI857 communication interface modules bridge the Symphony Plus backplane to PROFIBUS DP or FOUNDATION Fieldbus H1 segments, allowing the DO630’s output states to be coordinated with intelligent field devices such as smart positioners, variable frequency drives (VFDs), and motor control centers (MCCs). The PM891 controller’s execution cycle synchronizes output updates across all installed DO630 modules, ensuring that multi-channel switching sequences — such as sequential valve actuation in a batch process — are executed with deterministic timing.

For human-machine interface integration, the DO630’s output states are reflected in real time on ABB’s System 800xA Operations workplace or on panel-mounted HMI terminals connected via OPC DA/UA servers. Operators can monitor individual channel states, force outputs during commissioning, and review historical switching logs through the 800xA Information Management layer. This end-to-end visibility — from the DO630 channel level up to the SCADA dashboard — is what makes the module a cornerstone of transparent, auditable process control.

Application in Layered Automation Systems

Across industries, the DO630 3BHT300007R1 has proven its reliability in some of the most demanding control environments. In power generation and transmission substations, the module drives circuit breaker trip coils, transformer tap-changer relays, and auxiliary protection relay inputs, where output response time and electrical isolation are non-negotiable. In oil and gas processing facilities, the DO630 controls emergency shutdown (ESD) valve actuators and flare ignition systems, operating within SIL-rated architectures that demand verifiable output integrity.

In water and wastewater treatment plants, the module manages pump start/stop sequences, chemical dosing valve control, and UV disinfection system switching — all coordinated through Symphony Plus controllers that handle both regulatory PID loops and discrete logic simultaneously. In pharmaceutical and food-grade manufacturing, the DO630 supports clean-in-place (CIP) valve sequencing and batch reactor control, where output repeatability and audit trail compliance are essential for regulatory submissions.

Mining and mineral processing operations rely on the DO630 to control conveyor belt interlocks, crusher feed gate actuators, and flotation cell reagent dosing valves across geographically distributed control rooms connected via fiber-optic Ethernet networks. In each of these applications, the module’s robust construction, wide operating temperature range, and compatibility with the Symphony Plus redundancy framework make it the preferred choice for engineers designing systems that must operate continuously for years without unplanned downtime.

Architecture Engineering FAQ

Q1: Is the DO630 3BHT300007R1 compatible with both Symphony Plus and legacy Harmony DCS architectures?
The DO630 (3BHT300007R1) is specifically designed for the Symphony Plus platform and its S+ Modulebus backplane architecture. It is not directly interchangeable with legacy ABB Harmony (INFI 90) I/O modules. If you are migrating from a Harmony system to Symphony Plus, ABB provides migration path documentation and gateway modules to facilitate the transition. Our technical team can advise on compatibility before purchase.

Q2: Can the DO630 be installed in a hot-standby redundant I/O configuration, and what additional modules are required?
Yes. The Symphony Plus architecture supports redundant I/O configurations using the TB840 Modulebus Modem and a redundant I/O chassis arrangement. In this setup, two DO630 modules operate in parallel, with the standby module taking over output control within milliseconds if the primary module fails. This configuration is recommended for critical output channels such as ESD valve actuators and turbine trip relays. Contact us to confirm the exact BOM for your redundancy requirements.

Q3: What does the 12-Month Warranty cover, and how is the DO630 tested before shipment?
Every DO630 3BHT300007R1 unit supplied by ZYPLC undergoes a pre-shipment functional test that verifies channel-by-channel output switching, backplane communication integrity, and power consumption within ABB’s specified limits. The 12-Month Warranty covers manufacturing defects, premature component failure, and any performance deviation from ABB’s published specifications under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from our stocked inventory to minimize your system downtime.
