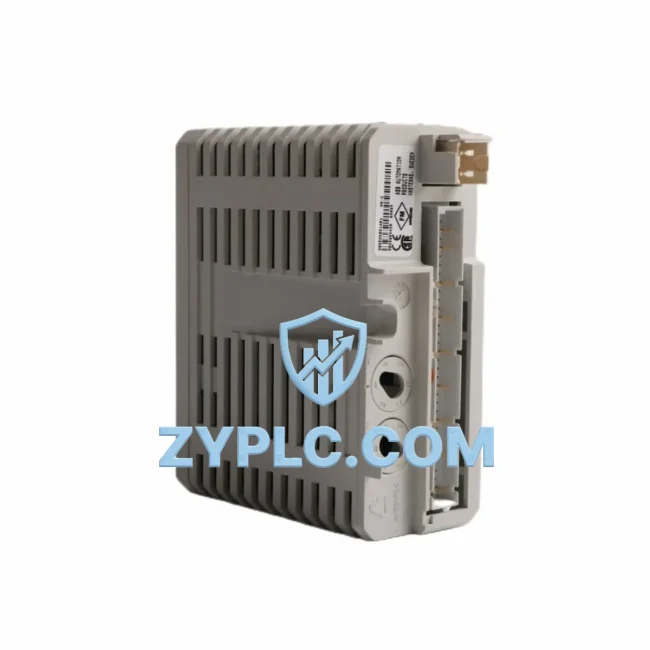

ABB DO820 3BSE008514R1 System-Ready Digital Output for S800 Architecture

ABB DO820 3BSE008514R1 System-Ready Digital Output Module: Control Architecture Coordination and S800 I/O System Integration

The ABB DO820 (3BSE008514R1) is a 24 VDC digital output module engineered for deployment within the S800 I/O distributed I/O platform, operating in close coordination with the AC800M process controller family. In modern industrial automation, a digital output module is far more than a signal-switching component — it is a critical node in the layered control architecture that connects the controller layer to the field execution layer. The DO820 fulfills this role with precision, supporting high-density output configurations that are essential for maintaining system consistency, scalability, and long-term maintainability across demanding process environments.

Within a fully integrated ABB System 800xA or AC800M-based control system, the DO820 operates as part of a coordinated I/O subsystem that includes modules such as the DI810 and DI811 digital input modules, the AO810V2 analog output module, and the AI810 analog input module — all mounted on S800 I/O ModuleBuses and communicating upstream through the TB820V2 or TB840A ModuleBus Modem. This architecture ensures that all I/O data is transmitted reliably to the AC800M CPU modules (such as the PM860 or PM864A) via the ModuleBus, maintaining deterministic scan cycles and minimizing latency across the control loop.

The DO820 supports 16 channels of 24 VDC digital output, each capable of driving solenoid valves, motor contactors, relay coils, and indicator lamps in field panels. Its compact form factor allows dense I/O packing within standard S800 I/O clusters, reducing cabinet footprint while preserving full diagnostic transparency. Each channel provides individual status feedback to the controller, enabling the AC800M to detect open-load faults, short-circuit conditions, and output state mismatches — all of which are surfaced through System 800xA’s asset monitoring layer for proactive maintenance.

From a system architecture perspective, the DO820 integrates seamlessly into both simplex and redundant I/O configurations. When paired with the TB820V2 termination unit and deployed in a redundant ModuleBus topology, the DO820 supports hot-standby I/O redundancy, ensuring that a single module failure does not interrupt process output signals. This is particularly valuable in continuous process industries — such as oil refining, chemical processing, and power generation — where unplanned output interruptions can trigger costly process upsets or safety system activations.

The module’s compatibility with the S800 I/O ecosystem also extends to its integration with the CI854A PROFIBUS DP communication interface and the CI840A PROFINET I/O adapter, enabling the DO820 to participate in fieldbus-based I/O architectures where the S800 cluster is connected to third-party DCS platforms or SCADA systems. This cross-platform compatibility makes the DO820 a versatile component for system integrators managing hybrid automation environments.

For engineering teams responsible for long-term system maintenance, the DO820’s standardized form factor and backward compatibility with existing S800 I/O racks simplify spare parts management. A single DO820 module can replace aging output modules across multiple generations of S800 installations without requiring rack modifications or firmware reconfiguration, significantly reducing mean time to repair (MTTR) during unplanned maintenance events. Combined with our 12-Month Warranty and pre-shipment functional testing, the DO820 sourced through ZYPLC provides a reliable, cost-effective path to sustaining aging DCS infrastructure without full system migration.

Architecture Specification Table

Coordinated Control System Design

The DO820 does not operate in isolation — its value is realized through its position within a coordinated S800 I/O cluster. A typical AC800M-based control cabinet integrating the DO820 will also include the PM864A CPU module as the primary controller, supported by a SM810 or SM811 power supply module providing stable 24 VDC rail power to the I/O bus. The TB820V2 termination unit serves as the physical and electrical interface between the DO820 and field wiring, while the TB840A ModuleBus Modem extends the ModuleBus to remote I/O clusters located up to 100 meters from the controller cabinet.

On the input side, the DO820 works in tandem with DI810 and DI811 digital input modules to form complete digital I/O pairs — for example, a valve command output on the DO820 is confirmed by a valve position feedback signal on the DI810, creating a closed-loop digital control pair that the AC800M monitors for discrepancy alarms. Analog process variables are handled by the AI810 analog input module and AO810V2 analog output module, which share the same ModuleBus and are configured within the same Control Builder M engineering environment.

For systems requiring fieldbus connectivity, the CI854A PROFIBUS DP interface module or CI840A PROFINET I/O adapter can be integrated into the same S800 rack, enabling the DO820’s output data to be accessible from third-party SCADA systems or safety PLCs. This multi-protocol capability is essential in large-scale plant automation where ABB DCS islands must coexist with Siemens, Honeywell, or Yokogawa control platforms.

Application in Layered Automation Systems

Power Generation & Utilities: In combined-cycle power plants and hydroelectric facilities, the DO820 drives turbine bypass valve solenoids, cooling fan motor starters, and breaker trip coils — all coordinated through the AC800M’s fast scan cycle to meet grid response time requirements.

Oil, Gas & Petrochemical: Deployed in wellhead control panels and refinery process units, the DO820 controls shutdown valve actuators and flare ignition systems. Its per-channel diagnostics allow maintenance teams to identify wiring faults without interrupting adjacent output channels, minimizing process downtime.

Water & Wastewater Treatment: In municipal water treatment plants, the DO820 manages pump start/stop commands, chlorination dosing valve control, and UV disinfection system activation — all integrated into System 800xA’s batch management and alarm handling framework.

Mining & Mineral Processing: In conveyor control systems and ore processing plants, the DO820 provides reliable output switching for belt drive contactors, dust suppression solenoids, and emergency stop relay coils, operating continuously in high-vibration, high-dust environments within IP20-rated enclosures.

Packaging & Discrete Manufacturing: On high-speed packaging lines, the DO820 coordinates pneumatic actuator commands, reject gate solenoids, and line status indicator lamps — synchronized with the AC800M’s motion coordination functions to maintain line throughput and product quality.

Architecture Engineering FAQ

Q1: Is the DO820 (3BSE008514R1) compatible with both System 800xA and the older Advant OCS / Master platform?
The DO820 is designed for the S800 I/O platform, which is natively supported by System 800xA and AC800M controllers. While the S800 I/O system shares physical form factors with some earlier ABB I/O families, the DO820 communicates via the S800 ModuleBus protocol and requires a compatible termination unit (TB820V2 or equivalent) and an AC800M or AC800PEC controller for full functionality. It is not directly compatible with the older Advant Master S100 or S400 I/O racks without a protocol gateway.

Q2: Can the DO820 be used in a redundant I/O configuration, and what additional components are required?
Yes. The DO820 supports redundant I/O operation when paired with a redundant ModuleBus topology. This requires two DO820 modules mounted in adjacent slots, a TB840A ModuleBus Modem configured for redundant operation, and an AC800M controller pair (e.g., two PM864A modules) running in hot-standby mode. The redundancy switchover is handled transparently by the AC800M firmware, with no interruption to output signals during a module or communication path failure.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for aging S800 installations?
All DO820 modules supplied by ZYPLC are functionally tested prior to shipment and covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. For aging S800 installations where ABB’s standard support lifecycle has ended, ZYPLC maintains a dedicated inventory of S800 I/O modules — including the DO820, DI810, AI810, AO810V2, and associated termination units — to support emergency replacement and planned maintenance programs. Our technical team can assist with module configuration verification and compatibility checks for your specific AC800M firmware version.
