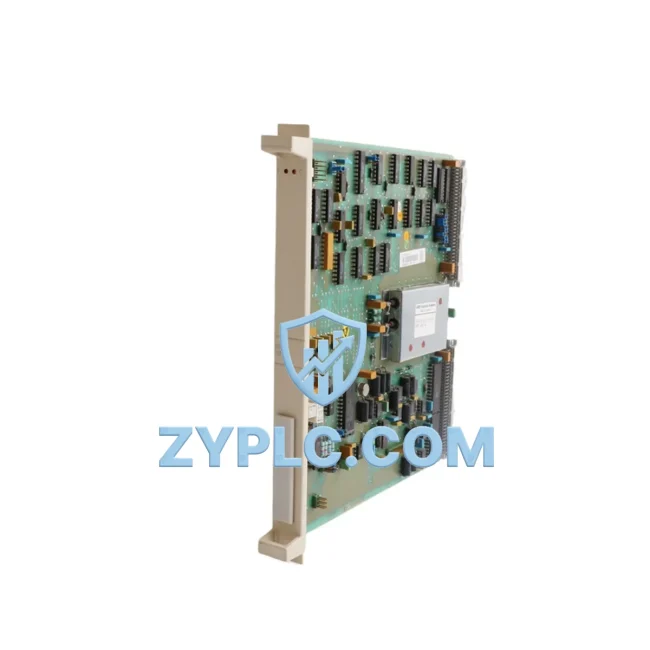

ABB DSAI155 57120001-HZ System-Ready Analog Input Module for Advant OCS/Master Architecture

ABB DSAI155 57120001-HZ System-Ready Analog Input Module for Advant OCS/Master Architecture

The ABB DSAI155 57120001-HZ is a precision analog input module engineered for seamless integration within the ABB Advant OCS and Advant Master distributed control system (DCS) architecture. Rather than functioning as a standalone component, the DSAI155 occupies a critical position within the I/O layer of a multi-tier automation hierarchy — receiving, conditioning, and transmitting field-level analog signals upward to the control layer for real-time process decision-making. Its design philosophy reflects ABB’s commitment to system-level coherence: every electrical parameter, communication protocol, and mechanical form factor is optimized for rack-native deployment within the Advant platform.

In modern industrial automation, the reliability of an analog input module is inseparable from the architecture surrounding it. The DSAI155 is built to operate in concert with upstream CPU modules such as the DSPC110 or DSPC172 processor boards, which handle real-time control logic and communicate with the I/O subsystem via the Advant internal bus. On the power side, the module draws regulated DC supply from dedicated power units such as the DSDP110 or DSDP150 power distribution modules, ensuring stable voltage rails even under high-channel-count configurations. This layered power and control architecture is fundamental to achieving the signal integrity that process industries demand.

Across the I/O layer, the DSAI155 works alongside complementary modules including the DSAO110 analog output module and the DSDI110 digital input module, forming a complete signal acquisition and actuation fabric. In applications where redundancy is required — such as critical loop control in power generation or chemical processing — the Advant architecture supports parallel I/O configurations, allowing the DSAI155 to be mirrored with a standby counterpart for bumpless switchover. This redundancy capability is coordinated at the backplane level through the DSBC172 or DSBC110 bus connection boards, which manage inter-module communication and slot addressing without requiring manual reconfiguration.

At the network and communication layer, the Advant Master system relies on the DSMB175 MasterBus 300 communication module to bridge field-level I/O data with supervisory SCADA systems or higher-level DCS controllers. The DSAI155’s analog readings are aggregated, time-stamped, and transmitted via this communication backbone, supporting deterministic data delivery essential for closed-loop control. For human-machine interface integration, the system typically incorporates ABB’s Operator Station or third-party HMI platforms connected through the MasterBus or PROFIBUS gateway modules, giving operators real-time visibility into the analog values acquired by the DSAI155.

From an engineering and commissioning perspective, the DSAI155 supports straightforward slot-based installation within the Advant S100 I/O subrack. Channel configuration — including input range selection (typically 4–20 mA or 0–10 V), filtering parameters, and alarm thresholds — is performed through the ABB Master Engineering Tool (MET) or equivalent configuration software, eliminating the need for hardware jumper changes in most deployment scenarios. This software-driven parameterization significantly reduces commissioning time and minimizes the risk of wiring errors during system expansion or module replacement.

Long-term maintenance efficiency is another area where the DSAI155 delivers measurable value. Because it conforms to the Advant platform’s standardized module form factor and bus interface, field replacement requires no custom adaptation — a trained technician can swap a failed module, restore configuration from the engineering database, and return the loop to service within minutes. This hot-swap-compatible design, combined with ABB’s well-documented diagnostic register structure, allows maintenance teams to isolate faults at the channel level without taking the entire I/O rack offline. For facilities managing aging Advant installations, maintaining a verified spare inventory of DSAI155 modules is a recognized best practice for minimizing unplanned downtime.

The DSAI155 finds application across a broad spectrum of process industries. In thermal power plants, it monitors boiler drum level, steam pressure, and flue gas temperature signals feeding into turbine control loops. In petrochemical refineries, it acquires flow transmitter and pressure sensor data for distillation column control. Water treatment facilities use it to monitor pH, dissolved oxygen, and flow rate signals within SCADA-integrated treatment loops. Mining and metallurgical operations rely on it for conveyor load monitoring and furnace temperature acquisition. In each of these environments, the module’s industrial-grade design — including conformal coating options, wide operating temperature tolerance, and EMC-compliant signal isolation — ensures reliable performance under demanding electrical and environmental conditions.

Architecture Specification Table

Coordinated Control System Design

The DSAI155 achieves its full potential only when viewed as part of a coordinated system architecture. A typical Advant Master control cabinet integrating this module would include the DSPC110 or DSPC172 CPU module at the control layer, responsible for executing PID and sequence control algorithms using the analog data acquired by the DSAI155. Power integrity is maintained by the DSDP110 power distribution module, which conditions and distributes 24 VDC across the I/O subrack. Complementary I/O modules — including the DSAO110 for analog output, the DSDI110 for digital input, and the DSDO110 for digital output — complete the signal interface layer, enabling full bidirectional communication with field instruments and actuators.

Backplane connectivity is managed through the DSBC172 bus connection board, which provides the physical and logical interface between the I/O modules and the Advant internal bus. For network-level integration, the DSMB175 MasterBus 300 module bridges the local I/O data to the plant-wide DCS network, enabling supervisory control and data historian functions. In redundant configurations, a secondary DSAI155 module can be installed in a mirrored slot, with switchover logic managed at the CPU level to ensure continuous signal acquisition without process interruption. This architecture supports the high-availability requirements of continuous process industries where unplanned shutdowns carry significant operational and safety consequences.

Application in Layered Automation Systems

The DSAI155 is deployed across a wide range of layered automation environments. In power generation, it serves as the primary analog acquisition interface for boiler control systems, capturing pressure, temperature, and flow signals that feed into turbine governor and combustion control loops. In petrochemical and refinery applications, it monitors process variables across distillation, reaction, and separation units, where signal accuracy and loop stability are directly linked to product quality and safety compliance. Water and wastewater treatment facilities use the module to acquire sensor data from flow meters, level transmitters, and analytical instruments, integrating seamlessly with SCADA systems via the Advant MasterBus network.

In mining and metallurgical operations, the DSAI155 handles analog signals from load cells, temperature sensors, and pressure transmitters in ore processing and smelting environments, where the module’s robust isolation and EMC performance are essential. Packaging and discrete manufacturing lines use it within hybrid control architectures that combine sequential logic with analog process monitoring, leveraging the Advant platform’s ability to handle both control paradigms within a single system. Across all these applications, the module’s standardized form factor, software-configurable channel parameters, and 12-Month Warranty provide engineering teams with the confidence to specify it for both new installations and legacy system expansions.

Architecture Engineering FAQ

Q1: Is the DSAI155 57120001-HZ compatible with both Advant OCS and Advant Master DCS platforms?
Yes. The DSAI155 is designed for the ABB S100 I/O subrack, which is common to both the Advant OCS and Advant Master DCS platforms. It communicates via the Advant internal bus and is recognized by both the DSPC110/DSPC172 CPU families. Configuration is performed through the ABB Master Engineering Tool (MET), and the module’s slot address and channel parameters are stored in the engineering database, making it fully interchangeable between compatible system variants without hardware modification.

Q2: Can the DSAI155 be installed in a running system, and what is the recommended procedure for module replacement?
The DSAI155 supports slot-based replacement within the S100 subrack. For planned replacements, the recommended procedure involves placing the associated control loops in manual mode, removing the faulty module, inserting the replacement unit, and restoring configuration from the engineering database before returning loops to automatic control. In systems with redundant I/O configurations, the standby module maintains signal acquisition during the replacement, allowing bumpless switchover. All replacement modules supplied by ZYPLC are tested and verified prior to shipment and are covered by a 12-Month Warranty from the date of delivery.

Q3: How does the DSAI155 support long-term maintenance in aging Advant installations?
The DSAI155’s standardized form factor and bus interface ensure backward compatibility with existing Advant subrack and backplane assemblies, eliminating the need for infrastructure changes when replacing aging modules. Its diagnostic register structure allows the CPU to detect channel-level faults and report them to the operator station, enabling predictive maintenance strategies. ZYPLC maintains verified inventory of DSAI155 modules to support long-term spare parts programs, and each unit is supplied with full documentation and a 12-Month Warranty, providing engineering and procurement teams with a reliable supply chain for ongoing system support.
