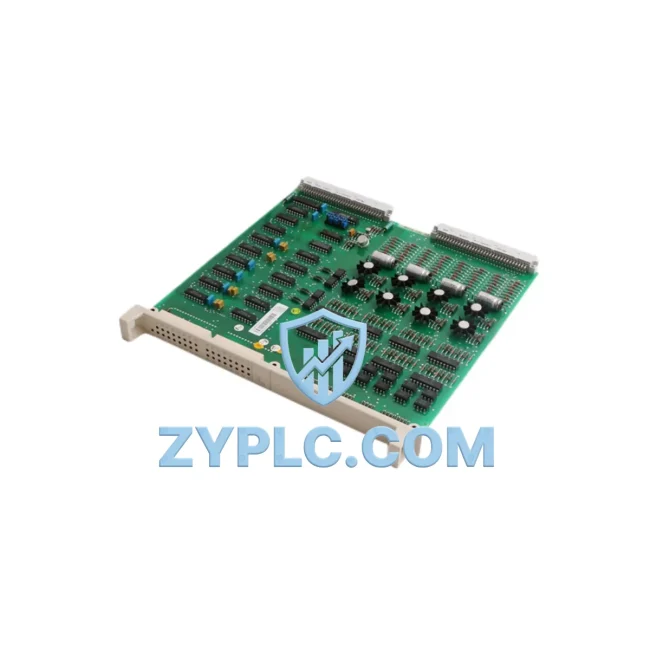

ABB DSDO110 57160001-K System-Ready Digital Output for Advant Master Architecture

ABB DSDO110 57160001-K System-Ready Digital Output for Advant Master Architecture

The ABB DSDO110 57160001-K is a dedicated digital output board engineered for deployment within the ABB Advant/Master Distributed Control System (DCS) architecture. As a field-proven I/O module, it occupies a critical position in the I/O layer of a multi-tier automation hierarchy, bridging the gap between the control layer’s logic execution and the physical execution layer’s actuators, solenoids, motor starters, and relay-driven field devices. Understanding where this module fits within a complete control system architecture is essential for engineers responsible for system design, lifecycle management, and long-term operational continuity.

In a fully integrated Advant/Master DCS environment, the DSDO110 57160001-K does not operate in isolation. It functions as a coordinated component within a structured signal flow that begins at the operator interface, passes through the controller, traverses the I/O subsystem, and terminates at the field device. The integrity of this signal chain depends on the compatibility and reliability of every module in the rack. The DSDO110 57160001-K is designed to maintain that integrity across demanding industrial environments including power generation, petrochemical processing, water treatment, metallurgy, and continuous manufacturing lines.

Architecture Specification Table

Coordinated Control System Design

The DSDO110 57160001-K achieves its full value when considered within the broader context of a coordinated Advant/Master DCS architecture. At the control layer, processors such as the ABB DSPC172 or DSPC110 CPU modules execute the control logic and generate output commands that are routed through the backplane to the I/O layer. The DSDO110 57160001-K receives these commands and converts them into discrete electrical signals that drive field-side devices.

Power integrity across the rack is maintained by dedicated power supply modules such as the ABB DSDP150 or DSDP110, which provide stable 24VDC distribution to all I/O boards including the DSDO110 57160001-K. Without a properly rated and conditioned power supply, output signal accuracy and module longevity are compromised — a consideration that is especially critical in continuous-process industries where unplanned downtime carries significant operational cost.

On the input side, the DSDO110 57160001-K works in tandem with digital input modules such as the ABB DSDI110 or DSDI115, which capture field status signals and return them to the controller for closed-loop logic evaluation. Together, the digital input and output boards form the discrete I/O backbone of the Advant/Master system, enabling the controller to both sense and actuate field conditions in real time.

For analog process variables — temperature, pressure, flow, and level — the system relies on analog I/O boards such as the ABB DSAI130 (analog input) and DSAO120 (analog output), which operate in parallel with the DSDO110 57160001-K within the same rack infrastructure. This mixed I/O architecture allows a single Advant/Master rack to handle both discrete and continuous process signals, reducing cabinet footprint and simplifying wiring topology.

Communication between the Advant/Master DCS and higher-level SCADA systems, historian platforms, or remote I/O stations is facilitated by communication gateway modules such as the ABB DSCL110 or DSCS141, which translate the internal Advant bus protocol to standard industrial communication standards. The DSDO110 57160001-K’s output data is made available to these gateways through the backplane, enabling full system transparency and remote monitoring capability.

At the human-machine interface layer, operator workstations running ABB’s Advant OCS or compatible HMI platforms display the real-time status of all digital outputs managed by the DSDO110 57160001-K. This visibility is essential for operators managing complex process sequences, alarm acknowledgment, and manual override procedures. The seamless data path from the DSDO110 57160001-K through the controller to the HMI layer is a defining characteristic of the Advant/Master architecture’s Contextual Integration design philosophy.

For applications requiring high-availability operation, the DSDO110 57160001-K can be deployed within redundant I/O configurations supported by the Advant/Master platform. Redundant backplane modules and dual-path communication ensure that a single module failure does not interrupt process control, a requirement that is non-negotiable in power plant, refinery, and water treatment applications. Terminal modules and marshalling panels — including compatible ABB DSTD110 or DSTD150 terminal boards — provide the field-side wiring interface, ensuring that the DSDO110 57160001-K can be replaced or maintained without disturbing field wiring.

Application in Layered Automation Systems

Power Generation & Utilities: In thermal and hydroelectric power plants, the DSDO110 57160001-K controls discrete outputs for valve actuators, circuit breaker trip coils, pump motor starters, and alarm annunciators. The module’s compatibility with the Advant/Master DCS platform makes it a standard component in turbine control, boiler management, and balance-of-plant automation systems where long-term platform continuity is a procurement priority.

Petrochemical & Refinery Processing: Refinery control systems demand high signal integrity and deterministic output response times. The DSDO110 57160001-K provides reliable discrete output control for emergency shutdown (ESD) relay drivers, process isolation valves, and compressor control sequences. Its integration within the Advant/Master architecture ensures that output commands are executed within the controller’s scan cycle without latency introduced by external communication layers.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the Advant/Master DCS for pump sequencing, chemical dosing control, and filtration system management. The DSDO110 57160001-K drives the discrete output signals that activate pump contactors, open/close motorized valves, and trigger alarm outputs — all coordinated through the central Advant controller with full audit trail capability.

Metallurgy & Mining: In smelting, ore processing, and mine ventilation systems, the DSDO110 57160001-K manages discrete outputs for conveyor drive starters, furnace burner ignition sequences, and safety interlock relay circuits. The module’s robust design and compatibility with the Advant/Master platform’s redundancy features make it suitable for the harsh electrical environments typical of heavy industry applications.

Continuous Manufacturing & Packaging Lines: High-speed packaging and assembly lines require precise, synchronized discrete output control for pneumatic actuators, reject mechanisms, and line speed control relays. The DSDO110 57160001-K, operating within the Advant/Master DCS architecture, delivers the deterministic output timing required for coordinated multi-axis production sequences.

Architecture Engineering FAQ

Q1: Is the DSDO110 57160001-K compatible with both the Advant Controller 400 Series and the Master DCS platform?
A: Yes. The DSDO110 57160001-K is designed for the ABB Advant/Master DCS I/O subsystem and is compatible with the Advant Controller (AC) series including AC 400 and AC 450 platforms, as well as the Master DCS rack architecture. Engineers should verify the specific backplane bus version and rack configuration against the module’s hardware revision to confirm full compatibility before installation. Our technical team can assist with cross-referencing the 57160001-K hardware revision against your existing system documentation.

Q2: Can the DSDO110 57160001-K be installed in a redundant I/O configuration, and what additional components are required?
A: The Advant/Master DCS platform supports redundant I/O configurations for critical output channels. Implementing redundancy for the DSDO110 57160001-K typically requires a redundant backplane module, a secondary DSDO110 57160001-K unit, and compatible redundancy switching logic within the controller configuration. The specific redundancy architecture depends on the Advant/Master system version and the criticality classification of the output channels. We recommend consulting the ABB Advant/Master system engineering manual and engaging our pre-sales engineering support to design the appropriate redundancy topology for your application.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed for the DSDO110 57160001-K?
A: The 12-Month Warranty covers all hardware defects and functional failures attributable to manufacturing quality under normal operating conditions as specified in the ABB Advant/Master DCS environmental guidelines. Warranty claims are processed through our direct support channel. For long-term lifecycle management, we maintain dedicated inventory of the DSDO110 57160001-K and related Advant/Master I/O modules to support customers operating legacy DCS platforms beyond the original manufacturer’s active production period. Our inventory sourcing strategy prioritizes tested, traceable units to ensure that replacement modules meet the original functional specification — a critical requirement for regulated industries including power generation, water treatment, and petrochemical processing.
