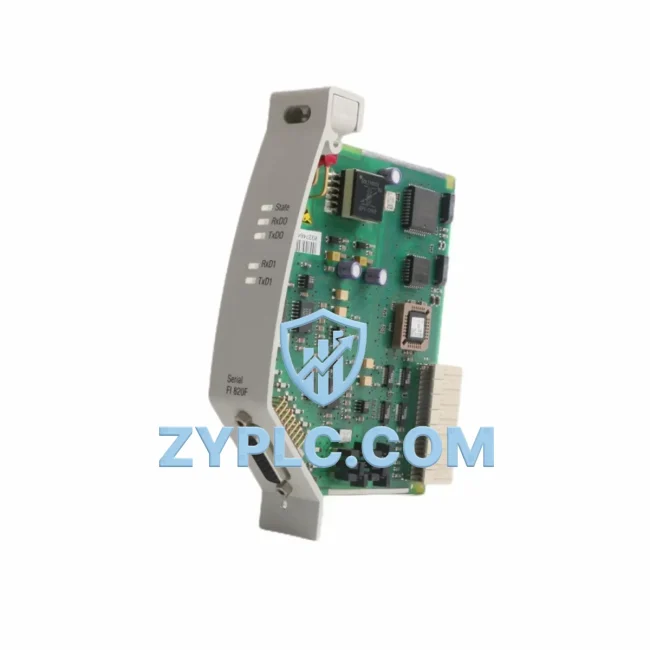

ABB FI820F 3BDH000031R1 System-Ready Fieldbus Interface for S800 I/O Architecture

ABB FI820F 3BDH000031R1 System-Ready Fieldbus Interface for S800 I/O Architecture

The ABB FI820F (3BDH000031R1) is a high-performance fieldbus interface module purpose-built for integration within the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation and industrial control. Designed to operate as the communication backbone between the S800 I/O station and the AC 800M controller platform, the FI820F enables seamless data exchange across PROFIBUS DP networks, ensuring deterministic signal flow, low-latency process feedback, and robust system-level coordination across all automation layers.

In a fully layered control architecture, the FI820F occupies a critical position at the I/O communication layer, bridging the gap between field-level instrumentation and the supervisory control layer. Its role extends beyond simple data transmission — it actively supports system consistency by maintaining synchronized communication between the S800 I/O baseplate, the TB820V2 ModuleBus modem, and the AC 800M CPU modules such as the PM861A or PM864A. This contextual integration ensures that every analog input, digital output, and process variable is accurately reflected in the controller’s execution cycle without signal degradation or timing drift.

From a system architecture perspective, the FI820F is engineered to support both simplex and redundant fieldbus topologies. In redundant configurations, it works in tandem with a secondary FI820F unit to provide hot-standby communication failover, eliminating single points of failure in mission-critical applications such as power generation, oil and gas processing, and chemical plant automation. This redundancy capability is fully compatible with the AC 800M redundancy framework, allowing engineers to design fault-tolerant control systems without additional hardware complexity.

The module’s modular design integrates directly into the S800 I/O baseplate — including the TB810 and TB811 baseplate variants — and communicates upstream via the ModuleBus interface. Downstream, it connects to field devices through PROFIBUS DP at data rates up to 12 Mbps, supporting a wide range of intelligent field instruments, variable frequency drives, and remote I/O nodes. This architecture allows a single FI820F to manage multiple I/O modules including AI810, AO810V2, DI810, DO810, and specialty modules such as the RTD input module AI830A, all within a single S800 station.

For engineering teams managing large-scale distributed control systems, the FI820F simplifies commissioning and long-term maintenance. Its plug-and-play compatibility with the S800 ecosystem means that module replacement, firmware updates, and diagnostic routines can be performed without disrupting adjacent I/O channels or requiring full system shutdowns. This significantly reduces planned maintenance windows and unplanned downtime — a critical advantage in continuous process industries where production interruptions carry substantial financial consequences.

All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring operational reliability and post-sale technical support. Our inventory is sourced from verified supply chains, and each module undergoes functional verification prior to dispatch. Fast global shipping and responsive technical assistance make ZYPLC a trusted partner for automation engineers and procurement teams worldwide.

Architecture Specification Table

Coordinated Control System Design

The FI820F does not operate in isolation — its value is fully realized when viewed within the context of a complete ABB control system architecture. At the controller layer, the AC 800M CPU modules (PM861A, PM864A, or PM866A) serve as the central processing units, executing control logic and managing all I/O communication through the ModuleBus network. The FI820F acts as the fieldbus gateway, translating ModuleBus data into PROFIBUS DP frames that are distributed to the S800 I/O station.

Within the S800 station, the TB820V2 ModuleBus modem establishes the physical and logical connection between the FI820F and the I/O modules mounted on the baseplate. Analog input modules such as the AI810 and AI830A collect process signals from temperature transmitters, pressure sensors, and flow meters, while analog output modules like the AO810V2 drive control valves and positioners. Digital I/O modules including the DI810 and DO810 handle discrete signals from limit switches, motor starters, and solenoid valves — all coordinated through the FI820F’s communication cycle.

At the power layer, the SD821 or SD822 power supply units provide stable 24 VDC to the S800 baseplate, ensuring that the FI820F and all connected I/O modules operate within their specified electrical parameters. In redundant power configurations, dual power supplies with automatic switchover eliminate power-related single points of failure. At the network layer, PROFIBUS DP repeaters and optical link modules extend the fieldbus reach across large plant areas, maintaining signal integrity over long cable runs.

For human-machine interface integration, the AC 800M platform communicates with ABB’s 800xA DCS or third-party SCADA systems via OPC DA/UA or Modbus TCP, providing operators with real-time process visualization, alarm management, and historical data trending. This end-to-end architecture — from field sensor through FI820F, S800 I/O, AC 800M CPU, to the operator workstation — represents a fully integrated, scalable, and maintainable control system solution.

Application in Layered Automation Systems

The ABB FI820F 3BDH000031R1 is deployed across a broad spectrum of industrial automation applications where reliable fieldbus communication and modular I/O architecture are essential.

In power generation and utilities, the FI820F supports turbine control, boiler management, and auxiliary system automation within combined-cycle and thermal power plants. Its redundant fieldbus capability ensures continuous operation during planned maintenance and unexpected fault conditions. In oil and gas processing, the module is used in wellhead control panels, compressor stations, and pipeline SCADA systems, where SIL-rated communication integrity and long-term component availability are non-negotiable requirements.

In chemical and petrochemical plants, the FI820F integrates with distributed control systems managing reactor temperature, pressure, and flow loops, providing the communication reliability required for continuous process operations. In water and wastewater treatment, it connects pump stations, filtration systems, and dosing control panels to centralized SCADA platforms, enabling remote monitoring and automated process control across geographically distributed facilities.

In mining and metallurgy, the module supports conveyor control, crusher automation, and smelting process management, where harsh environmental conditions and high-availability requirements demand robust, field-proven hardware. In packaging and discrete manufacturing, the FI820F enables high-speed I/O communication for production line control, quality inspection systems, and robotic integration — delivering the cycle-time performance and diagnostic transparency that modern manufacturing operations require.

Architecture Engineering FAQ

Q1: Is the FI820F 3BDH000031R1 compatible with all AC 800M controller versions, and can it be used in a redundant fieldbus configuration?
The FI820F is fully compatible with all AC 800M CPU variants including PM861A, PM864A, and PM866A, provided the controller firmware supports the S800 I/O fieldbus interface. For redundant configurations, two FI820F modules are installed in the same S800 station — one as primary and one as standby — with automatic failover managed by the AC 800M redundancy supervisor. No additional hardware is required beyond the standard S800 baseplate and TB820V2 modem. Consult the ABB S800 I/O System Product Guide (3BSE020924) for detailed redundancy wiring diagrams and configuration parameters.

Q2: What is the maximum number of S800 I/O modules that can be connected to a single FI820F, and how does this affect system expansion planning?
A single FI820F supports up to 12 S800 I/O modules per station, depending on the baseplate configuration (TB810 supports up to 8 modules; TB811 supports up to 12 modules). For larger I/O counts, multiple S800 stations — each with its own FI820F — can be connected to the same PROFIBUS DP segment, with the AC 800M managing all stations through a single fieldbus master interface. This modular expansion approach allows engineers to scale the I/O architecture incrementally without redesigning the control network, making the FI820F a future-proof investment for growing automation systems.

Q3: What does the 12-Month Warranty cover, and what support is available for installation and long-term maintenance?
All FI820F 3BDH000031R1 modules supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty includes direct technical support for installation verification, configuration guidance, and fault diagnosis. For long-term maintenance, ZYPLC maintains stock of FI820F and compatible S800 I/O components to support rapid replacement needs, minimizing system downtime. Our engineering team is available to assist with compatibility verification, firmware version matching, and system integration planning for both new installations and legacy system upgrades.
