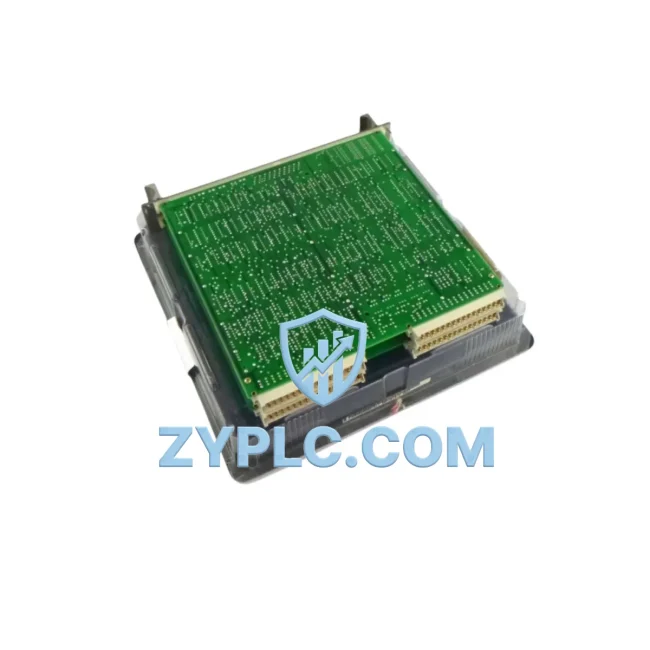

ABB GJR2332300R0200 System-Ready Analog I/O for S800 Architecture

ABB GJR2332300R0200 System-Ready Analog I/O for S800 Architecture

In a layered industrial automation system, the integrity of the I/O layer determines the reliability of every decision made at the control layer. The ABB GJR2332300R0200 is an analog I/O module engineered for the ABB S800 I/O system — a modular, distributed I/O platform widely deployed in process industries where signal fidelity, system consistency, and long-term maintainability are non-negotiable. This module does not operate in isolation; it functions as a precision interface between field instrumentation and the control execution layer, ensuring that analog signals from transmitters, sensors, and actuators are accurately captured, conditioned, and delivered to the controller with minimal latency and maximum repeatability.

The S800 I/O system is designed around a backplane-based architecture that supports hot-swap capability and distributed installation. The GJR2332300R0200 slots directly into the S800 I/O station, sharing a common communication bus with other S800 modules such as digital input modules, digital output modules, and specialty function modules. This modular co-existence allows engineers to build a precisely tailored I/O configuration without over-provisioning hardware, reducing both capital expenditure and cabinet footprint. When paired with the S800 ModuleBus communication interface, the module participates in a deterministic data exchange cycle that feeds real-time process values to the ABB AC800M controller — the CPU backbone of many ABB System 800xA installations.

Architecture Specification Table

Coordinated Control System Design

The GJR2332300R0200 achieves its full value when understood within the context of a complete ABB control system architecture. At the controller level, the ABB AC800M CPU module serves as the central processing unit, executing control logic and managing communication with all connected I/O stations. The AC800M communicates with S800 I/O stations over the ModuleBus or via optical fiber links, enabling distributed I/O placement across large process plants without signal degradation.

Within the I/O station, the GJR2332300R0200 shares the backplane with companion modules. Digital input modules handle discrete on/off signals from limit switches and proximity sensors, while digital output modules drive solenoid valves, motor starters, and relay coils. The analog module itself handles the continuous-range signals — flow rates from Coriolis or magnetic flowmeters, pressure readings from smart transmitters, temperature values from RTD or thermocouple transmitters — converting these into digital representations that the AC800M can process in its control algorithms.

Power distribution within the S800 station is managed by the S800 power supply unit, which provides regulated 24 VDC to all installed modules. Redundant power supply configurations are supported, ensuring that a single power supply failure does not interrupt I/O data collection. This redundancy extends to the communication path as well: the S800 system supports redundant ModuleBus configurations, where dual communication paths ensure that a cable fault or interface failure does not cause a loss of field data.

At the human-machine interface layer, the ABB 800xA Operator Workplace provides real-time visualization of all analog values collected by modules like the GJR2332300R0200. Operators can monitor trend data, configure alarm thresholds, and initiate control actions — all driven by the accurate analog data flowing from the field through this module. Engineering tools such as ABB Control Builder M allow configuration engineers to define signal scaling, filtering parameters, and alarm limits directly associated with each analog channel, streamlining commissioning and reducing the risk of configuration errors.

For applications requiring functional safety, the S800 architecture supports integration with ABB’s safety I/O modules, which can coexist in the same I/O station alongside standard modules like the GJR2332300R0200. This allows a unified cabinet design where safety-rated signals and standard process signals share the same physical infrastructure while maintaining logical separation required by IEC 61508 and IEC 61511 standards.

Application in Layered Automation Systems

The GJR2332300R0200 is deployed across a wide range of process industries where analog signal management is central to operational performance. In oil and gas upstream facilities, the module collects pressure and flow data from wellhead instrumentation, feeding real-time values to the AC800M for production optimization algorithms. In chemical processing plants, it interfaces with pH transmitters, conductivity sensors, and temperature elements distributed across reactor vessels, enabling precise control of reaction conditions that directly affect product quality and yield.

In power generation facilities — including thermal, hydro, and combined-cycle plants — the S800 analog I/O system manages turbine control signals, generator excitation feedback, and auxiliary system monitoring. The GJR2332300R0200’s ability to handle multiple analog channels within a compact module footprint makes it particularly valuable in retrofit projects where existing cabinet space is limited but additional measurement points are required.

Water and wastewater treatment plants rely on the S800 system for continuous monitoring of flow, level, turbidity, and chemical dosing rates. The GJR2332300R0200 provides the analog interface for these measurements, supporting the long-term, unattended operation that characterizes municipal water infrastructure. In mining and mineral processing, the module handles signals from belt scale transmitters, slurry density meters, and flotation cell level sensors — all critical inputs for process efficiency and environmental compliance.

Across all these applications, the module’s compatibility with the broader ABB System 800xA ecosystem means that maintenance engineers can use standard ABB diagnostic tools to verify channel health, calibrate signal ranges, and identify faults without specialized equipment. This reduces mean time to repair and supports the predictive maintenance strategies that modern industrial operations depend on for maximum equipment availability.

Architecture Engineering FAQ

Q1: Is the GJR2332300R0200 compatible with both older S800 I/O stations and current System 800xA configurations?
The GJR2332300R0200 is designed for the ABB S800 I/O platform, which has maintained backward compatibility across multiple generations of ABB’s distributed control system portfolio. It is compatible with S800 I/O stations used in both legacy Advant OCS/Master installations and current System 800xA environments. Engineers integrating this module into an existing system should verify the firmware version of the S800 communication interface module to ensure full feature support. ZYPLC supplies this module with full pre-shipment functional testing and provides configuration guidance upon request.

Q2: Can this module be installed and replaced without shutting down the entire I/O station?
The S800 I/O system supports hot-swap module replacement, meaning the GJR2332300R0200 can be removed and reinserted while the I/O station remains powered and other modules continue operating. This capability is critical for high-availability process environments where planned shutdowns are infrequent. After reinsertion, the module automatically downloads its configuration from the AC800M controller, minimizing the time required to restore full functionality. All units supplied by ZYPLC are tested prior to shipment to confirm this behavior under standard operating conditions.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
The 12-Month Warranty provided by ZYPLC covers all functional defects in the GJR2332300R0200 from the date of shipment. If the module fails to perform within its specified analog accuracy, communication, or power consumption parameters during the warranty period, ZYPLC will arrange replacement or repair at no additional cost. Warranty claims are initiated by contacting our technical team at plc.sales@zyplc.com with the order reference and a description of the observed fault. Our team targets a response within one business day and works to minimize any disruption to your production operations.
