ABB HAC807B102 Energy-Saving Analog Input Module Symphony+

ABB HAC807B102 Energy-Saving Analog Input Module for Symphony+ Automation

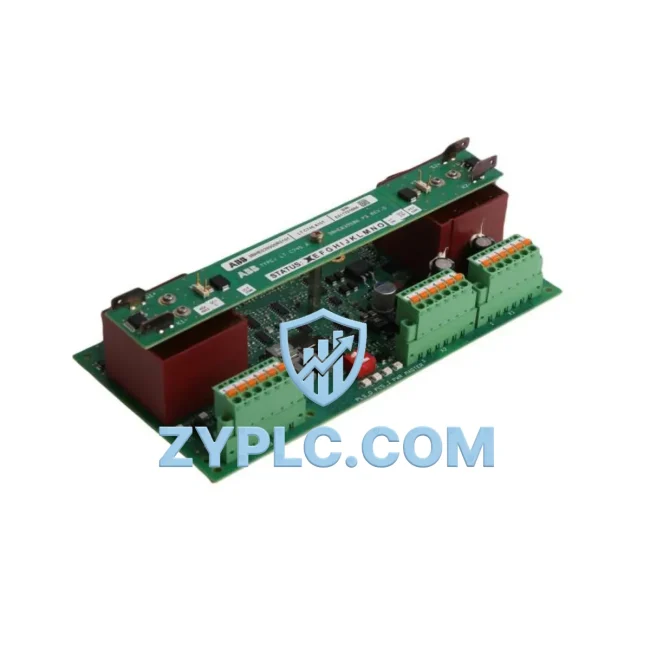

The ABB HAC807B102 (alternate part number 3BHE039221R0102) is a high-precision Analog Input Termination Unit engineered for the ABB Symphony Plus Distributed Control System (DCS). Designed to meet the rigorous demands of modern industrial energy optimization, this module serves as a critical interface between field instrumentation and the Symphony Plus controller backbone — enabling real-time signal acquisition, accurate process variable monitoring, and energy-aware closed-loop control across continuous manufacturing environments.

In today’s industrial landscape, reducing energy waste begins at the signal level. The HAC807B102 ensures that every analog measurement — whether from a pressure transmitter, thermocouple, flow meter, or current loop sensor — is captured with high fidelity and minimal signal conditioning overhead. This accuracy directly supports smarter drive decisions, tighter motor control loops, and reduced idle energy consumption across production assets.

Efficiency Performance Table

Energy-Aware Automation Architecture

The HAC807B102 does not operate in isolation — it is a foundational component within a broader energy-aware automation architecture built on the ABB Symphony Plus platform. In a typical energy-optimized plant configuration, the module works in concert with the ABB PM891 processor module, which handles real-time control execution and communicates process data across the Symphony Plus network. Field signals collected by the HAC807B102 are routed through the ABB TB820V2 ModuleBus Modem, ensuring low-latency data transfer between I/O termination units and the central controller.

On the drive side, the analog inputs captured by the HAC807B102 feed directly into speed reference and torque control loops managed by ABB ACS880 industrial drives — a series renowned for its Direct Torque Control (DTC) technology that minimizes motor energy consumption during variable-load operations. When paired with the ABB ACSM1 servo drive for precision axis control, the system achieves sub-millisecond response times that eliminate overshoot energy waste in positioning applications.

For power quality and energy monitoring, the HAC807B102 integrates seamlessly with the ABB M2M gateway and ABB Ability Energy Manager platform, enabling plant-wide energy dashboards that track kWh consumption per production unit. The ABB CP600 HMI panel provides operators with real-time visualization of analog input trends, allowing immediate corrective action when energy anomalies are detected. Communication across the control network is handled via PROFIBUS DP and PROFINET protocols, both natively supported within the Symphony Plus architecture.

Additional I/O expansion is achieved through companion modules such as the ABB HAC807B101 and ABB HAI803 analog input cards, which share the same termination board form factor and can be hot-swapped without process interruption — a critical feature for maintaining high equipment utilization rates in continuous-process industries. The ABB SDCS-CON-4 DC drive control board further extends the system’s capability into legacy DC motor retrofit applications, allowing older drive assets to be brought under Symphony Plus supervisory control without full replacement.

Power Optimization in Real Production Lines

In a cement plant running continuous kiln operations, the HAC807B102 collects temperature and pressure signals from over 40 field instruments per control loop. These signals are processed by the Symphony Plus controller to modulate the speed of large ID fan motors via ABB ACS880 drives — reducing fan energy consumption by up to 30% compared to fixed-speed operation. The high-accuracy analog input ensures that the drive receives a clean, noise-free reference signal, preventing hunting behavior that would otherwise cause unnecessary motor acceleration and deceleration cycles.

In a water treatment facility, the module monitors flow transmitter outputs across multiple pump stations. The Symphony Plus system uses this data to implement pump scheduling algorithms that stagger start times, flatten the facility’s demand curve, and avoid peak-tariff energy charges. Predictive maintenance alerts are generated when analog signal drift is detected — indicating sensor fouling or wiring degradation — before a fault causes unplanned downtime. This proactive approach reduces maintenance costs and keeps overall equipment effectiveness (OEE) above target thresholds.

In chemical batch processing, the HAC807B102 supports recipe-driven control sequences where precise analog feedback from reactor temperature sensors determines agitator motor speed and heating element duty cycles. By tightening the control band around setpoint, the system reduces thermal overshoot, shortens batch cycle times, and lowers per-batch energy consumption — directly improving production line throughput and energy cost per unit of output.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including analog channel accuracy verification, loop resistance checks, and communication integrity validation. Each HAC807B102 is backed by a 12-month warranty and is available from stock for immediate global dispatch.

Energy Optimization FAQ

Q1: How does the HAC807B102 contribute to energy savings in a DCS-controlled plant?
The HAC807B102 provides high-accuracy analog signal acquisition that enables the Symphony Plus controller to make precise, real-time adjustments to drives, valves, and actuators. By eliminating signal noise and measurement error, the controller can maintain tighter process setpoints — reducing energy waste from over-driving motors, excessive heating, or unnecessary pump cycling.

Q2: Is the HAC807B102 compatible with other ABB DCS platforms or only Symphony Plus?
The HAC807B102 is specifically designed for the ABB Symphony Plus DCS architecture. It is compatible with Symphony Plus controller modules including the PM891 and PM865 processors. For integration with ABB AC 800M or Freelance DCS platforms, alternative I/O termination units should be selected. ZYPLC can advise on cross-platform compatibility and suitable replacement options.

Q3: What is the recommended replacement or upgrade path if the HAC807B102 is end-of-life?
For systems requiring modernization, the HAC807B102 can be replaced with the latest ABB Symphony Plus analog input modules that support HART pass-through communication, enabling digital diagnostics alongside traditional 4–20 mA signals. ZYPLC maintains stock of both current-generation and legacy-compatible modules to support phased migration strategies without full system shutdowns.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every HAC807B102 supplied by ZYPLC is tested for analog channel accuracy, signal isolation integrity, and communication bus compatibility before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for critical process applications to minimize production downtime.
