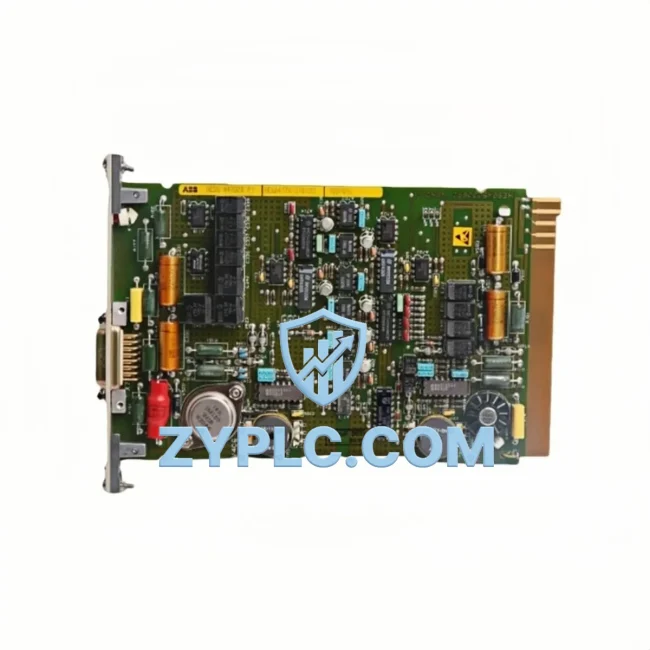

ABB HESG447024R1 70BT01c Energy-Saving Bus Transmitter for Advant Automation
The ABB HESG447024R1 70BT01c is a high-performance bus transmitter module engineered for the ABB Advant Controller series, delivering precise signal transmission and real-time data exchange across industrial control networks. In energy-intensive manufacturing environments, the quality of bus communication directly determines how efficiently a plant can monitor, regulate, and respond to power consumption events. The HESG447024R1 70BT01c addresses this challenge by providing stable, low-latency data pathways between field devices and the central control system, enabling operators to act on energy data in real time rather than after the fact.
When integrated into an Advant OCS or AC450 controller platform, this module serves as the communication backbone that links energy meters, drive systems, and I/O subsystems into a unified monitoring architecture. Plants running ABB ACS800 or ACS880 variable frequency drives benefit directly: the bus transmitter relays speed reference and torque feedback signals with minimal cycle time, allowing the drive to respond dynamically to load changes and avoid unnecessary energy draw during partial-load conditions. This kind of closed-loop responsiveness is a cornerstone of modern motor energy optimization.
Beyond drive control, the HESG447024R1 70BT01c supports integration with power monitoring modules such as the ABB HESG324234R1 and HESG447022R1, which measure real-time kWh consumption at the panel level. When these modules communicate through a properly functioning bus transmitter, energy data flows continuously to the SCADA or DCS layer, where it can be trended, alarmed, and acted upon. This eliminates the blind spots that cause factories to over-provision power capacity or miss peak-demand reduction opportunities.
On the production line, cycle time consistency is a direct indicator of energy efficiency. Machines that dwell, stall, or repeat operations consume more energy per unit produced. The HESG447024R1 70BT01c contributes to line rhythm stability by ensuring that PLC scan cycles receive accurate, timely bus data. When paired with ABB DSQC series I/O modules or HESG447021R1 communication cards, the system maintains deterministic data exchange that keeps servo axes, conveyors, and pneumatic actuators synchronized — reducing idle energy consumption between production steps.
Predictive maintenance is another domain where this bus transmitter delivers measurable energy savings. By maintaining reliable communication between field sensors and the controller, the HESG447024R1 70BT01c enables continuous condition monitoring of motors, pumps, and compressors. Abnormal current signatures or vibration trends detected through connected ABB HESG447025R1 or HESG216045R1 modules can trigger early maintenance alerts, preventing the energy-wasting degradation that occurs when equipment runs in a deteriorating state. A motor operating with worn bearings or misaligned couplings can consume 10–15% more energy than a well-maintained unit — catching these issues early directly reduces the energy cost per production hour.
The module is fully tested prior to shipment, with functional verification covering bus signal integrity, transmission timing, and compatibility with the Advant controller backplane. Each unit is supplied with a 12-month warranty, covering defects in materials and workmanship under normal industrial operating conditions. Stock is maintained for prompt dispatch, supporting both planned maintenance schedules and urgent replacement scenarios.
Efficiency Performance Table
| Parameter |
Specification / Value |
| Model |
HESG447024R1 70BT01c |
| Brand |
ABB |
| Series |
Advant / AC450 / OCS |
| Product Type |
Bus Transmitter Module |
| Power Consumption |
Low-power design, optimized for continuous 24/7 operation |
| Operating Efficiency |
Deterministic bus cycle, minimal signal latency |
| Compatible Systems |
ABB Advant OCS, AC450, AC410 controller platforms |
| Application Environment |
Industrial automation, DCS, process control, energy monitoring |
| Energy Saving Value |
Enables real-time power data feedback for drive and motor optimization |
| Origin |
Germany |
| Warranty |
12-Month Warranty |
| Testing |
Fully tested and verified before shipment |
| Availability |
In stock — ready for prompt dispatch |
Energy-Aware Automation Architecture
The HESG447024R1 70BT01c operates at the intersection of control and energy intelligence. In a typical Advant-based automation architecture, the module connects the AC450 or AC410 controller to field-level devices through a structured bus topology. This includes communication with HESG447022R1 bus interface modules, HESG324234R1 power supply units, and HESG447021R1 communication adapters that collectively form the data infrastructure of the control system.
On the drive side, ABB ACS800 frequency converters receive speed and torque references through the bus network managed by this transmitter. The ACS880 series, used in more demanding applications such as hoists, extruders, and large pump systems, similarly depends on reliable bus communication to execute energy-optimized control strategies like direct torque control (DTC). When bus data is clean and timely, the drive can apply exactly the right amount of power to the load — no more, no less.
For I/O integration, the HESG447024R1 70BT01c works alongside DSQC651 and DSQC652 digital I/O modules in mixed ABB installations, as well as HESG216045R1 analog input cards that feed process variables such as temperature, pressure, and flow into the energy calculation loop. HMI panels connected to the Advant network — including ABB Panel 800 operator terminals — display real-time energy KPIs derived from data passing through this bus transmitter, giving operators the visibility needed to make informed decisions about load scheduling and equipment utilization.
Power Optimization in Real Production Lines
In continuous process industries such as chemical, pulp and paper, and food processing, the HESG447024R1 70BT01c contributes to energy reduction by enabling tighter control loop performance. When the bus transmitter delivers accurate, low-jitter data to the controller, PID loops governing pump speed, valve position, and compressor output can be tuned more aggressively without risking instability. Tighter control means less energy wasted in overshoot, hunting, and correction cycles.
In discrete manufacturing — automotive assembly, electronics production, packaging lines — the module supports line balancing by ensuring that each station receives its control signals on schedule. Stations that wait for data consume energy without producing output. By eliminating communication delays, the HESG447024R1 70BT01c helps maintain the production rhythm that keeps energy consumption proportional to actual output rather than to elapsed time.
Downtime is one of the largest hidden energy costs in industrial operations. When a line stops unexpectedly, HVAC systems, compressed air networks, lighting, and auxiliary equipment continue to consume power while producing nothing. The HESG447024R1 70BT01c reduces unplanned downtime risk by providing a reliable, tested communication link that does not introduce intermittent faults or data corruption — common failure modes in aged or counterfeit bus modules that can cause nuisance trips and production interruptions.
For facilities pursuing ISO 50001 energy management certification or internal carbon reduction targets, the data continuity provided by this bus transmitter is foundational. Energy management systems require consistent, gap-free data streams to calculate accurate consumption baselines, identify anomalies, and verify the impact of efficiency measures. The HESG447024R1 70BT01c ensures that data collection is never interrupted by communication hardware failures.
Energy Optimization FAQ
Q: How does the HESG447024R1 70BT01c contribute to energy savings in an Advant system?
A: By maintaining stable, low-latency bus communication between the controller and field devices, the module enables real-time energy monitoring and precise drive control. This allows the system to adjust motor speed, torque, and load in response to actual demand, eliminating the energy waste associated with fixed-speed operation or delayed control response.
Q: Is the HESG447024R1 70BT01c compatible with both AC450 and AC410 Advant controllers?
A: Yes. The 70BT01c bus transmitter is designed for the ABB Advant controller family and is compatible with AC450 and AC410 platforms. It integrates with the standard Advant backplane and communicates with other Advant modules including HESG447022R1 and HESG447021R1 without requiring additional adapters.
Q: What is the recommended replacement process for a failed bus transmitter in a live production environment?
A: For a controlled replacement, the affected controller segment should be taken offline during a scheduled maintenance window. The HESG447024R1 70BT01c is a direct replacement for the 70BT01c form factor. After installation, bus communication should be verified through the controller diagnostic interface before returning the segment to service. All units supplied by ZYPLC are tested prior to shipment to confirm functionality.
Q: What warranty and testing standards apply to this module?
A: Every HESG447024R1 70BT01c unit is fully tested for bus signal integrity and operational performance before dispatch. A 12-month warranty is provided, covering manufacturing defects and functional failures under normal industrial operating conditions. Expedited shipping is available for urgent replacement requirements.
