ABB HIEE300690R001 System-Ready Relay Output for Advant OCS Architecture

ABB HIEE300690R001 AR-C093-AE01: Industrial Data Link and Smart Factory Relay Output Integration

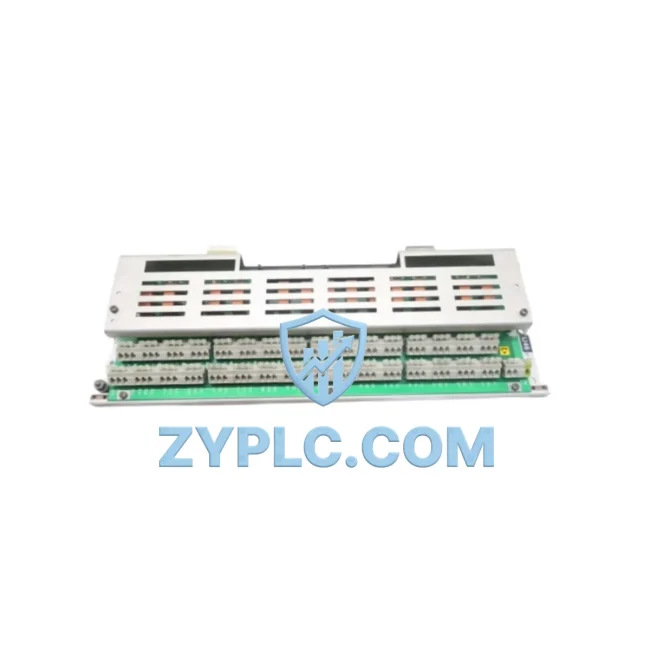

The ABB HIEE300690R001, also referenced as AR-C093-AE01, is a relay output card engineered for deployment within ABB’s Advant OCS distributed control system architecture. In modern industrial automation environments — spanning power generation, chemical processing, pulp and paper, water treatment, and heavy manufacturing — the integrity of the output layer is as critical as the intelligence of the controller itself. This module serves as the decisive interface between the digital control domain and the physical execution layer, converting controller-issued commands into reliable relay switching actions that drive contactors, solenoid valves, motor starters, alarm annunciators, and safety interlocks.

Within a layered automation hierarchy, the HIEE300690R001 occupies the field output tier, receiving discrete command signals from the Advant OCS processor modules — such as the DSPC110 or DSPC172 CPU boards — and translating them into galvanically isolated relay contact closures. This isolation is fundamental: it protects the control backplane from voltage transients, inductive kickback, and ground loops that are endemic to industrial field environments. The relay contacts are rated for the voltage and current levels typical of 24 VDC and 110/220 VAC field devices, making the card universally applicable across both low-voltage instrumentation circuits and higher-power actuator control loops.

The card is designed for installation within the standard Advant OCS subrack, sharing the same backplane bus architecture as companion I/O modules including the DSDI110A digital input card, the DSDO110D digital output module, and the DSAI130A analog input card. This modular co-location within a common rack simplifies wiring, reduces panel footprint, and ensures that all I/O signals are processed within a unified, time-synchronized control frame. The backplane communication between the HIEE300690R001 and the system controller is handled through the Advant fieldbus structure, ensuring deterministic signal latency that is essential for process-critical switching operations.

Network Communication Table

Connected Automation Data Flow

Understanding the HIEE300690R001’s role requires mapping the complete data flow from the SCADA supervisory layer down to the physical field device. At the top of the hierarchy, a SCADA platform — such as ABB’s System 800xA or a third-party Wonderware/Ignition deployment — issues setpoint commands and sequence instructions to the Advant OCS controller over an OPC DA/UA or proprietary communication link. The controller’s CPU module processes these instructions and generates discrete output commands that are routed through the backplane to the HIEE300690R001.

At the network layer, the Advant OCS system may interface with plant-wide Ethernet infrastructure through an AIMA01 or similar communication interface module, enabling integration with MES systems, historian databases, and remote engineering workstations. For sites requiring PROFIBUS DP connectivity to field devices such as ABB ACS800 or ACS550 variable frequency drives, a dedicated PROFIBUS gateway module bridges the Advant backplane bus to the PROFIBUS segment, allowing the relay output card to operate in concert with drive-level feedback signals.

On the HMI layer, operator panels — including ABB CP600 series HMI terminals or third-party Siemens TP series panels — display the real-time status of relay outputs, enabling operators to monitor contact state, acknowledge alarms, and initiate manual overrides without interrupting the automated control sequence. This bidirectional visibility is essential for maintenance efficiency and rapid fault diagnosis.

At the field level, the relay contacts of the HIEE300690R001 directly switch loads including motor starter coils, pneumatic valve solenoids, and alarm horn circuits. In process industries, these outputs may also interface with safety relay modules — such as ABB JSBR4 or equivalent SIL-rated safety relays — to implement emergency shutdown interlocks that comply with IEC 61511 functional safety requirements. The combination of the relay output card with upstream CPU modules and downstream safety devices creates a coherent, auditable safety instrumented function within the broader control architecture.

For remote I/O applications, the Advant OCS system supports distributed subrack configurations connected via the Advant Fieldbus 100 (AF100) network. In these topologies, the HIEE300690R001 may be installed in a remote subrack alongside DSDI110A input cards and DSAI130A analog modules, with all I/O data transmitted over the AF100 link to the central controller. This architecture eliminates long field cable runs, reduces installation costs, and improves signal integrity in electrically noisy environments such as steel mills, mining operations, and offshore platforms.

Solving Data Isolation in Industrial Sites

One of the persistent challenges in legacy DCS environments is the fragmentation of control data across incompatible platforms and communication protocols. Sites that have evolved over decades often operate a mixture of ABB Advant OCS systems alongside newer ABB AC800M controllers, third-party Siemens S7-400 PLCs, and standalone Modbus RTU field instruments — each generating valuable process data that remains siloed within its own communication domain.

The HIEE300690R001, as part of the Advant OCS I/O subsystem, can be integrated into cross-platform data aggregation strategies through the use of protocol gateway devices. An ABB CI854A PROFIBUS DP communication interface, for example, can bridge Advant backplane data to a PROFIBUS segment shared with third-party devices, enabling unified data collection by a plant historian or SCADA system. Similarly, Modbus TCP gateways can expose Advant I/O data to Ethernet-based supervisory systems, eliminating the need for manual data transcription and enabling real-time production transparency.

Remote monitoring and diagnostics represent another dimension of data isolation that the HIEE300690R001 addresses within its system context. By maintaining relay output status data on the Advant backplane, the module’s contact state is continuously available to the controller’s diagnostic routines. Fault detection — including open-circuit detection, contact welding alarms, and coil drive failures — can be surfaced to the SCADA alarm management system in real time, enabling maintenance teams to respond proactively rather than reactively. This capability is particularly valuable in unmanned remote stations, offshore installations, and geographically distributed utility networks where on-site inspection is costly and infrequent.

Production line transparency is further enhanced when the relay output data is integrated with MES-level systems. By correlating relay switching events with production batch records, quality management systems can automatically log equipment activation sequences, calculate OEE metrics, and generate compliance documentation — transforming raw relay contact data into actionable manufacturing intelligence.

Industrial Connectivity FAQ

Q1: Is the HIEE300690R001 compatible with both the Advant OCS and the ABB Master DCS platform?
Yes. The HIEE300690R001 / AR-C093-AE01 is designed for the ABB Advant OCS and Master DCS subrack architecture. The HIEE prefix is characteristic of ABB’s Advant hardware generation, and the module is compatible with standard Advant subracks and backplane bus configurations used across both the Advant OCS and Master DCS product lines. Before installation, verify the subrack slot assignment and backplane bus version with your system documentation to ensure full compatibility.

Q2: Can this relay output card be integrated with PROFIBUS DP or Modbus RTU networks for SCADA connectivity?
The HIEE300690R001 communicates natively over the Advant backplane bus. Integration with PROFIBUS DP or Modbus RTU networks requires a compatible communication gateway module — such as the ABB CI854A for PROFIBUS or a third-party Modbus gateway — installed within the same or a connected Advant subrack. Once bridged, relay output status and command data can be made available to SCADA, DCS historian, and MES systems over standard industrial protocols, enabling full plant-wide data integration.

Q3: What testing and quality assurance procedures are applied before shipment?
Every HIEE300690R001 unit supplied by ZYPLC undergoes a multi-stage inspection process prior to shipment. This includes visual inspection for physical damage, contact resistance measurement on all relay channels, backplane connector integrity verification, and functional switching tests under rated load conditions. Units are supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Detailed test records are available upon request for quality-critical applications.

Q4: How does the 12-Month Warranty apply to long-lead or project-based procurement?
The 12-Month Warranty period commences from the date of shipment. For project-based procurement where installation may occur weeks or months after delivery, ZYPLC recommends documenting the installation date and retaining the original shipment records. Warranty claims are processed based on the shipment date, and ZYPLC’s technical team is available to support troubleshooting, replacement coordination, and system compatibility verification throughout the warranty period. Contact [email protected] for warranty registration and support.
