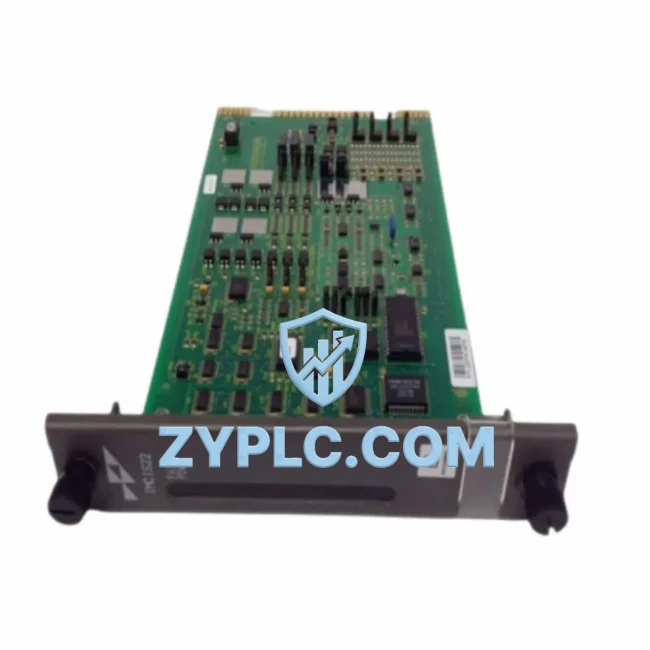

ABB IMCIS22 System-Ready Communication Interface for S800 I/O Architecture

ABB IMCIS22 System-Ready Communication Interface for S800 I/O Architecture

The ABB IMCIS22 is a dedicated communication interface module engineered for seamless integration within the S800 I/O distributed control architecture. Rather than functioning as a standalone component, the IMCIS22 occupies a critical position in the layered automation hierarchy — bridging the field I/O layer with the process control layer through a robust, deterministic communication backbone. In modern industrial control environments, where system consistency, scalability, and long-term maintainability are paramount, the IMCIS22 delivers the contextual integration capability that engineers and system architects demand.

Designed to operate within ABB’s proven S800 I/O platform, the IMCIS22 supports high-density signal management across multiple I/O stations while maintaining synchronization with the central controller. Its architecture is optimized for use alongside the AC800M controller family, where it enables reliable data exchange between field devices and the supervisory control layer. The module’s communication protocol compatibility ensures that it can be deployed in both new installations and retrofit projects without compromising system integrity.

Within a complete control system architecture, the IMCIS22 interfaces directly with S800 I/O modules such as the AI810, AO810, DI810, and DO810 analog and digital I/O modules, coordinating signal acquisition and command distribution across the I/O bus. The module’s role in the I/O layer is to aggregate field signals and relay them upstream to the AC800M CPU module via the Modulebus or PROFIBUS DP communication interface, depending on the system configuration. This layered signal flow ensures that process variables are accurately captured and control outputs are executed with minimal latency.

From a system architecture perspective, the IMCIS22 contributes directly to redundancy design. In high-availability applications — such as power generation, petrochemical processing, or water treatment — the module can be deployed in redundant I/O station configurations alongside the TB820V2 Modulebus Modem, ensuring that a single point of failure in the communication path does not interrupt process control. This redundancy capability is essential for SIL-rated applications and continuous process industries where unplanned downtime carries significant operational and safety consequences.

The module’s compatibility with the S800 I/O backplane system allows engineers to expand I/O capacity incrementally, adding new I/O stations as process requirements evolve without redesigning the control architecture. This modularity is a key advantage in large-scale automation projects, where phased commissioning and future capacity planning are standard engineering considerations. The IMCIS22 supports this expansion model by maintaining consistent communication performance regardless of the number of connected I/O stations within the specified system limits.

In the network layer, the IMCIS22 integrates with the broader plant communication infrastructure through compatibility with PROFIBUS DP and Modulebus protocols, enabling connectivity to SCADA systems, historian servers, and engineering workstations running ABB’s System 800xA platform. This connectivity supports real-time process monitoring, alarm management, and historical data logging — functions that are central to modern distributed control system operations. The module’s network-layer role ensures that field data is available to all levels of the automation hierarchy, from the field device to the enterprise information system.

For engineering teams responsible for long-term system maintenance, the IMCIS22 offers significant advantages in terms of spare parts management and lifecycle planning. Its compatibility with the established S800 I/O ecosystem means that replacement modules can be sourced and installed without requiring firmware reconfiguration or system recalibration, reducing mean time to repair (MTTR) in the event of a module failure. This maintainability characteristic is particularly valuable in remote or hazardous installations where on-site engineering resources are limited.

All IMCIS22 modules supplied by ZYPLC are covered by a 12-Month Warranty, with each unit tested prior to shipment to verify communication integrity, signal accuracy, and compatibility with the S800 I/O platform. Our inventory is maintained to support urgent project timelines and emergency replacement requirements across manufacturing, energy, mining, metallurgy, and process control industries.

Architecture Specification Table

Coordinated Control System Design

The IMCIS22 achieves its full value when considered within the context of a coordinated, multi-layer control system. At the control layer, the ABB AC800M PM864 or PM866 CPU module serves as the central processing unit, executing control logic and managing communication with all connected I/O stations through the Modulebus network. The IMCIS22 acts as the communication gateway between the CPU and the S800 I/O field stations, ensuring that scan cycle times remain consistent and deterministic even as the system scales.

At the power layer, the ABB SD821 or SD822 power supply modules provide the regulated 24 VDC required by the S800 I/O station, including the IMCIS22 and all connected I/O modules. Proper power supply sizing and redundancy planning — often implemented with dual SD822 units in parallel — are essential to maintaining system availability in critical process applications.

The I/O layer surrounding the IMCIS22 typically includes a combination of AI810 analog input modules, AO810 analog output modules, DI810 digital input modules, and DO810 digital output modules, all mounted on the S800 I/O backplane and communicating through the IMCIS22 to the controller. For applications requiring intrinsically safe signal conditioning, the AI820 HART-compatible analog input module can be integrated into the same I/O station.

At the network layer, the TB820V2 Modulebus Modem extends the Modulebus communication distance between the controller cabinet and remote I/O stations, enabling distributed I/O architectures across large plant footprints. This is particularly relevant in petrochemical and power generation facilities where field devices may be located hundreds of meters from the control room.

For human-machine interface requirements, the system architecture typically incorporates ABB’s System 800xA operator workstations or third-party SCADA platforms connected via OPC DA/UA interfaces, providing operators with real-time process visualization, alarm management, and historical trending capabilities that depend on the reliable data flow enabled by the IMCIS22.

Application in Layered Automation Systems

The IMCIS22 is deployed across a wide range of industrial sectors where distributed I/O architecture and reliable field communication are fundamental requirements. In power generation and transmission facilities, the module supports turbine control, boiler management, and substation automation systems where signal integrity and communication redundancy are non-negotiable. In petrochemical and refinery applications, the IMCIS22 enables precise process variable monitoring across reactor control, distillation column management, and pipeline pressure regulation systems.

In water and wastewater treatment plants, the module’s compatibility with the S800 I/O platform supports pump station control, chemical dosing systems, and filtration process automation, where continuous operation and remote monitoring are essential. In mining and metallurgical operations, the IMCIS22 is integrated into conveyor control systems, crusher automation, and smelting process control architectures, where harsh environmental conditions demand robust, industrial-grade communication hardware.

For packaging and discrete manufacturing production lines, the module supports high-speed I/O scanning and coordinated motion control integration, enabling the precise timing and sequencing required in automated assembly and quality inspection systems. In all these applications, the IMCIS22’s role as a communication interface module ensures that the control system architecture remains coherent, scalable, and maintainable throughout the operational lifecycle of the plant.

Architecture Engineering FAQ

Q1: Is the IMCIS22 compatible with both redundant and non-redundant S800 I/O station configurations?
Yes. The IMCIS22 supports both standard and redundant I/O station configurations within the S800 I/O platform. In redundant configurations, two IMCIS22 modules are installed in the same I/O station, with the TB820V2 Modulebus Modem providing the redundant communication path to the AC800M controller. The system automatically switches to the backup communication path in the event of a primary module failure, ensuring uninterrupted process control.

Q2: Can the IMCIS22 be integrated into an existing S800 I/O system without requiring a full system reconfiguration?
Yes. The IMCIS22 is designed for drop-in compatibility with existing S800 I/O installations. Replacement or expansion installations typically require only physical module insertion and address configuration, without necessitating changes to the AC800M controller application software or I/O module assignments. This characteristic significantly reduces commissioning time and minimizes the risk of configuration errors during system upgrades or emergency replacements.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, communication failures, and hardware malfunctions under normal operating conditions. Each module is tested prior to shipment to verify full functional compliance with ABB S800 I/O system specifications. ZYPLC maintains a dedicated inventory of IMCIS22 modules and related S800 I/O components to support both planned maintenance schedules and emergency replacement requirements, with expedited shipping available for critical process applications.
