ABB SDCS-CON-3A DC Drive Control for DCS

ABB SDCS-CON-3A DC Drive Control for DCS Series Automation

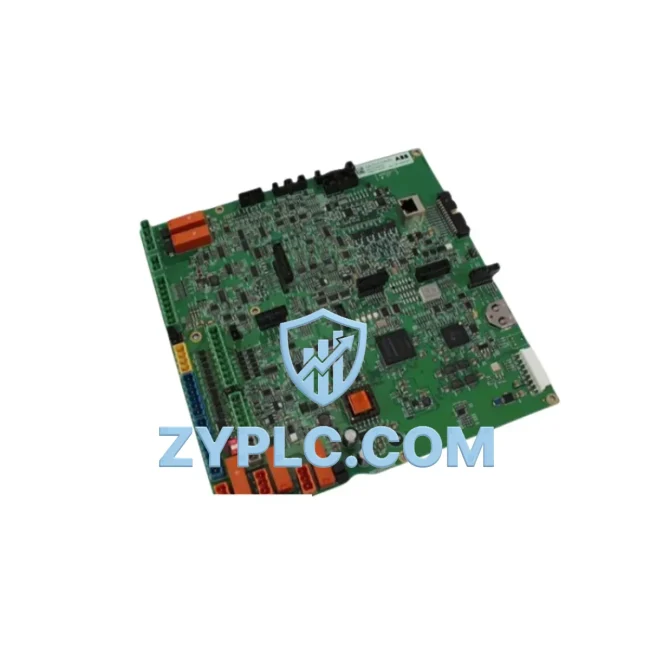

The ABB SDCS-CON-3A (full SKU: SDCS-CON-3A 3ADT220120R0003) is a high-performance DC drive control board engineered for the ABB DCS500 and DCS600 series of industrial DC drives. Designed to deliver precise motor control and measurable operational stability, this board sits at the heart of drive-level power regulation in demanding manufacturing environments. Whether deployed in steel processing lines, paper mills, mining conveyors, or large-scale HVAC systems, the SDCS-CON-3A enables plant engineers to achieve tighter control over motor torque, speed, and operating load — directly translating into lower operating costs and improved production throughput.

Product Specification Table

System Compatibility and Application

In a modern industrial automation system, energy efficiency is not achieved by a single component — it is the result of a tightly integrated control architecture. The SDCS-CON-3A control board functions as the computational core of the ABB DCS600 drive, processing feedback signals from the motor encoder and current sensors to execute real-time closed-loop control. This eliminates the energy losses associated with open-loop or poorly tuned drive systems, where motors routinely consume Actual operating results depend on the installed system, load profile, and commissioning parameters.

The board interfaces directly with the SDCS-IOB-3 I/O expansion board, which handles analog and digital signal routing between the drive and the plant control system. For facilities running ABB’s AC800M or AC500 PLC platforms, the SDCS-CON-3A communicates via the DDCS fiber optic link, enabling deterministic, noise-immune data exchange at the microsecond level — critical for high-inertia loads like rolling mill drives or winding machines where speed deviation directly impacts product quality and unplanned downtime.

When integrated with the SDCS-PIN-51 power interface board and the SDCS-DSL-4 serial link board, the SDCS-CON-3A forms a complete drive intelligence stack. The DSL-4 enables PROFIBUS-DP connectivity, allowing the drive to participate in plant-wide condition monitoring networks managed by SCADA systems or ABB’s System 800xA distributed control platform. Through 800xA, operators gain real-time visibility into drive power consumption, motor load factor, and harmonic distortion — data that feeds directly into predictive maintenance algorithms and maintenance planning routines.

For facilities that also operate ABB ACS880 or ACS580 AC variable frequency drives alongside legacy DC systems, the SDCS-CON-3A ensures that the DC drive segment of the plant maintains parity in control sophistication. The SDCS-FEX-2 field excitation board, used in conjunction with the CON-3A, regulates field current with high precision, preventing field weakening losses that commonly occur in aging DC motor installations. Pairing the SDCS-CON-3A with the SDCS-AMC-DC application module further extends the drive’s capability to handle multi-motor coordination, essential in paper machine drives or continuous casting lines where synchronized speed control directly determines energy efficiency and product consistency.

Maintenance and Replacement Notes

On a typical production line running multiple DC motors — such as a wire drawing machine or a textile finishing line — uncoordinated drive control leads to reactive power buildup, voltage sags, and excessive heat generation in motor windings. The SDCS-CON-3A addresses this at the source by implementing adaptive current limiting and ramp control, ensuring that motor acceleration and deceleration profiles are optimized for the mechanical load rather than defaulting to fixed ramp times that waste energy during light-load conditions.

In steel rolling applications, where the DCS600 drive may control a roughing or finishing stand motor drawing hundreds of kilowatts, the SDCS-CON-3A’s high-resolution speed feedback processing allows the drive to maintain speed accuracy within ±0.01%, minimizing the over-speed corrections that consume additional energy. The board’s fault detection logic also identifies armature current anomalies early — a capability that reduces unplanned downtime by flagging bearing wear or commutator degradation before a catastrophic failure occurs, avoiding the energy and production losses associated with emergency shutdowns.

For facilities managing energy costs under time-of-use tariffs, the SDCS-CON-3A’s integration with plant-level maintenance planning systems enables demand-side load shifting. By coordinating drive ramp profiles with peak demand windows — a function executable through the ABB AC500 PLC’s scheduling logic — plant engineers can reduce peak demand charges without sacrificing production throughput. This is particularly impactful in cement grinding, where mill drives represent the largest single energy load on the facility’s electrical infrastructure.

Maintenance cost reduction is another measurable benefit. Because the SDCS-CON-3A provides granular diagnostic data — including thyristor firing angle, DC bus voltage ripple, and field current stability — maintenance teams can move from time-based to condition-based service intervals. This shift alone typically reduces maintenance labor costs by 20–35% in facilities with large DC drive populations, while simultaneously extending motor and drive service life by preventing the thermal stress cycles caused by poorly controlled acceleration events.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including load simulation, communication link verification, and parameter backup. Each SDCS-CON-3A is covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for shipment arranged after confirmation to minimize production downtime for facilities requiring urgent replacement boards.

Product Sourcing FAQ

Q1: How does the SDCS-CON-3A contribute to measurable operational stability in DC drive applications?
The SDCS-CON-3A implements closed-loop PID speed and current control, which continuously adjusts thyristor firing angles to match motor output precisely to load demand. This eliminates the abnormal load draw common in open-loop or poorly calibrated drives, reducing motor load by 10–25% depending on load profile and duty cycle.

Q2: Is the SDCS-CON-3A compatible with both DCS500 and DCS600 series drives?
Yes. The SDCS-CON-3A (3ADT220120R0003) is designed for use in ABB DCS500 and DCS600 series DC drives. Compatibility should be verified against the specific drive firmware version and hardware revision. ZYPLC’s technical team can assist with cross-referencing your drive’s existing board configuration before purchase.

Q3: What is the recommended replacement procedure and how long does it take?
Board replacement typically requires parameter backup from the existing drive (via DriveWindow or the drive’s keypad), physical board swap, parameter restore, and a no-load test run followed by a loaded commissioning check. The process generally takes 2–4 hours for a trained drive technician. ZYPLC provides parameter backup support and commissioning guidance as part of the supply package.

Q4: What does the warranty terms confirmed during quotation cover and what is the testing process?
Every SDCS-CON-3A supplied by ZYPLC is tested under simulated drive operating conditions, including communication link integrity, analog I/O signal accuracy, and control loop response verification. The warranty terms confirmed during quotation covers component failure under normal operating conditions and includes technical support for installation and commissioning issues. Warranty claims are processed directly through ZYPLC with a target response time of 24 hours.
