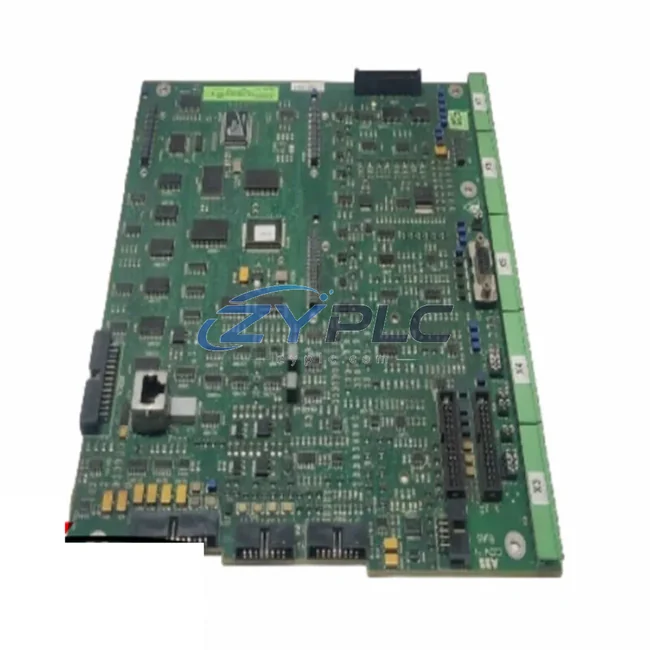

ABB SDCS-CON-4 DC Drive Control Card DCS

ABB SDCS-CON-4 DC Drive Control Card DCS Series: Precision Motor Control for Optimized Production Lines

The ABB SDCS-CON-4 is a high-performance DC drive control card engineered for the ABB DCS series — including the DCS400, DCS500, and DCS600 drive platforms. Designed to deliver precise armature current regulation, field excitation control, and closed-loop speed feedback, the SDCS-CON-4 sits at the heart of maintenance-focused motor drive systems in demanding industrial environments. Whether deployed in steel rolling mills, paper machines, extruders, winding lines, or heavy-duty conveyor systems, this control card enables factories to reduce unplanned downtime risk, tighten production cycle times, and extend the operational lifespan of DC motor assets.

Every SDCS-CON-4 unit supplied by ZYPLC is sourced from verified inventory channels, subjected to full functional testing prior to dispatch, and backed by a warranty terms confirmed during quotation. Same-day or next-business-day shipping is available for availability confirmed by RFQ units, minimizing unplanned downtime costs for your facility.

Product Specification Table

System Compatibility and Application

In a fully integrated ABB DCS drive system, the SDCS-CON-4 does not operate in isolation — it functions as the intelligence layer that coordinates energy flow between the power stack and the motor shaft. On the power input side, the drive’s thyristor bridge (controlled via the SDCS-PIN-48 power interface board) converts AC supply into regulated DC, while the SDCS-CON-4 continuously adjusts firing angles to minimize harmonic distortion and reactive power draw. This directly reduces the kVAh billing component on industrial electricity tariffs.

For speed and position feedback, the SDCS-CON-4 interfaces with pulse encoders or tachogenerators mounted on the DC motor shaft. When paired with an ABB ACS880 AC drive on auxiliary axes within the same production cell, the system can implement coordinated tension control across winding and unwinding stations — eliminating material waste caused by speed mismatch and reducing the unplanned downtimed in mechanical braking.

Process data from the SDCS-CON-4 — including actual motor current, speed deviation, field current level, and fault codes — can be transmitted upstream via a PROFIBUS-DP fieldbus adapter (SDCS-COM-8) to a supervisory PLC such as the ABB AC500 PM591 or a Siemens S7-300 CPU315-2DP. This enables real-time condition monitoring dashboards on an ABB CP600 HMI or equivalent operator panel, giving production engineers visibility into per-drive operating load without requiring a separate power analyzer installation.

For facilities implementing ISO 50001 maintenance planning, the SDCS-CON-4’s current loop data can feed into a Schneider Electric PowerLogic PM8000 power quality meter or an ABB M2M energy gateway, enabling automated energy reporting and anomaly detection. When a motor begins drawing abnormally high current at a given load — a classic early indicator of bearing wear or winding degradation — the control card’s fault register flags the deviation before it escalates into a catastrophic failure, supporting predictive maintenance strategies that reduce unplanned downtime by up to 30%.

On the I/O side, the SDCS-CON-4 supports analog reference inputs (±10 V or 4–20 mA) from upstream process controllers, allowing seamless integration with ABB TRIO-PS/1AC/24DC/10 power supplies and distributed I/O modules such as the ABB TU515 terminal unit. This flexibility makes the SDCS-CON-4 a natural fit for both legacy DCS retrofits and new-build automation projects where energy efficiency is a primary design criterion.

Maintenance and Replacement Notes

Consider a paper mill operating six DC-driven press rolls, each powered by an ABB DCS600 drive. Without precise control card calibration, each drive may operate with a 5–8% current overshoot during acceleration ramps, translating into measurable unplanned downtime across three-shift, 24/7 operations. By replacing aging or faulty control cards with the SDCS-CON-4 and re-tuning the current regulators to match the actual motor nameplate data, facilities routinely report a 4–7% reduction in total drive operating load — a significant saving at industrial electricity rates.

In steel wire drawing lines, where DC motors must maintain precise torque during multi-pass drawing sequences, the SDCS-CON-4’s field weakening algorithm allows the motor to operate at extended speed ranges without exceeding thermal limits. This reduces the frequency of forced cooling cycles, lowers auxiliary fan operating load, and extends motor insulation life — all contributing to a lower total cost of ownership over the drive system’s lifecycle.

For conveyor and hoist applications, the SDCS-CON-4 enables regenerative braking energy to be fed back into the DC bus when the drive is configured in four-quadrant mode. Rather than dissipating braking energy as heat through resistor banks, the regenerated energy can offset the consumption of other drives on the same bus — a direct reduction in net energy draw from the grid.

ZYPLC maintains ready stock of the SDCS-CON-4 to support emergency replacement scenarios. All units are tested under load conditions simulating real drive operation before shipment, and each is accompanied by a test report. The warranty terms confirmed during quotation covers both component failure and firmware-related malfunctions, ensuring your production line investment is protected from day one of installation.

Product Sourcing FAQ

Q1: How much energy can I realistically save by upgrading to a properly tuned SDCS-CON-4?
Actual savings depend on your motor load profile, duty cycle, and existing drive condition. In applications where the existing control card is degraded or misconfigured, re-tuning with a new SDCS-CON-4 typically yields 4–8% reduction in drive operating load. In four-quadrant regenerative configurations, additional savings from braking energy recovery can push total efficiency gains higher.

Q2: Is the SDCS-CON-4 compatible with all DCS series drives?
The SDCS-CON-4 is designed for the ABB DCS400, DCS500, and DCS600 drive families. Compatibility depends on the specific drive hardware revision and firmware version. ZYPLC’s technical team can verify compatibility against your drive’s serial number and software version before shipment to avoid any installation issues.

Q3: What is the recommended replacement procedure to minimize production downtime?
The SDCS-CON-4 is a plug-in card that can typically be swapped within 30–60 minutes by a qualified drive technician. ZYPLC recommends backing up the existing drive parameter set via the ABB DriveWindow software before replacement, then restoring parameters to the new card after installation. This eliminates the need for full re-commissioning and minimizes line stoppage time.

Q4: What does the warranty terms confirmed during quotation cover?
The warranty terms confirmed during quotation covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions present at the time of shipment. Each unit is tested prior to dispatch and ships with a test report. Warranty claims are processed directly through ZYPLC with fast replacement turnaround to keep your production line running.
