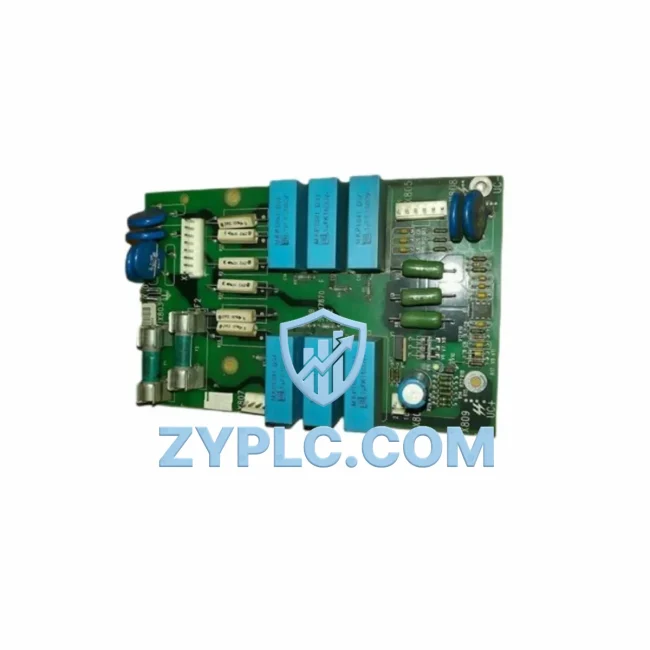

ABB SNAT7901 DFD Drive Control for ACS/DCS

ABB SNAT7901 DFD Drive Control for ACS/DCS: Compatibility and Replacement Notes

In modern industrial automation, the reliability of a drive control board is not measured in isolation — it is measured by how seamlessly it integrates into the full control system architecture. The ABB SNAT7901 DFD is a drive control board engineered for deployment within ABB’s ACS and DCS drive platforms, serving as the central signal processing and regulation layer between the controller hierarchy and the power conversion stage. Its role spans the control layer, I/O layer, and execution layer simultaneously, making it a structurally critical component in any layered automation system.

When deployed alongside an ABB AC500 series PLC or a DCS800 digital DC drive controller, the SNAT7901 DFD receives speed reference, torque command, and enable signals from the upper control layer via the drive’s internal backplane bus. It processes these inputs through its onboard DSP regulation circuits and outputs precise PWM gate drive signals to the IGBT or thyristor power modules in the execution layer. This closed-loop signal flow — from controller to drive board to power stage — is the backbone of any high-performance motor control architecture.

The board is designed to operate within ABB’s modular drive cabinet systems, where it interfaces directly with the AINT or RDCO communication adapter boards for DDCS fiber-optic fieldbus connectivity. This allows the SNAT7901 DFD to participate in multi-drive architectures where a single master controller coordinates multiple drive axes across a DDCS ring topology. In such configurations, the board’s deterministic response time and stable regulation performance are essential for maintaining synchronization across axes — a requirement common in winding lines, paper machines, and rolling mill applications.

From an I/O layer perspective, the SNAT7901 DFD interfaces with analog and digital I/O extension modules mounted on the same drive chassis. Feedback signals from encoders, tachometers, or resolver modules are routed through the drive’s I/O backplane to the control board, where they are processed for closed-loop speed and position regulation. The board’s compatibility with ABB’s standard I/O expansion architecture means that engineers can extend the system’s feedback and monitoring capabilities without redesigning the control board layer.

In redundant drive architectures — common in critical process industries such as petrochemical, power generation, and water treatment — the SNAT7901 DFD supports hot-standby configurations where a secondary drive unit monitors the primary drive’s status. Should the primary drive fault, the secondary unit assumes control within milliseconds, maintaining process continuity. The control board’s parameter memory and communication interface allow the standby unit to remain synchronized with the active drive’s operating state at all times.

For system engineers managing long-term maintenance and spare parts inventory, the SNAT7901 DFD represents a standardized replacement component across multiple ABB drive generations. Its compatibility with ACS600, ACS800, and DCS800 platform variants means that a single board type can serve as a common spare across a mixed-generation drive fleet — reducing inventory complexity and improving maintenance response time. Combined with a 12-Month Warranty and full pre-shipment functional testing, the board provides the supply chain confidence required for critical infrastructure projects.

Product Specification Table

System Compatibility Notes

The SNAT7901 DFD does not operate as a standalone component — its value is realized through its coordination with the surrounding system architecture. In a typical ACS800 multi-drive installation, the board works in concert with the AINT-02 DDCS communication adapter, which provides the fiber-optic link to the master PLC or DCS controller. The RDCO-02 or RDCO-04 optical communication modules extend this connectivity across multi-cabinet drive systems, ensuring that the control board receives synchronized command signals regardless of physical cabinet distance.

On the power supply layer, the drive control board draws its operating power from the APOW-01 auxiliary power supply module, which provides regulated 24 VDC to the control electronics independently of the main DC bus voltage. This separation of control power from main power is a fundamental redundancy design principle — it ensures that the control board remains operational and capable of executing safe shutdown sequences even during main power disturbances.

The SNAT7901 DFD also coordinates with the IOEC I/O extension modules for process signal acquisition. In applications requiring high-resolution speed feedback, the RTAC-01 pulse encoder interface module provides the necessary signal conditioning between the encoder and the control board’s feedback input. For applications requiring analog process variable feedback — such as pressure, flow, or temperature — the IOEC modules provide the analog input channels that feed into the drive’s PID regulation function, which is executed on the SNAT7901 DFD itself.

In cabinet-level integration, the control board interfaces with the NDIO digital I/O module for external control signal routing — start/stop commands, fault reset signals, and status outputs to the plant SCADA system. The NPBA-12 PROFIBUS adapter or NETA-21 remote monitoring tool can be added to the drive system to extend supervisory connectivity to higher-level control systems, with the SNAT7901 DFD serving as the execution core that responds to commands from these communication layers.

Industrial Application Notes

In steel rolling mill applications, the SNAT7901 DFD is deployed in DCS800 DC drive systems controlling main roll drive motors. The board’s high-bandwidth torque regulation capability supports the rapid load changes characteristic of rolling mill pass schedules, while its DDCS communication interface allows the mill automation system to coordinate speed references across multiple drive stands in real time. The 12-Month Warranty provides the procurement assurance required for capital equipment projects in the metals industry.

In petrochemical and refinery applications, the board is used in ACS800 drives controlling compressor and pump motors in hazardous area installations. The drive system’s redundant control architecture — enabled by the SNAT7901 DFD’s hot-standby compatibility — meets the process safety requirements of SIL-rated control loops. system integration with the plant DCS via PROFIBUS or DDCS ensures that the drive system participates fully in the plant-wide safety instrumented system.

In water treatment and municipal infrastructure applications, the board supports variable speed pump and blower drives where energy efficiency and process stability are primary requirements. The drive’s PID regulation function, executed on the SNAT7901 DFD, allows direct closed-loop control of flow or pressure without requiring a separate process controller — simplifying the control architecture and reducing system component count.

In packaging and material handling lines, the board enables coordinated multi-axis motion control through the DDCS master-follower architecture. Multiple ACS800 drives, each equipped with an SNAT7901 DFD, operate as follower axes under a single master drive or PLC, maintaining precise speed ratios across conveyor sections, winding stations, and registration control zones.

Product Compatibility FAQ

Q1: Is the SNAT7901 DFD compatible with both ACS600 and ACS800 drive platforms, and what verification steps are required before installation?
The SNAT7901 DFD is designed for use within ABB’s ACS and DCS drive families, with primary compatibility across ACS600, ACS800, and DCS800 platform variants. Before installation, engineers should verify the drive’s hardware revision level and firmware version against ABB’s compatibility matrix for the specific drive type code. The board’s parameter set should be backed up from the existing control board using the ABB DriveWindow or Drive Composer tool prior to replacement, and the replacement board should be configured with the same parameter set to ensure seamless system continuity. Our pre-shipment functional test confirms board operability, and the 12-Month Warranty covers any latent defects identified during commissioning.

Q2: How does the SNAT7901 DFD support system redundancy, and what is the recommended architecture for critical process applications?
For critical process applications requiring high availability, the recommended architecture pairs the SNAT7901 DFD-equipped primary drive with a fully configured standby drive unit connected via the DDCS fiber-optic ring. The standby drive monitors the primary drive’s status through the DDCS communication link and is pre-loaded with identical parameters. In the event of a primary drive fault, the master PLC or DCS controller switches the speed reference and enable signals to the standby drive within one control scan cycle. This architecture, combined with the APOW-01 independent control power supply, ensures that the control layer remains operational through main power disturbances and drive hardware faults. system integration with the plant safety system via hardwired I/O or PROFIBUS provides an additional layer of fault response coordination.

Q3: What is the recommended spare parts and long-term maintenance strategy for installations using the SNAT7901 DFD?
For installations with multiple ACS800 or DCS800 drives, the recommended strategy is to maintain one SNAT7901 DFD as a common spare for every five to ten drive units, given the board’s cross-platform compatibility. The board should be stored in its original anti-static packaging in a temperature-controlled environment (0°C to +40°C, <95% RH non-condensing). Periodic inspection of the drive’s cooling system — including the fan modules and heat sink — is recommended to prevent thermal stress on the control board. All spare boards supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, with full functional test documentation provided. For long-term supply continuity, ZYPLC maintains dedicated inventory of SNAT7901 DFD boards to support ongoing maintenance requirements.
