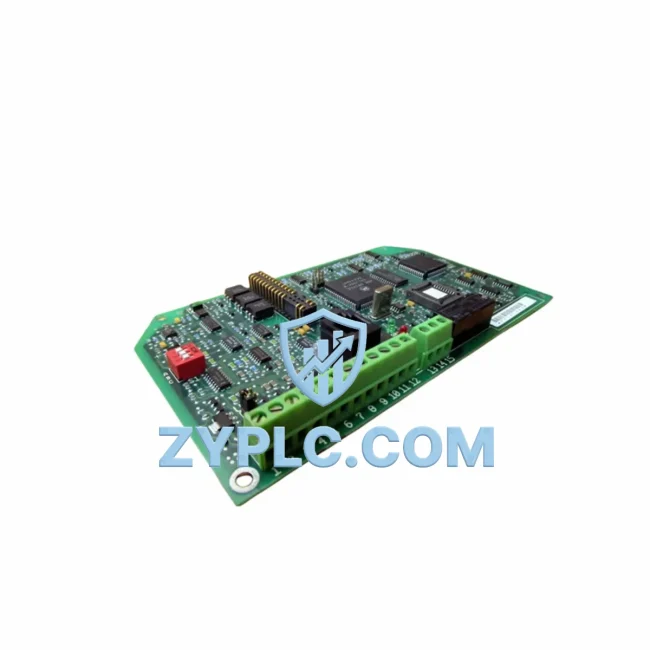

ABB SNAZ-812 F System-Ready Digital Output for S800 Architecture

ABB SNAZ-812 F System-Ready Digital Output for S800 Architecture: Control Layer Coordination and Downstream Signal Integrity

In modern distributed control systems, the reliability of digital output modules is not measured in isolation — it is measured by how seamlessly they integrate into the full control architecture. The ABB SNAZ-812 F is a digital output module engineered for deployment within ABB’s S800 I/O platform, designed to serve as a precise, high-integrity signal interface between the control layer and field-level actuators. Whether the application involves discrete valve control, motor starter commands, or relay-driven switching in process industries, the SNAZ-812 F delivers consistent output performance that supports both system-level redundancy and long-term operational stability.

Understanding the SNAZ-812 F requires understanding the architecture it inhabits. ABB’s S800 I/O system is a modular, rack-based distributed I/O platform that connects to AC800M process controllers via high-speed fieldbus communication. Within this architecture, the SNAZ-812 F occupies the I/O layer — translating controller-level logic commands into discrete 24 VDC output signals that drive field devices. Its role is not peripheral; it is a critical node in the signal flow from the CPU to the execution layer.

Architecture Specification Table

Coordinated Control System Design

The SNAZ-812 F does not operate as a standalone component — it functions as part of a tightly coordinated control system where every module plays a defined role. In a typical S800-based automation architecture, the PM866K01 or PM864AK01 AC800M process controller sits at the top of the control hierarchy, executing the application logic and issuing output commands at scan-cycle intervals. These commands travel through the CI854AK01 PROFIBUS DP communication interface module, which bridges the controller backplane to the distributed I/O network.

At the I/O level, the SNAZ-812 F is mounted on a TU830V1 termination unit, which provides the physical wiring interface between the module’s output channels and the field cable terminations. Adjacent to the SNAZ-812 F in the same I/O station, you will typically find analog input modules such as the AI810 for 4–20 mA process signal acquisition, and analog output modules such as the AO810 for continuous control of control valves and variable-speed drives. Digital input modules like the SD802F complement the SNAZ-812 F by capturing discrete feedback signals — limit switch states, motor run confirmations, and interlock status — completing the closed-loop control path.

For applications requiring high-availability architecture, the S800 platform supports redundant fieldbus communication via dual CI854AK01 modules operating in parallel, ensuring that a single communication path failure does not interrupt output command delivery to the SNAZ-812 F. The TB840A redundancy module further supports controller-level redundancy, allowing seamless bumpless transfer between primary and standby CPUs without disrupting the output state of the SNAZ-812 F channels.

At the power layer, the S800 I/O station is supplied by a dedicated 24 VDC power distribution rail, often fed through an SA801F power supply module that provides regulated, filtered DC power to the I/O baseplate. Proper power architecture ensures that transient loads from output switching do not introduce noise into the analog signal chain. At the human-machine interface layer, operator workstations running ABB’s 800xA System provide real-time visualization of output channel states, alarm management, and remote forcing capability for commissioning and maintenance operations.

Application in Layered Automation Systems

The SNAZ-812 F finds application across a broad range of process and discrete manufacturing industries where reliable digital output control is essential to operational continuity.

In oil and gas and petrochemical plants, the SNAZ-812 F drives solenoid valves on emergency shutdown (ESD) systems, controlling the open/close state of isolation valves in response to safety logic executed by the AC800M controller. Its deterministic output response time supports the tight timing requirements of safety instrumented systems (SIS) operating under IEC 61511 guidelines.

In power generation and electrical substation automation, the module provides discrete control signals to circuit breaker trip coils, motor-operated disconnect switches, and transformer tap changer actuators. The ability to mount multiple SNAZ-812 F modules on a shared S800 baseplate allows engineers to consolidate a large number of output points within a compact control cabinet footprint, reducing wiring complexity and improving panel layout efficiency.

In water and wastewater treatment facilities, the SNAZ-812 F controls pump start/stop commands, valve actuator signals, and chemical dosing system enable outputs. Its compatibility with the S800 I/O architecture allows plant operators to expand the I/O count incrementally as treatment capacity grows, without replacing the existing controller infrastructure.

In mining and minerals processing, the module is deployed in conveyor control systems, crusher interlock circuits, and ventilation fan control panels. The rugged industrial design of the S800 platform, combined with the SNAZ-812 F’s stable output characteristics, supports continuous operation in environments with elevated vibration, dust, and temperature variation.

In packaging and discrete manufacturing lines, the SNAZ-812 F interfaces with pneumatic cylinder solenoids, reject gate actuators, and machine safety relay inputs, providing the precise, repeatable output switching required for high-speed production line control.

Architecture Engineering FAQ

Q1: Is the SNAZ-812 F compatible with both redundant and non-redundant S800 I/O configurations?
Yes. The SNAZ-812 F is designed for use within the ABB S800 I/O platform and supports both standard single-path and redundant dual-path fieldbus configurations. In redundant architectures, the module continues to receive output commands from the active communication path without requiring any hardware modification. Redundancy is managed at the CI854AK01 communication interface level, making the SNAZ-812 F transparent to the redundancy switchover process.

Q2: What termination unit is required for the SNAZ-812 F, and can it be replaced without powering down the I/O station?
The SNAZ-812 F is typically mounted on a TU830V1 or compatible S800 termination unit, which provides the screw-terminal wiring interface for field cables. The S800 platform supports hot-swap module replacement, meaning the SNAZ-812 F can be removed and reinserted while the termination unit remains powered and the field wiring remains connected. This capability significantly reduces maintenance downtime and supports live system servicing during production operation.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
The 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults that arise during the warranty period, commencing from the date of shipment. Warranty claims are processed through direct contact with our technical support team. Upon receipt of a warranty claim, our engineers will conduct a preliminary remote diagnosis. If the fault is confirmed as warranty-eligible, a replacement unit will be dispatched and the defective module returned for inspection. For warranty inquiries, contact us at [email protected] or +86 19859288691.
