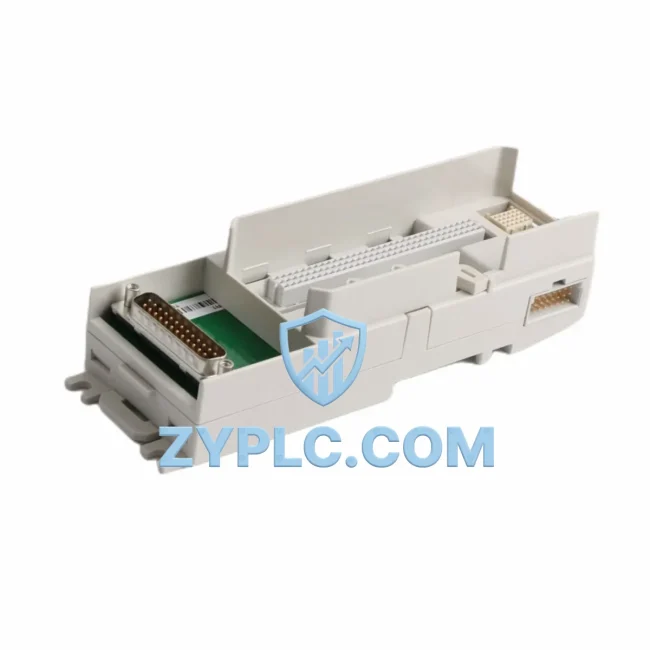

The ABB TU812V1 (3BSE013232R1) is a compact, high-density termination unit engineered specifically for integration within ABB’s S800 I/O system architecture. In modern distributed control environments — spanning manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and packaging lines — the reliability of field signal termination directly determines the integrity of the entire control loop. The TU812V1 addresses this requirement by providing a structured, system-consistent interface between field wiring and S800 I/O modules, enabling engineers to build scalable, maintainable, and redundancy-capable automation systems with confidence.

Unlike generic terminal blocks, the TU812V1 is designed as a native component of the S800 I/O platform, ensuring full Contextual Integration with ABB’s AC800M controller family and the broader System 800xA distributed control architecture. This native compatibility eliminates signal conditioning mismatches, reduces commissioning time, and supports long-term maintenance efficiency — all backed by a 12-Month Warranty.

Architecture Specification Table

Coordinated Control System Design

The TU812V1 does not operate in isolation — its value is realized within a fully coordinated S800 I/O system architecture. In a typical layered automation deployment, the AC800M controller (e.g., PM861A or PM864A) serves as the central processing unit, executing control logic and managing I/O communication across the S800 bus. The TU812V1 termination unit provides the physical field-wiring interface for I/O modules such as the AI810 analog input module, the DI810 digital input module, and the DO810 digital output module, all of which plug directly into the carrier and communicate upstream through the S800 I/O bus.

Power distribution within the cabinet is managed by the SD821 or SD822 power supply units, which deliver stable 24 VDC to the I/O bus and field devices. For applications requiring high availability, the TU812V1 supports hot-swap module replacement when used in conjunction with redundant I/O configurations, minimizing process interruption during maintenance cycles. Communication gateways such as the CI854A PROFIBUS DP interface module or the CI857 PROFIBUS interface extend the S800 system’s connectivity to field devices, variable frequency drives, and remote I/O stations.

At the human-machine interface layer, Panel 800 operator terminals or third-party SCADA systems connect to the AC800M via OPC DA/UA or Modbus TCP, providing real-time visualization of process variables terminated through the TU812V1. Relay output modules such as the RB820 relay module may be used downstream of digital output modules to interface with high-current actuators, solenoid valves, and motor starters. The TB820V2 termination board and TP830 terminal panel complement the TU812V1 in larger cabinet layouts where additional field wiring density is required.

This coordinated architecture — from controller to termination unit to field device — ensures signal integrity, system consistency, and straightforward fault isolation across the entire control hierarchy.

Application in Layered Automation Systems

In manufacturing and discrete automation, the TU812V1 is deployed in assembly line control panels where precise digital and analog I/O termination is required for proximity sensors, servo drives, and pneumatic actuators. Its compact DIN rail form factor allows high-density wiring in space-constrained enclosures without compromising signal quality.

In power generation and electrical utilities, the TU812V1 supports turbine control, generator excitation monitoring, and substation automation applications. Its compatibility with the AC800M controller and PROFIBUS DP communication ensures reliable integration into protection and control systems operating under IEC 61850 and IEC 61511 functional safety frameworks.

In petrochemical and refinery process control, the TU812V1 is used in distributed control cabinets managing flow, pressure, temperature, and level loops. Its native Contextual Integration with the System 800xA platform allows seamless engineering in ABB’s control builder environment, reducing configuration errors and accelerating loop checkout during plant commissioning.

In water and wastewater treatment, the TU812V1 supports SCADA-connected remote I/O panels at pump stations, filtration units, and chemical dosing systems. Its robust operating temperature range and IP20 protection make it suitable for climate-controlled utility control rooms.

In mining and metallurgical processing, the TU812V1 is integrated into conveyor control systems, crusher automation panels, and smelter process control cabinets, where long cable runs and high electromagnetic interference demand reliable, well-terminated field connections.

Architecture Engineering FAQ

Q1: Is the TU812V1 3BSE013232R1 compatible with all S800 I/O modules?
The TU812V1 is designed for use with the standard S800 I/O module range, including AI810, AO810, DI810, DI811, DO810, and DO814 modules. Compatibility with specific module variants should be verified against ABB’s S800 I/O system product guide. ZYPLC’s technical team can assist with cross-referencing your existing BOM to confirm system-level compatibility before procurement.

Q2: Can the TU812V1 be used in a redundant I/O architecture?
Yes. When configured within an S800 I/O redundant system using appropriate redundant module pairs and the AC800M redundant controller platform, the TU812V1 supports hot-swap module replacement. This allows field I/O modules to be replaced during live operation without interrupting process control, a critical requirement in continuous process industries such as petrochemicals and power generation.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
All TU812V1 3BSE013232R1 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains stock of S800 I/O system components to support ongoing maintenance and emergency replacement requirements. Our engineering team provides pre-sales technical consultation, installation guidance, and post-sales support to ensure your control system architecture remains operational throughout its lifecycle.
