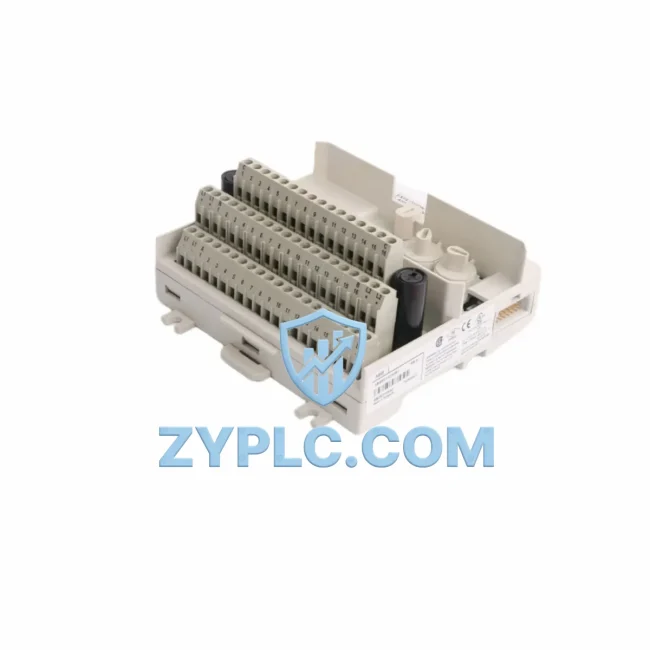

ABB TU830V1 3BSE013234R1 System-Ready Termination Unit for S800 I/O Architecture

ABB TU830V1 3BSE013234R1 System-Ready Termination Unit for S800 I/O Architecture

The ABB TU830V1 (3BSE013234R1) is a high-integrity termination unit engineered for seamless integration within ABB’s S800 I/O distributed control architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, and advanced manufacturing — the reliability of field signal termination directly determines the stability of the entire control loop. The TU830V1 serves as the critical mechanical and electrical interface between field wiring and the S800 I/O modules, enabling clean, organized, and maintainable signal routing across the full automation hierarchy.

Designed to operate within ABB’s System 800xA and Freelance DCS platforms, the TU830V1 integrates naturally into multi-layer control architectures where the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer must function as a coherent, synchronized system. Its modular design supports both greenfield installations and brownfield upgrades, allowing engineers to expand or reconfigure I/O capacity without disrupting live process operations. The unit’s robust construction ensures consistent signal integrity under demanding industrial conditions, including high-vibration environments, wide temperature ranges, and electrically noisy plant floors.

From a system architecture perspective, the TU830V1 is not simply a passive wiring block — it is an active participant in the S800 I/O ecosystem. When paired with AI810, AO810, DI810, or DO810 I/O modules, the termination unit provides the standardized mechanical interface that allows modules to be hot-swapped during maintenance without interrupting field wiring. This capability is fundamental to achieving high-availability architectures in continuous process industries where unplanned downtime carries significant operational and financial consequences.

The TU830V1 supports the S800 I/O system’s inherent redundancy capabilities. In redundant controller configurations using AC800M CPUs such as the PM861A or PM864A, the I/O subsystem must maintain uninterrupted signal acquisition even during controller switchover events. The TU830V1’s stable termination interface ensures that field signals remain continuously available to the redundant controller pair, preserving process visibility and control authority throughout any failover sequence. This makes it an indispensable component in safety-critical applications governed by IEC 61511 or IEC 62061 functional safety standards.

Inventory availability and supply chain continuity are equally important considerations for long-term plant operations. The TU830V1 3BSE013234R1 is maintained in verified stock with full functional testing completed prior to shipment. Each unit is backed by a 12-Month Warranty, providing procurement teams and plant engineers with the confidence needed for both immediate replacement requirements and planned maintenance programs. Fast global shipping ensures that critical spare parts reach site within the timeframes demanded by modern maintenance strategies.

Architecture Specification Table

Coordinated Control System Design

The TU830V1 achieves its full value when understood within the context of a complete ABB S800 I/O control system. At the controller level, the AC800M PM864A or PM866A CPU manages the overall process logic, communicating with distributed I/O stations via the S800 I/O bus. The TU830V1 termination unit provides the physical connection point at each I/O station, accepting field cables from sensors, transmitters, and actuators and presenting them to the corresponding I/O module in a clean, labeled, and maintainable format.

At the I/O module level, the AI810 analog input module and DI810 digital input module plug directly into the TU830V1, reading process variables from field instruments such as pressure transmitters, flow meters, and limit switches. On the output side, the AO810 analog output module and DO810 digital output module use the same termination interface to drive control valves, variable frequency drives, and solenoid actuators. This consistent mechanical interface across the entire S800 I/O family dramatically simplifies spare parts management and reduces the risk of wiring errors during module replacement.

For communication-intensive architectures, the CI854A PROFIBUS DP communication interface module and CI856A FOUNDATION Fieldbus interface module extend the S800 I/O system’s connectivity to field device networks, enabling integration with intelligent field devices such as HART-enabled transmitters and fieldbus valve positioners. The TU830V1’s role in this architecture is to ensure that the physical layer — the field wiring — remains stable and correctly terminated regardless of which communication protocol is active above it.

Power distribution within the control cabinet is managed by the SD821 or SD822 power supply units, which provide regulated 24VDC to the S800 I/O backplane and connected modules. The TU830V1 benefits from this stable power architecture by ensuring that field signal conditioning circuits within the I/O modules receive consistent supply voltage, minimizing measurement drift and improving signal accuracy over long operational periods. In redundant power configurations, dual SD821 units operating in parallel provide the power layer resilience required for continuous process applications.

At the human-machine interface layer, the PP865 or PP886 operator panels running System 800xA present real-time process data sourced ultimately from field signals terminated at units like the TU830V1. The integrity of the termination connection directly affects the quality of data displayed to operators, making the TU830V1 a foundational element of operational situational awareness. In engineering and commissioning workflows, the TU830V1’s clearly labeled terminal blocks and module-release mechanisms significantly reduce loop check times and accelerate project handover.

Application in Layered Automation Systems

In continuous process industries such as oil refining, chemical production, and power generation, the TU830V1 is deployed in distributed I/O cabinets located close to the process equipment, minimizing field cable runs and reducing signal attenuation. In these environments, the ability to replace an I/O module without disconnecting field wiring — enabled by the TU830V1’s design — is essential for maintaining process continuity during scheduled maintenance windows.

In discrete manufacturing and packaging lines, the TU830V1 supports high-density I/O configurations where large numbers of digital signals from proximity sensors, photoelectric sensors, and pneumatic valve feedback switches must be reliably terminated and monitored. The modular S800 I/O architecture, anchored by the TU830V1 termination unit, allows production engineers to expand I/O capacity as machine complexity grows without redesigning the control cabinet infrastructure.

In water and wastewater treatment facilities, where control systems must operate continuously for years between major maintenance interventions, the TU830V1’s robust construction and compatibility with ABB’s long-lifecycle S800 I/O platform provide the operational longevity required by municipal infrastructure operators. The 12-Month Warranty and verified pre-shipment testing give asset managers confidence in the reliability of replacement units sourced outside the original equipment manufacturer’s supply chain.

In mining and metals processing applications, where harsh environmental conditions and high electrical noise levels challenge signal integrity, the TU830V1’s compatibility with shielded cable termination practices and its integration within the S800 I/O system’s noise-rejection architecture ensure reliable signal acquisition from critical process instruments including belt scale transmitters, level sensors, and motor current monitors.

Architecture Engineering FAQ

Q1: Is the TU830V1 3BSE013234R1 compatible with all S800 I/O modules, and can it be used in redundant I/O configurations?
The TU830V1 is designed for use with the standard S800 I/O module family, including AI810, AO810, DI810, and DO810 series modules. For redundant I/O configurations, ABB provides specific redundant termination units within the S800 I/O range; engineers should verify the redundancy architecture requirements against the S800 I/O system product guide (3BSE020924) before selecting termination units. The TU830V1 is fully compatible with non-redundant I/O stations operating under redundant AC800M controller pairs.

Q2: Can the TU830V1 be installed in an existing S800 I/O system without interrupting live process operations?
Yes. The TU830V1’s design supports installation and module insertion in live S800 I/O systems. Field wiring connects to the termination unit’s terminal blocks independently of the I/O module, allowing the module to be inserted or removed without disconnecting field cables. This hot-swap capability is a core feature of the S800 I/O architecture and is supported when the system is configured correctly in System 800xA or Freelance engineering tools. Always follow ABB’s site safety procedures and obtain appropriate work permits before performing live system modifications.

Q3: What does the 12-Month Warranty cover, and what support is available for system integration and commissioning?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the S800 I/O system specifications. Each TU830V1 unit is fully tested prior to shipment to verify electrical continuity, mechanical integrity, and module interface compatibility. For system integration support, commissioning guidance, and architecture compatibility verification, contact the technical team directly at plc.sales@zyplc.com or +86 19859288691. Contextual Integration support is available to assist engineers in mapping the TU830V1 into existing control system architectures and verifying compatibility with installed S800 I/O configurations.
