ABB UFC719AE101 System-Ready IOEC I/O Interface for AC800M Architecture

ABB UFC719AE101 System-Ready IOEC I/O Interface for AC800M Control Architecture

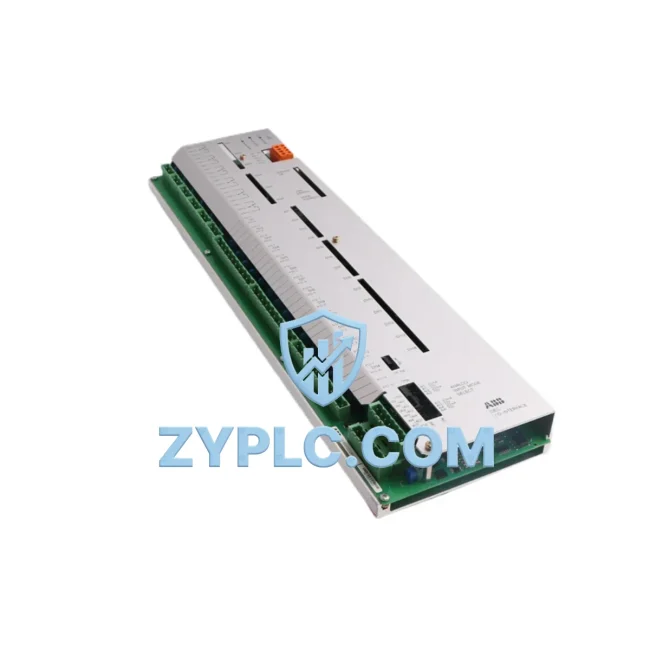

The ABB UFC719AE101 (part number 3BHB003041R0101) is a high-integrity IOEC I/O Extension Controller module engineered for seamless integration within ABB’s AC800M Distributed Control System (DCS) and Advant OCS platforms. Designed to operate as a critical node in the I/O layer of a layered automation architecture, this module enables deterministic signal acquisition, distribution, and transmission across multi-tier control environments. Its robust electrical design, compact form factor, and native compatibility with ABB’s proprietary communication infrastructure make it an indispensable component for engineers building, expanding, or maintaining large-scale process control systems in demanding industrial environments.

In modern industrial automation, the reliability of the I/O layer directly determines the integrity of the entire control loop. The UFC719AE101 addresses this requirement by providing a stable, high-density interface between field instrumentation and the central processing architecture. Whether deployed in a greenfield installation or integrated into an existing AC800M rack system, this module delivers consistent signal fidelity, reduced wiring complexity, and simplified commissioning — all of which translate into lower engineering hours and reduced lifecycle costs.

ZYPLC maintains verified stock of the UFC719AE101 with full functional testing, traceability documentation, and a 12-Month Warranty covering all hardware defects. Our inventory management process ensures that each unit shipped meets OEM-equivalent performance standards, supporting both urgent replacement scenarios and planned capital projects.

Architecture Specification Table

Coordinated Control System Design

The UFC719AE101 does not function in isolation — its value is realized through its role within a coordinated, multi-layer control architecture. In a typical AC800M-based DCS deployment, the UFC719AE101 operates as the primary I/O extension interface, connecting field-level instrumentation to the central controller via the IOEC bus. This positions it directly between the execution layer (actuators, drives, and final control elements) and the control layer (the AC800M CPU modules such as the PM861 or PM864).

On the power layer, the UFC719AE101 relies on stable 24 VDC supply delivered through the system backplane, typically sourced from ABB’s SD821 or SD823 power supply units. These PSUs are designed to provide redundant power paths, ensuring that a single power failure does not interrupt I/O signal processing. When paired with a redundant power configuration, the UFC719AE101 contributes to an overall system availability that meets the requirements of SIL-rated process environments.

At the I/O layer, the UFC719AE101 interfaces with a range of analog and digital I/O modules. Common companions in the same rack include the AI810 (8-channel analog input), AO810 (8-channel analog output), DI810 (digital input), and DO810 (digital output) modules. These modules share the IOEC bus managed by the UFC719AE101, which coordinates signal polling, error detection, and data forwarding to the CPU. This architecture allows engineers to scale I/O capacity incrementally without redesigning the control backbone.

For network-layer integration, the AC800M system typically employs communication modules such as the CI854 (PROFIBUS DP) or CI856 (FOUNDATION Fieldbus) to bridge the DCS with field devices operating on open industrial protocols. The UFC719AE101 complements these communication gateways by ensuring that locally connected I/O signals are processed and available to the CPU before being forwarded upstream to SCADA or historian systems via the plant network.

At the human-machine interface layer, operators interact with the system through ABB’s 800xA operator workstations or legacy Advant Station terminals. The data integrity maintained by the UFC719AE101 at the I/O level directly affects the accuracy of process displays, alarm management, and trend logging at the HMI layer. A well-configured IOEC network, anchored by reliable modules like the UFC719AE101, reduces nuisance alarms and improves operator confidence in process data.

For redundancy-critical applications, the UFC719AE101 can be deployed in configurations that support hot-standby I/O redundancy, working in conjunction with redundant CPU pairs and dual-ported I/O modules. This design pattern is common in power generation, oil & gas, and chemical processing facilities where unplanned downtime carries significant operational and safety consequences.

Application in Layered Automation Systems

Power Generation & Utilities: In thermal and hydroelectric power plants, the UFC719AE101 is deployed within turbine control and boiler management systems. Its ability to handle high-density analog signals from temperature transmitters, pressure sensors, and flow meters makes it well-suited for continuous process monitoring in environments where signal accuracy is directly linked to plant efficiency and safety compliance.

Oil, Gas & Petrochemical: Upstream and downstream petrochemical facilities rely on AC800M-based DCS architectures for wellhead control, pipeline monitoring, and refinery process management. The UFC719AE101 provides the I/O backbone for these systems, supporting long cable runs from remote field junction boxes and maintaining signal integrity in electrically noisy environments typical of hazardous area installations.

Water & Wastewater Treatment: Municipal and industrial water treatment plants use the AC800M platform for pump sequencing, chemical dosing, and effluent monitoring. The UFC719AE101 enables centralized I/O management across geographically distributed pump stations, reducing the need for local PLCs and simplifying network topology.

Mining & Metallurgy: In mineral processing and smelting operations, the UFC719AE101 supports conveyor control, crusher monitoring, and furnace temperature regulation. Its robust design tolerates the vibration, dust, and thermal cycling common in mining environments, while its compatibility with the AC800M platform ensures seamless integration with existing plant control infrastructure.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems benefit from the UFC719AE101’s deterministic I/O response times, which support precise synchronization between sensors, actuators, and motion controllers. Its modular architecture allows production engineers to add I/O capacity as line configurations evolve without disrupting existing control logic.

Architecture Engineering FAQ

Q1: Is the UFC719AE101 compatible with both AC800M and legacy Advant OCS systems?
Yes. The UFC719AE101 (3BHB003041R0101) is designed for use within ABB’s AC800M DCS platform and is also compatible with Advant OCS and MOD 300 architectures that utilize the IOEC bus and MasterBus 300 communication infrastructure. Before installation, engineers should verify the firmware revision of the host CPU module (e.g., PM861 or PM864) to confirm compatibility with the specific IOEC protocol version supported by the UFC719AE101. ZYPLC’s technical team can assist with compatibility verification prior to shipment.

Q2: Can the UFC719AE101 be installed in a redundant I/O architecture, and what additional components are required?
The UFC719AE101 supports deployment in redundant I/O configurations when paired with compatible dual-ported I/O modules and a redundant CPU pair within the AC800M platform. A typical redundant architecture requires two UFC719AE101 units operating in parallel, each connected to a separate CPU module via independent IOEC bus segments. Power redundancy is achieved through dual SD821 or SD823 power supply units feeding the backplane. System integrators should consult ABB’s AC800M Hardware Configuration Manual for rack layout requirements and bus termination specifications before commissioning a redundant I/O network.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
ZYPLC’s 12-Month Warranty covers all hardware defects identified under normal operating conditions, including component failures, communication faults attributable to the module, and physical defects present at the time of shipment. The warranty period begins from the date of delivery. For long-term maintenance planning, ZYPLC maintains ongoing inventory of the UFC719AE101 and related AC800M components, enabling rapid replacement in the event of field failures. Our technical support team is available to assist with installation guidance, fault diagnosis, and spare parts planning to minimize system downtime across the full lifecycle of your control architecture.
