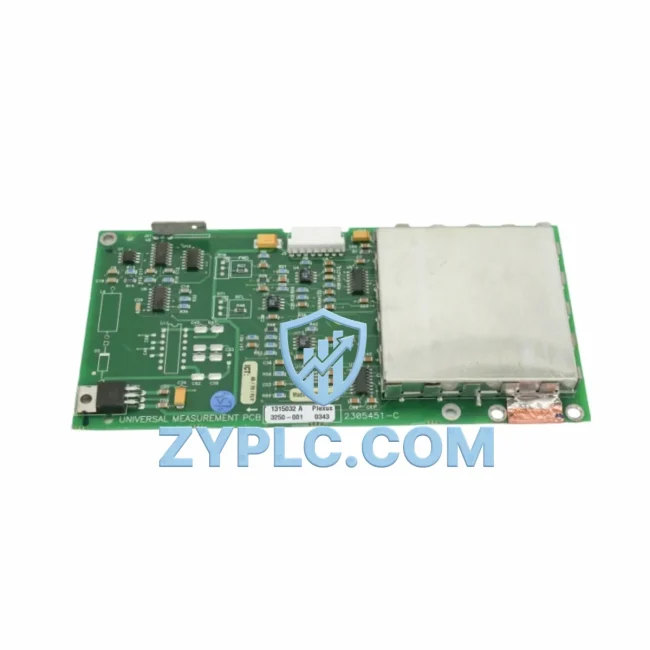

Advanced Energy 2305451-C Board for DT2000

Advanced Energy 2305451-C Measurement Board for DT2000 Automation

The Advanced Energy 2305451-C (also referenced as OLE36-10632-02, DT2000 0626 P2) is a precision measurement board engineered for deployment within the DT2000 power delivery and condition monitoring platform. In modern industrial automation environments — where energy cost, equipment uptime, and production throughput are tightly interlinked — this board serves as the critical data acquisition layer that enables real-time power measurement, load profiling, and closed-loop energy feedback across the entire control architecture.

Unlike generic instrumentation boards, the 2305451-C is purpose-built for high-accuracy RF and DC power measurement in demanding semiconductor fabrication, industrial plasma processing, and precision manufacturing environments. Its integration into the DT2000 system allows plant engineers to capture granular energy consumption data at the process level — not just at the facility level — enabling targeted efficiency improvements that reduce both operating costs and carbon footprint without sacrificing throughput.

Product Specification Table

System Compatibility and Application

The 2305451-C does not operate in isolation. Its true value emerges when viewed as part of a layered industrial automation system. Within a typical semiconductor or industrial process line, the DT2000 platform interfaces with upstream RF generators such as the Advanced Energy Paramount RF Generator and Advanced Energy Ascent AE Series power supplies, which deliver precisely regulated power to the process chamber. The 2305451-C measurement board captures real-time forward and reflected power data from these sources, feeding corrective signals back to the generator control loop.

At the drive and control layer, the DT2000 system communicates with process controllers — often Siemens S7-300 or S7-1500 PLCs — via standard industrial communication interfaces. The measurement data collected by the 2305451-C can be forwarded through PROFIBUS DP or EtherNet/IP gateways to supervisory SCADA systems, where energy KPIs are trended and alarmed. This integration allows maintenance teams to detect anomalous power draw patterns — a leading indicator of chamber component degradation — before unplanned downtime occurs.

On the I/O side, the board works in concert with Advanced Energy 3156192-100 interface boards and associated DT2000 analog output modules to translate measurement results into actionable 4–20 mA or digital signals for downstream actuators and variable frequency drives (VFDs). When paired with ABB ACS880 or Siemens SINAMICS G120 drives controlling pump and fan motors in the facility’s process cooling loop, the closed-loop energy data from the 2305451-C enables dynamic speed adjustment — eliminating the fixed-speed overconsumption that accounts for 20–30% of wasted energy in many process facilities.

For human-machine interface visibility, the DT2000 platform’s measurement outputs are typically displayed on Siemens TP1200 Comfort HMI panels or integrated into Ignition SCADA dashboards, giving operators a real-time view of energy efficiency ratios, power factor trends, and process stability indices. The 2305451-C is the foundational data source that makes this visibility possible.

Maintenance and Replacement Notes

In semiconductor etch and deposition lines, uncontrolled RF power delivery is one of the largest sources of process variability and unplanned downtime. When the 2305451-C measurement board is functioning correctly within the DT2000 chassis, it continuously monitors the match between delivered and reflected power. Any impedance mismatch — caused by chamber wall deposits, electrode wear, or gas composition drift — is detected within milliseconds, and the generator’s tuning algorithm responds automatically. This eliminates the unplanned downtimed in reflected power and reduces thermal stress on chamber components, extending their service life and reducing spare parts consumption.

In broader industrial applications — including high-power laser systems, induction heating lines, and plasma surface treatment equipment — the same principle applies. The 2305451-C enables the host system to operate at its designed efficiency point rather than compensating for measurement uncertainty with excess power margin. Plants that have restored accurate measurement capability by replacing degraded 2305451-C boards have reported measurable reductions in per-unit energy consumption and a corresponding improvement in process yield consistency.

From a maintenance cost perspective, the board’s role in predictive maintenance workflows is equally significant. By trending the measurement data over time, maintenance engineers can identify gradual degradation in RF delivery components — such as matching network capacitors or generator output stages — and schedule replacements during planned maintenance windows rather than reacting to emergency failures. This shift from reactive to predictive maintenance reduces mean time to repair (MTTR), improves overall equipment effectiveness (OEE), and lowers the total cost of ownership of the DT2000 platform.

Every unit of the Advanced Energy 2305451-C supplied by ZYPLC undergoes full functional testing prior to shipment, with a 12-Month Warranty covering defects in materials and workmanship. In-stock availability ensures minimal lead time, supporting both planned maintenance schedules and urgent production recovery scenarios.

Product Sourcing FAQ

Q1: How does the 2305451-C measurement board contribute to operational stability in a DT2000 system?
The 2305451-C provides the real-time power measurement data that the DT2000 platform uses to close its power control loop. Without accurate measurement, the generator cannot correct for impedance mismatches, resulting in reflected power losses and process instability. Restoring accurate measurement capability directly reduces wasted energy and improves process efficiency.

Q2: Is the 2305451-C compatible with all DT2000 chassis configurations?
The 2305451-C is designed for the Advanced Energy DT2000 platform and is cross-referenced as OLE36-10632-02 and DT2000 0626 P2. Compatibility should be verified against your specific DT2000 chassis revision and firmware version. ZYPLC’s technical team can assist with compatibility confirmation prior to purchase.

Q3: What testing is performed before shipment, and what does the 12-Month Warranty cover?
Each 2305451-C board is functionally tested to verify measurement accuracy, signal integrity, and board-level communication prior to shipment. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q4: Can this board be used as a direct drop-in replacement for a failed unit in a running production line?
Yes. The 2305451-C is a board-level replacement component. With the DT2000 chassis powered down and properly discharged, the board can be swapped without chassis-level reconfiguration in most standard DT2000 installations. Post-installation calibration verification is recommended to confirm measurement accuracy before returning the system to production.
