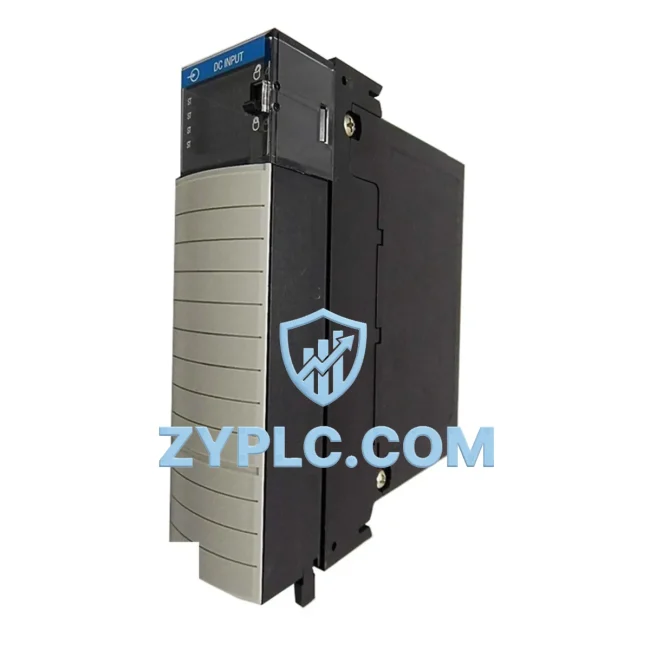

Allen-Bradley 1756-IV32 ControlLogix DC Sourcing Input Module | 32-Point

Allen-Bradley 1756-IV32: Industrial Data Link for ControlLogix Smart Factory Networks

The Allen-Bradley 1756-IV32 is a 32-point DC sourcing input module engineered for the ControlLogix platform — one of the most widely deployed programmable automation controller (PAC) architectures in global discrete manufacturing, process control, and smart factory environments. Designed to operate within the 1756 chassis backplane, the 1756-IV32 serves as a critical signal acquisition node, capturing real-world digital inputs from field devices and delivering structured data into the ControlLogix controller’s real-time scan cycle. In an era where industrial connectivity defines production efficiency, this module bridges the physical world of sensors, switches, and actuators with the digital intelligence of SCADA systems, HMI terminals, and enterprise MES platforms.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 1756-IV32 sits at the front end of the data acquisition chain. Field-level devices — including inductive proximity sensors, photoelectric sensors, limit switches, and safety interlock contacts — connect directly to the module’s 32 sourcing input channels. Each channel state is scanned in real time by the resident 1756-L85E ControlLogix controller, which processes the logic and propagates data across the backplane to communication bridge modules.

When the plant network runs on EtherNet/IP, the 1756-EN2T EtherNet/IP communication module installed in the same chassis transmits I/O data upstream to the SCADA server or historian at sub-millisecond cycle times. For legacy fieldbus segments still operating on DeviceNet or ControlNet, the 1756-DNB DeviceNet Bridge and 1756-CNB ControlNet Bridge modules extend the data path without requiring protocol re-engineering at the field level. This multi-protocol coexistence is a defining strength of the ControlLogix platform and makes the 1756-IV32 a versatile node in mixed-protocol industrial networks.

At the HMI layer, operators interact with live input states through PanelView Plus 7 terminals connected via EtherNet/IP, where the 32 digital channels of the 1756-IV32 are mapped to graphical indicators, alarm banners, and trend displays. For remote monitoring, the data path extends further through FactoryTalk View SE SCADA software, enabling plant managers to observe machine states, acknowledge alarms, and review historical input logs from any networked workstation or mobile device.

In applications involving variable-speed drives, the 1756-IV32 captures run/fault/ready status signals from PowerFlex 755 AC drives, feeding drive state data into the ControlLogix controller for coordinated motion sequencing and predictive maintenance logic. Similarly, in conveyor and packaging lines, the module reads encoder-triggered proximity inputs and integrates them with 1756-M02AE servo drive modules for precise positioning control. Remote I/O expansion is handled through 1734 POINT I/O adapters connected via EtherNet/IP, allowing the 1756-IV32’s logical I/O map to extend across distributed field panels without additional controller hardware.

For edge computing and IIoT integration, plant architects often pair the ControlLogix system with an Allen-Bradley Stratix 5700 managed industrial Ethernet switch, which provides VLAN segmentation, QoS prioritization, and ring topology redundancy — ensuring that the real-time I/O data from the 1756-IV32 reaches the SCADA layer with deterministic latency even under heavy network load. The complete data chain — from field sensor through 1756-IV32, across the EtherNet/IP backbone, through the Stratix switch fabric, and into the FactoryTalk historian — represents a fully traceable, auditable industrial data pipeline.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is data isolation — the condition where field-level signals exist in physical form but cannot be accessed, interpreted, or acted upon by higher-level systems. The Allen-Bradley 1756-IV32 directly addresses this problem by providing a standardized, backplane-integrated digital input interface that converts raw field signals into structured EtherNet/IP data objects consumable by any Rockwell Automation software platform.

In plants where legacy relay logic or standalone PLCs previously handled discrete input monitoring, migrating to the 1756-IV32 within a ControlLogix chassis eliminates the need for separate signal conditioning hardware and proprietary communication converters. The module’s optical isolation ensures signal integrity even in electrically noisy environments — common in welding cells, motor control centers, and high-frequency drive installations — preventing data corruption that would otherwise compromise SCADA accuracy and alarm reliability.

For production line transparency, the 1756-IV32 enables real-time visibility into machine states that were previously invisible to plant management systems. By mapping each of the 32 input channels to named tags in the ControlLogix tag database, engineers can expose machine-level data to FactoryTalk Metrics OEE dashboards, MES integration layers, and cloud analytics platforms without custom middleware. This tag-based architecture also simplifies system expansion: adding a new sensor to the line requires only a wiring connection and a tag configuration update — no hardware redesign, no protocol negotiation, no downtime for communication reconfiguration.

Remote diagnostics capability is another key value delivered by the 1756-IV32 in conjunction with the ControlLogix platform. Through FactoryTalk Remote Access or Studio 5000 Logix Designer’s online monitoring mode, maintenance engineers can observe live input channel states, review input transition histories, and diagnose wiring faults from a remote workstation — reducing mean time to repair (MTTR) and eliminating unnecessary site visits. For multi-site operations, this remote diagnostic capability scales across facilities connected by a secure industrial WAN, giving central engineering teams unified visibility into distributed input module health.

Industrial Connectivity FAQ

Q1: What communication protocols does the Allen-Bradley 1756-IV32 support for SCADA and HMI integration?
The 1756-IV32 communicates via the ControlLogix 1756 chassis backplane, which supports EtherNet/IP, ControlNet, and DeviceNet through the corresponding bridge modules (1756-EN2T, 1756-CNB, 1756-DNB). EtherNet/IP is the primary protocol for SCADA and HMI integration, providing real-time tag-based data exchange with FactoryTalk View SE, Ignition SCADA, and third-party OPC-UA servers.

Q2: How does the 1756-IV32 perform in electrically noisy industrial environments?
The module features optical isolation between the field wiring terminals and the backplane logic circuitry, providing robust noise immunity in environments with high-frequency drives, welding equipment, and large motor loads. The 10–31.2V DC input range also provides tolerance against voltage fluctuations common in industrial power distribution systems, ensuring reliable signal acquisition without false triggering.

Q3: Can the 1756-IV32 be integrated into an existing ControlLogix system without network downtime?
Yes. The 1756-IV32 supports hot-swap insertion and removal within a powered ControlLogix chassis (when the chassis and controller support this feature). Module configuration is performed through Studio 5000 Logix Designer and downloaded to the controller online, allowing I/O expansion with minimal disruption to running production processes. Network topology changes at the EtherNet/IP layer are managed through the Stratix switch configuration without requiring controller restart.

Q4: What warranty and supply assurance does ZYPLC provide for the 1756-IV32?
ZYPLC provides a 12-month warranty on all Allen-Bradley 1756-IV32 modules, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify channel integrity, backplane communication, and isolation performance. ZYPLC maintains ready inventory of the 1756-IV32 and related ControlLogix I/O modules to support urgent MRO requirements and planned system expansions, with global shipping available to minimize production downtime.
