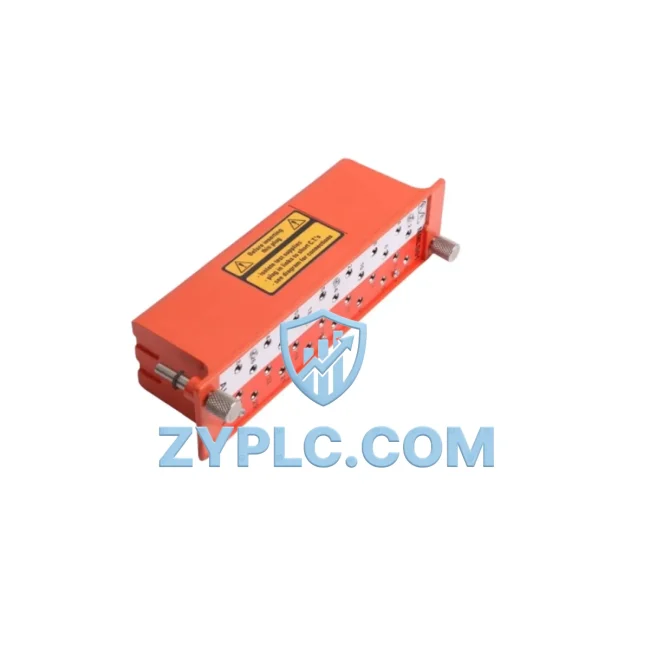

Alstom MMLG01 System-Ready Relay Test Block for MiCOM Architecture

Alstom MMLG01 System-Ready Relay Test Block for MiCOM Architecture: Control System Coordination and Upstream–Downstream Integration

The Alstom MMLG01 is a dedicated protection relay test block engineered for seamless integration within MiCOM series protection and control architectures. In modern substation automation and industrial power protection systems, the test block is not a peripheral accessory — it is a critical node in the protection signal chain. The MMLG01 enables engineers to isolate, test, and commission individual relay elements without interrupting the broader protection scheme, preserving system continuity across the control layer, I/O layer, communication layer, and power supply layer simultaneously.

Designed to interface directly with MiCOM series numerical protection relays — including the MiCOM P14x feeder protection relay family, MiCOM P54x transformer protection relays, and MiCOM P34x distance protection relays — the MMLG01 provides a standardized test point that supports both commissioning workflows and long-term maintenance cycles. Its terminal architecture aligns with the wiring conventions of Alstom K-Bus and IEC 61850 GOOSE-based protection schemes, making it a natural fit for both legacy retrofit projects and greenfield substation builds.

Architecture Specification Table

Coordinated Control System Design

The MMLG01 occupies a precise position within the protection signal flow of a MiCOM-based substation control system. Understanding its role requires viewing the architecture holistically — from the primary current transformer (CT) and voltage transformer (VT) inputs at the I/O layer, through the numerical relay processing core, to the trip output circuits that actuate circuit breakers and isolators at the execution layer.

In a typical MiCOM P14x feeder protection panel, the MMLG01 is wired in series with the CT secondary circuit, providing a safe and standardized test injection point. During commissioning, protection engineers use secondary injection test sets to simulate fault currents through the MMLG01 terminals, verifying the operating characteristics of the MiCOM P141 or MiCOM P142 relay without energizing the primary system. This workflow is essential for IEC 60255 compliance testing and factory acceptance testing (FAT) procedures.

At the communication layer, the MiCOM relays interfaced via the MMLG01 test block typically communicate upstream to a substation RTU or IEC 61850 station bus via the MiCOM S1 Agile engineering software platform. The MMLG01 does not interrupt this communication path — it operates purely at the hardwired signal level, ensuring that SCADA visibility and IEC 61850 GOOSE messaging remain active during local relay testing activities.

The power supply layer — typically served by a Alstom or compatible 110VDC or 220VDC station battery system feeding the relay auxiliary supply — remains unaffected during MMLG01-assisted testing. This is a key advantage in live substation environments where DC supply continuity is mandatory. Alongside the MMLG01, engineers commonly deploy the Alstom MMLB01 test block for voltage circuit isolation, and the MMLG11 variant for applications requiring additional current circuit test terminals, creating a modular and scalable test access infrastructure across the entire protection panel.

At the human-machine interface (HMI) layer, the MiCOM relay front panel LCD and the MiCOM S1 Agile PC-based configuration tool provide real-time feedback during test injection, allowing engineers to verify pickup levels, operating times, and output relay states without secondary instrumentation. The MMLG01 thus becomes the physical bridge between the test engineer’s injection equipment and the relay’s measurement inputs, enabling precise, repeatable, and non-intrusive commissioning across the full MiCOM relay portfolio.

Application in Layered Automation Systems

Power Utilities and Transmission Substations: In 110kV and 220kV transmission substations, the MMLG01 is a standard component in MiCOM P34x distance protection panels. It enables periodic relay maintenance testing under IEC 60255-151 and IEC 60255-187 standards without de-energizing the primary circuit, supporting the high-availability requirements of grid operators and transmission system operators (TSOs).

Industrial Power Distribution: In petrochemical plants, steel mills, and large manufacturing facilities with dedicated 6kV or 10kV medium-voltage distribution systems, the MMLG01 supports MiCOM P12x overcurrent protection relays installed on motor feeder and transformer feeder panels. Maintenance teams use the test block to perform annual relay calibration checks as part of IEC 61511 functional safety management programs.

Water Treatment and Pumping Stations: Municipal water infrastructure relies on uninterrupted pump operation. The MMLG01 enables relay testing on MiCOM P92x motor protection relays without shutting down critical pumping circuits, supporting both planned maintenance windows and emergency relay replacement scenarios.

Mining and Mineral Processing: Underground and surface mining operations with high-resistance earthed (HRE) or isolated neutral MV systems use MiCOM P14x earth fault protection relays extensively. The MMLG01 provides the test access point required for sensitive earth fault relay testing in environments where primary circuit isolation is operationally complex.

Packaging and Process Control Lines: In automated production environments where power quality and motor protection are critical, the MMLG01 supports rapid relay swap-out and re-commissioning, minimizing production downtime and supporting lean maintenance strategies.

Architecture Engineering FAQ

Q1: Is the MMLG01 compatible with both older ALSTOM MiCOM relays and newer GE Grid Solutions MiCOM variants?
Yes. The MMLG01 test block was designed during the Alstom protection era and maintains full mechanical and electrical compatibility with the MiCOM relay range as it transitioned through GE Grid Solutions and subsequent rebranding. The terminal pitch, wiring convention, and CT/VT circuit ratings are consistent across the MiCOM P1xx, P3xx, P5xx, and P9xx relay families, ensuring backward and forward compatibility within the same panel architecture.

Q2: Can the MMLG01 be used in IEC 61850 substation architectures without affecting GOOSE messaging or station bus communication?
Absolutely. The MMLG01 operates exclusively at the hardwired CT/VT secondary circuit level and has no interaction with the Ethernet-based IEC 61850 station bus or process bus. During MMLG01-assisted relay testing, IEC 61850 GOOSE messages, sampled values (SV), and MMS communications between the MiCOM relay and the substation automation system (SAS) continue uninterrupted. Engineers should, however, configure appropriate test mode settings within the MiCOM relay via MiCOM S1 Agile to suppress unwanted trip outputs during injection testing.

Q3: What does the 12-Month Warranty cover for the MMLG01, and what is the supply lead time?
All MMLG01 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Units are pre-tested prior to dispatch. For in-stock units, standard lead time is 3–7 business days for international shipment. For project-volume requirements or urgent substation commissioning schedules, expedited dispatch is available. Contact our technical sales team at [email protected] or +86 19859288691 to confirm current stock availability and arrange shipment documentation including test certificates and material traceability records.
