BACHMANN DO232 Industrial Network Interface for Electronic Series Systems

BACHMANN DO232 Industrial Network Interface: Smart Factory Data Link for Electronic Series Systems

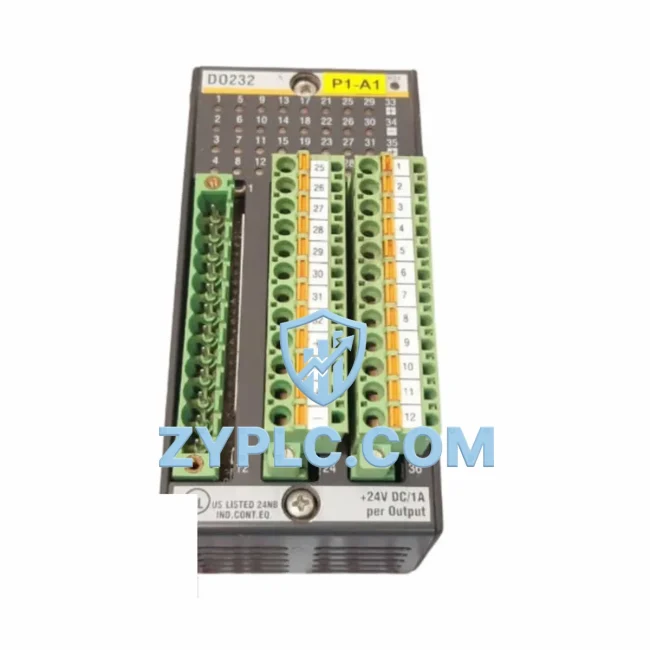

The BACHMANN DO232 is a 32-channel digital output module engineered for the BACHMANN Electronic Series automation platform. Designed to serve as a critical node in the industrial data chain, the DO232 bridges field-level actuator control with upper-layer SCADA, HMI, and MES systems — enabling real-time signal dispatch, deterministic output switching, and seamless protocol-level integration across the smart factory floor. Whether deployed in discrete manufacturing, process automation, or energy management, the DO232 delivers the output density, electrical isolation, and network transparency demanded by modern industrial connectivity architectures.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the BACHMANN DO232 sits at the intersection of control logic and physical actuation. The data flow begins upstream at the engineering workstation, where IEC 61131-3 programs running on a BACHMANN MC210 CPU module generate output commands based on real-time process variables. These commands traverse the BACHMANN backplane bus at deterministic cycle times, arriving at the DO232 module to switch 32 independent digital output channels — driving solenoid valves, motor contactors, indicator lamps, and relay coils across the production line.

For sites requiring network-level transparency, the DO232 integrates with a BACHMANN MPC240 communication processor, which exposes the module’s I/O data over PROFINET IO to a plant-wide Ethernet backbone. This allows a Siemens SIMATIC S7-1500 PLC acting as a PROFINET controller to supervise BACHMANN output nodes as distributed I/O, enabling cross-vendor system integration without protocol barriers. In parallel, a BACHMANN CM202 PROFIBUS DP master module can aggregate field device status from legacy PROFIBUS slaves — including Pepperl+Fuchs remote I/O stations and Phoenix Contact Inline bus terminals — feeding process feedback back to the DO232’s associated input modules for closed-loop control.

At the HMI layer, a Weintek cMT Series HMI panel connected via Modbus TCP to the BACHMANN controller visualizes output channel states in real time, allowing operators to monitor actuator status, acknowledge alarms, and issue manual override commands without leaving the control room. The HMI data is simultaneously forwarded to a Ignition SCADA platform via OPC-UA, where historians log every output state transition with millisecond timestamps — creating a complete audit trail for quality management and predictive maintenance analytics.

For remote diagnostics, a BACHMANN SHB200 system health bus module monitors backplane communication integrity and module operating temperatures, triggering alarm notifications to the SCADA system if the DO232 or adjacent modules report fault conditions. Edge computing nodes — such as a Moxa UC-8112 industrial computer — can subscribe to these OPC-UA alarm feeds and execute local decision logic even during WAN connectivity interruptions, ensuring output control continuity in distributed or offshore installations.

Power integrity for the DO232 output stage is maintained by a BACHMANN PS204 power supply module, which provides regulated 24 VDC to the backplane and field output circuits. The modular rack architecture allows the DO232 to be paired with BACHMANN DI232 digital input modules and BACHMANN AO208 analog output modules in the same rack, creating a compact, high-density I/O station that minimizes cabinet footprint while maximizing channel count — a critical advantage in space-constrained machine control panels.

Solving Data Isolation in Industrial Sites

Legacy industrial sites frequently suffer from protocol fragmentation: PROFIBUS devices cannot communicate natively with PROFINET controllers, Modbus RTU sensors cannot push data to OPC-UA historians, and proprietary PLC backplanes remain invisible to plant-level MES systems. The BACHMANN DO232, deployed within the Electronic Series platform, directly addresses these integration gaps.

By leveraging the BACHMANN controller’s multi-protocol communication stack, the DO232’s output data becomes accessible across PROFIBUS DP, PROFINET IO, Modbus TCP, and OPC-UA simultaneously — eliminating the data silos that prevent production transparency. Plant managers gain a unified view of every output channel state across all production cells, enabling real-time OEE calculation, shift-based output performance comparison, and automated alarm escalation when output fault rates exceed defined thresholds.

Remote monitoring is equally addressed: with the BACHMANN platform’s built-in web server and OPC-UA server, maintenance engineers can access DO232 channel diagnostics from any browser-equipped device — reviewing output switching histories, identifying stuck channels, and initiating remote resets without dispatching field technicians. This capability is particularly valuable for geographically distributed installations such as wind farms, water treatment plants, and offshore platforms, where on-site intervention carries significant cost and safety implications.

System expansion is straightforward: additional DO232 modules can be inserted into vacant backplane slots without controller reprogramming, and the BACHMANN engineering tool automatically detects new modules during the next configuration download. This hot-expansion capability supports phased production scale-up strategies, allowing manufacturers to add output capacity in 32-channel increments aligned with actual production growth — avoiding the capital waste of over-provisioning at initial deployment.

Every BACHMANN DO232 unit supplied by ZYPLC undergoes pre-shipment functional testing, including channel-by-channel output verification, isolation resistance measurement, and backplane communication handshake validation. Units are shipped with full documentation and are covered by a 12-month warranty, with in-stock inventory available for immediate dispatch to support urgent maintenance and production continuity requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the BACHMANN DO232 support for SCADA integration?
The DO232 operates natively on the BACHMANN Electronic Series backplane bus and exposes its I/O data through the host controller’s communication interfaces, which support PROFIBUS DP, PROFINET IO, Modbus TCP, and OPC-UA. This multi-protocol capability allows the DO232 to integrate with virtually any SCADA platform — including Ignition, WinCC, and InTouch — without requiring additional protocol converters in most standard architectures.

Q2: How does the DO232 ensure network stability and deterministic output switching?
The BACHMANN backplane bus uses a time-deterministic communication cycle, ensuring that output commands from the CPU module reach the DO232 within a fixed, predictable latency window — typically sub-millisecond at standard cycle times. Optocoupler isolation on each output channel group prevents electrical noise from field devices from propagating into the backplane, maintaining communication stability even in high-EMI environments such as variable frequency drive cabinets and welding cells.

Q3: Can the BACHMANN DO232 be expanded or replaced without shutting down the entire system?
The BACHMANN Electronic Series rack architecture supports module-level replacement with minimal system disruption. While a full hot-swap without any output interruption depends on the specific controller firmware version and rack configuration, the platform is designed to minimize downtime during module exchange. New DO232 modules are automatically recognized by the BACHMANN engineering tool during the next configuration synchronization, and additional modules can be added to vacant slots to expand output capacity in 32-channel increments without modifying existing control logic.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every BACHMANN DO232 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes individual channel output verification across all 32 channels, backplane communication handshake validation with a BACHMANN controller, isolation resistance measurement between output groups, and visual inspection for physical integrity. Test records are available upon request and accompany each unit’s shipment documentation.

—
