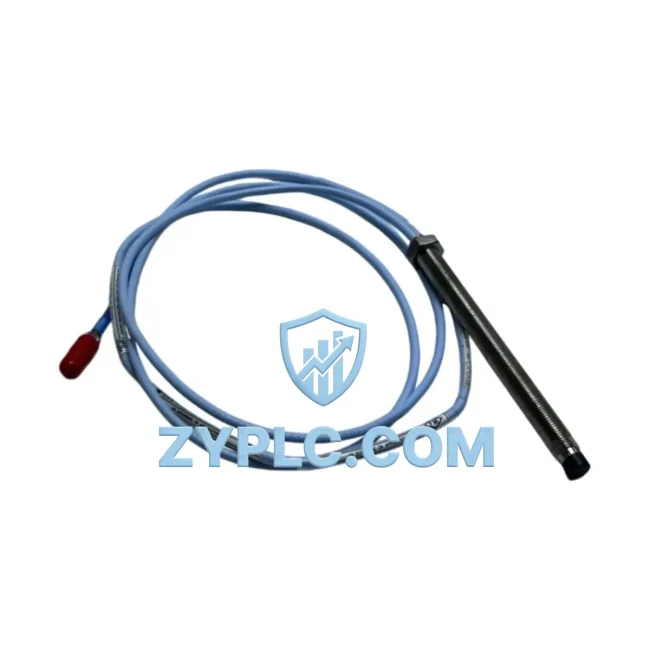

The Bently Nevada 102044-00-48-10-05 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3500 Series machinery protection system architecture. Rather than functioning as a standalone sensor, this probe is designed as a critical node within a layered, multi-tier control system — connecting the physical machine layer to the signal conditioning layer, the monitoring layer, and ultimately the plant-wide DCS or SCADA environment. Understanding its role within the full system hierarchy is essential for engineers responsible for rotating machinery protection, predictive maintenance, and process reliability in demanding industrial environments.

Architecture Specification Table

Coordinated Control System Design

The 102044-00-48-10-05 proximity probe does not operate in isolation. Its value is realized only when it is correctly integrated within the full Bently Nevada 3500 system architecture, where each component plays a defined role across the control, I/O, network, power, HMI, and actuation layers.

At the sensing layer, the 102044-00-48-10-05 probe pairs directly with a Bently Nevada 330180 extension cable and a Bently Nevada 330500 proximitor sensor (or equivalent 3300 XL series proximitor) to form a complete eddy-current measurement chain. The proximitor converts the raw probe impedance signal into a calibrated DC voltage proportional to the gap between the probe tip and the rotating shaft. This analog signal is then routed to the I/O layer, where a Bently Nevada 3500/42M Proximitor I/O Module or 3500/44M Velocity/Acceleration Monitor receives and conditions the signal for threshold comparison and alarm generation.

Within the 3500 rack architecture, the Bently Nevada 3500/20 Rack Interface Module (RIM) serves as the communication backbone, enabling the rack to interface with plant-level DCS systems via Modbus, Profibus, or Ethernet/IP protocols. The 3500/15 Power Supply Module — available in single or redundant configurations — provides stable DC power to all monitor modules within the rack, ensuring uninterrupted operation even during grid fluctuations. For mission-critical applications such as gas turbines or large centrifugal compressors, a redundant 3500/15R Redundant Power Supply is recommended to eliminate single points of failure at the power layer.

At the monitoring and decision layer, the Bently Nevada 3500/22M Transient Data Interface (TDI) captures high-resolution waveform data during machine startup, shutdown, and trip events — data that is essential for root-cause analysis and long-term asset health trending. This data is transmitted to the System 1 Evolution software platform, Bently Nevada’s plant asset management and condition monitoring solution, where vibration trends, orbit plots, and alarm histories are visualized for maintenance engineers and reliability teams.

For human-machine interface integration, the 3500 system supports connection to Rockwell Automation ControlLogix PLCs or Emerson DeltaV DCS platforms via the RIM’s communication ports, enabling operators to view real-time vibration data alongside process variables such as temperature, pressure, and flow on unified HMI screens. Terminal blocks and marshalling panels — such as those from Phoenix Contact or Weidmüller — are commonly used in the field junction box layer to organize and protect the coaxial signal cables running from the probe assembly to the rack.

This tightly coordinated architecture ensures that the 102044-00-48-10-05 probe contributes not just to vibration measurement, but to the overall system’s redundancy, signal integrity, diagnostic depth, and long-term maintainability — all of which are critical in continuous-process industries where unplanned downtime carries significant operational and financial consequences.

Application in Layered Automation Systems

The Bently Nevada 102044-00-48-10-05 proximity probe is deployed across a wide range of heavy industrial and process-critical environments where rotating machinery protection is non-negotiable.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — this probe monitors shaft radial vibration and axial position on steam turbines, gas turbines, and generator rotors. Early detection of rotor imbalance, misalignment, or bearing degradation allows maintenance teams to schedule corrective action during planned outages rather than responding to catastrophic failures.

In petrochemical and refining operations, the probe is installed on centrifugal compressors, reactor agitators, and boiler feed pumps — equipment that operates continuously under high pressure and temperature. The probe’s hazardous-area rating and wide operating temperature range make it suitable for Zone 1 and Zone 2 classified areas where flammable gases or vapors may be present.

In water and wastewater treatment plants, large vertical turbine pumps and blower units benefit from continuous vibration monitoring to prevent bearing failures that would disrupt treatment capacity. The 3500 system’s ability to generate early-warning alarms — well before a danger threshold is reached — gives plant operators the lead time needed to arrange maintenance without service interruption.

In mining and mineral processing, ball mills, SAG mills, and large slurry pumps are monitored using proximity probe arrays to detect shaft deflection, bearing wear, and structural resonance. The rugged construction of the 102044-00-48-10-05 probe, combined with its armored cable assembly, ensures reliable performance in dusty, high-vibration environments.

In metallurgical and steel production facilities, continuous casters, rolling mills, and induction furnace drives rely on proximity probes to maintain tight tolerances on shaft position and to detect early signs of mechanical degradation before product quality is affected.

Across all these applications, the 102044-00-48-10-05 probe’s compatibility with the Bently Nevada 3500 architecture ensures that field data flows seamlessly from the machine to the control room — supporting informed decision-making, regulatory compliance, and long-term asset lifecycle management.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 102044-00-48-10-05 compatible with both the 3500 and 3300 series monitor racks?
The 102044-00-48-10-05 probe is primarily designed and calibrated for use with the Bently Nevada 3500 Series machinery protection system. It is compatible with 3500/42M, 3500/44M, and 3500/46M monitor modules when paired with the appropriate 330500 or 3300 XL proximitor and 330180 extension cable. While the probe tip and cable assembly share physical compatibility with some 3300 series components, system-level calibration and alarm configuration should always be validated against the specific monitor module and proximitor combination in use. Consult the Bently Nevada TN-13-1 technical note for gap voltage and scale factor verification procedures.

Q2: How does this probe support redundant architecture design in critical machinery protection applications?
In high-availability installations — such as gas turbines or large centrifugal compressors — dual-probe redundancy is achieved by installing two 102044-00-48-10-05 probes at 90° to each other (X-Y configuration) on the same bearing journal. Each probe feeds an independent channel within the 3500/42M monitor module, enabling 2-out-of-2 (2oo2) or 2-out-of-3 (2oo3) voting logic for trip decisions. This architecture eliminates false trips caused by single-probe failures while maintaining protection against genuine shaft excursions. The 3500 rack’s redundant power supply and RIM modules further reinforce system availability at the electronics layer.

Q3: What does the 12-Month Warranty cover, and what support is available for installation and commissioning?
All 102044-00-48-10-05 units supplied by ZYPLC are backed by a 12-Month Warranty covering defects in materials and workmanship under normal operating conditions. The warranty period begins from the date of shipment. Units that exhibit calibration drift, connector failure, or cable insulation breakdown within the warranty period are eligible for replacement or repair at no additional cost. ZYPLC’s technical team provides pre-sales application support, installation guidance, and post-sales commissioning assistance to ensure correct gap setting, cable routing, and system integration. For inquiries, contact +86 19859288691 or plc.sales@zyplc.com.
