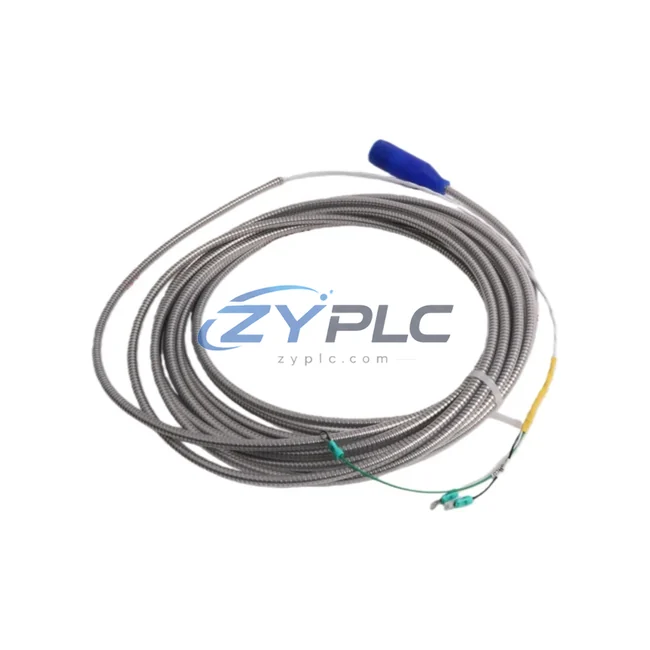

Bently Nevada 106765-30 Sensor Interconnect Cable for Velomitor XA Systems

Bently Nevada 106765-30: Industrial Data Link for Velomitor XA Vibration Monitoring Systems

The Bently Nevada 106765-30 is a precision-engineered sensor interconnect cable purpose-built for the Velomitor XA series of industrial velocity transducers. In modern smart factory environments, reliable signal transmission between rotating machinery, field-mounted sensors, and centralized monitoring platforms is not optional — it is the backbone of predictive maintenance and operational continuity. The 106765-30 fulfills this role by delivering low-noise, shielded signal pathways that connect vibration transducers directly into the plant’s condition monitoring data chain.

From the moment a Velomitor XA sensor detects abnormal velocity signatures on a turbine shaft, compressor rotor, or pump bearing, the 106765-30 cable carries that analog signal with full integrity to the Bently Nevada 3500 Series Machinery Protection System — a rack-mounted monitoring platform that processes real-time vibration data, applies configurable alarm thresholds, and triggers protective shutdowns when critical limits are exceeded. Without a properly rated interconnect cable, even the most sophisticated monitoring hardware cannot perform to specification.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical rotating machinery protection architecture, the data flow begins at the physical asset. A Velomitor XA velocity transducer is mounted on the bearing housing of a high-speed compressor or steam turbine. The 106765-30 cable routes the analog velocity signal from the transducer through cable trays and conduit to the Bently Nevada 3500/42M Proximitor / Seismic Monitor module installed in the 3500 rack. This monitor card digitizes the incoming signal, applies gap voltage checks, and feeds processed data to the 3500 System Monitor backplane.

From the 3500 rack, data is transmitted via Modbus TCP or OPC-UA gateway to the plant’s DCS (Distributed Control System) — commonly a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA platform — where operators view real-time vibration trends on HMI workstations. Simultaneously, the Bently Nevada System 1 Evolution software platform aggregates multi-channel vibration data from all 3500 racks across the facility, enabling fleet-wide condition monitoring, spectrum analysis, and predictive maintenance scheduling.

For remote sites or offshore platforms, a TDXnet remote data concentrator collects signals from multiple 3500 racks and transmits compressed vibration datasets over fiber-optic or industrial Ethernet to the central SCADA server. Alarm events generated by the 3500 rack — such as high vibration, sensor fault, or cable open-circuit — are forwarded through the SCADA alarm management system to on-call engineers via SMS or email notification, enabling rapid remote diagnosis without dispatching field technicians.

In facilities running Rockwell Automation ControlLogix PLCs or Siemens S7-400 controllers for process control, the 3500 rack’s relay outputs can be hardwired to PLC digital input cards, allowing the PLC to initiate controlled shutdowns or load-shedding sequences when vibration alarms are triggered. This cross-platform integration — from the 106765-30 cable at the sensor level all the way to the PLC and SCADA layer — exemplifies the complete industrial data chain that smart factory connectivity demands.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — the inability to correlate vibration data from rotating machinery with process variables such as flow rate, temperature, pressure, and load. When sensor cables like the 106765-30 are improperly specified, damaged, or substituted with non-OEM alternatives, signal degradation introduces noise floors that mask early-stage fault signatures. This leads to missed alarms, false trips, and ultimately unplanned downtime.

The Bently Nevada 106765-30 eliminates this risk by providing a factory-tested, OEM-specified cable assembly that maintains signal integrity across the full operating temperature range and in high-EMI environments typical of motor control centers, variable frequency drives, and high-voltage switchgear rooms. By standardizing on OEM interconnect cables, maintenance teams ensure that the 3500 Series monitor’s self-diagnostic routines — including cable continuity checks and transducer bias voltage monitoring — function correctly, providing early warning of cable degradation before signal loss occurs.

For facilities undergoing digital transformation or IIoT integration projects, the 106765-30 supports seamless migration from legacy analog monitoring to modern networked architectures. As plants add edge computing gateways and connect 3500 racks to cloud-based analytics platforms, the quality of the physical sensor-to-monitor connection remains the foundational requirement. Upgrading to verified OEM cables as part of a broader connectivity initiative ensures that higher-layer analytics — machine learning-based fault prediction, digital twin synchronization, and remote expert diagnostics — receive clean, reliable input data.

Protocol unification across multi-vendor environments is another area where proper cable specification matters. In plants where Bently Nevada 3500 systems coexist with Emerson AMS Device Manager, OSIsoft PI historians, or third-party CMMS platforms, the integrity of the analog signal chain directly affects the quality of data ingested by these systems. A compromised cable introduces measurement uncertainty that propagates through every downstream analytics layer.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 106765-30 compatible with all Velomitor XA transducer variants?
Yes. The 106765-30 is the OEM-specified interconnect cable for the Velomitor XA series and is compatible with all standard Velomitor XA velocity transducers used in the Bently Nevada 3500 machinery protection architecture. It maintains the correct connector pinout, shielding continuity, and impedance characteristics required for accurate signal transmission.

Q2: What is the maximum cable run length before signal degradation affects monitoring accuracy?
For analog velocity signals in the Velomitor XA / 3500 system architecture, cable runs up to 300 meters are generally supported with proper shielding and grounding practices. The 106765-30 at 30 ft is designed for local sensor-to-junction-box or sensor-to-monitor connections. For longer runs, Bently Nevada recommends using approved extension cables and following the 3500 system wiring guidelines to maintain signal integrity.

Q3: Can this cable be used in hazardous area (Ex) installations?
The 106765-30 is designed for use within the Bently Nevada 3500 system architecture. For hazardous area installations requiring ATEX or IECEx certification, the complete installation — including transducer, cable, and monitor — must comply with the applicable hazardous area certification. Consult the Bently Nevada 3500 system documentation and your local safety authority for zone-specific requirements.

Q4: What warranty and quality assurance does ZYPLC provide for the 106765-30?
All Bently Nevada 106765-30 cables supplied by ZYPLC are Warranty terms are confirmed during quotation. Each unit undergoes pre-shipment functional verification. ZYPLC maintains Availability confirmed by RFQ inventory for RFQ-coordinated fulfillment via DHL or FedEx international express, with full export documentation and compliance support for global industrial customers.
