Bently Nevada 128987-130-00-CN System-Ready Proximity Probe for 3500 Architecture

Bently Nevada 128987-130-00-CN System-Ready Proximity Probe for 3500 Control Architecture

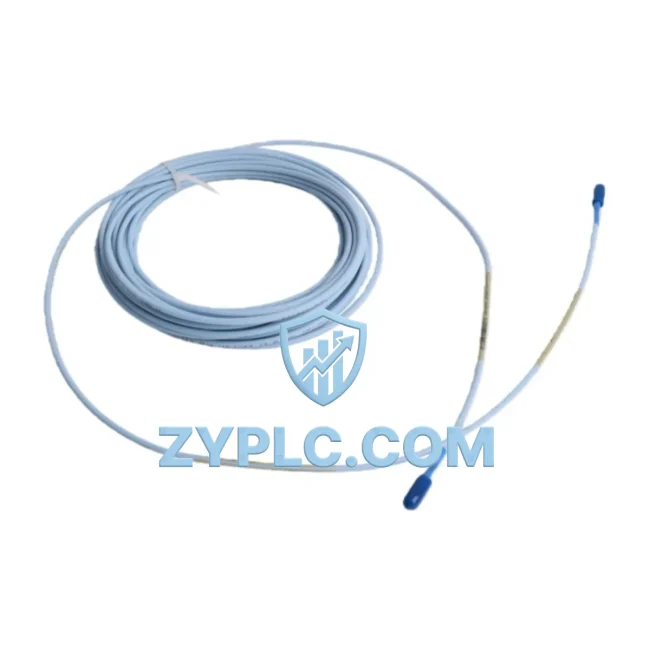

The Bently Nevada 128987-130-00-CN is an eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. Designed to deliver continuous, high-resolution radial vibration and position measurements, this probe serves as a critical sensing element at the field instrumentation layer of rotating machinery protection systems deployed across power generation, petrochemical, oil and gas, water treatment, mining, and heavy industrial environments.

In a fully layered automation architecture, the 128987-130-00-CN operates at the sensor layer, feeding real-time shaft displacement data upward through the signal conditioning chain into the 3500/25 Keyphasor Module or the 3500/42M Proximitor I/O Module. These I/O modules interface directly with the 3500/20 Rack Interface Module, which manages communication between the field-level sensing layer and the supervisory control network. The probe’s output is conditioned by the 3500/05 Power Supply Module, ensuring stable excitation voltage and signal integrity even in electrically noisy industrial environments. This layered signal flow — from probe to I/O module to rack controller to DCS or SCADA — exemplifies the system-consistent design philosophy of the 3500 platform.

From a control architecture perspective, the 128987-130-00-CN is not a standalone component but a foundational element of a coordinated machinery protection strategy. When paired with the 3500/15 Power Supply, the 3500/22M Transient Data Interface, and the 3500/92 Communication Gateway, the probe’s measurements become part of a unified data stream that supports both real-time trip logic and long-term trend analysis. This contextual integration capability ensures that vibration exceedances trigger coordinated responses across the relay output modules and connected DCS platforms without latency or signal ambiguity.

The probe’s 8 mm tip diameter and standard -18.4 mm/V sensitivity make it directly compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor system, enabling cross-platform deployment in facilities that operate mixed 3300 and 3500 monitoring architectures. Engineers responsible for system standardization will find that the 128987-130-00-CN supports consistent calibration procedures, reducing commissioning time and minimizing the risk of configuration errors during system expansion or module replacement.

For maintenance teams, the probe’s robust construction — featuring a stainless steel housing, armored extension cable, and field-replaceable connector — significantly reduces mean time to repair (MTTR) in high-availability plant environments. The probe is supplied with a 12-Month Warranty, covering manufacturing defects and performance deviations from published specifications, providing procurement and reliability engineering teams with the confidence required for long-term asset management planning.

Inventory availability is maintained to support both planned maintenance outages and emergency replacement scenarios. Each unit undergoes functional verification prior to shipment, ensuring that probe sensitivity, linearity, and gap voltage characteristics conform to Bently Nevada factory specifications. This pre-shipment validation process is particularly important for critical machinery applications where probe performance directly influences machinery protection trip setpoints.

Architecture Specification Table

Coordinated Control System Design

The 128987-130-00-CN achieves its full operational value when deployed as part of a coordinated Bently Nevada 3500 system architecture. A typical machinery protection rack for a critical rotating machine — such as a steam turbine, centrifugal compressor, or boiler feed pump — will integrate the following components alongside this probe:

The 3500/42M Proximitor/Seismic I/O Module receives the probe’s analog output and performs signal conditioning, gap voltage monitoring, and channel-level alarming. The 3500/20 Rack Interface Module manages rack-level communication and coordinates data flow between I/O modules and the system’s communication gateway. The 3500/15 Power Supply Module provides regulated -24 VDC excitation to the probe circuit, with redundant power supply configurations available for high-availability applications. The 3500/22M Transient Data Interface captures high-speed waveform data during startup, shutdown, and trip events, enabling post-event analysis and root cause investigation.

At the network layer, the 3500/92 Communication Gateway translates rack-level data into Modbus TCP, OPC-DA, or other industrial protocols for integration with plant DCS platforms such as Emerson DeltaV or Honeywell Experion. The 3500/25 Keyphasor Module provides phase reference signals that are essential for synchronous vibration analysis, enabling the system to distinguish between 1X, 2X, and sub-synchronous vibration components. For facilities requiring redundant monitoring, the 3500/32 4-Channel Relay Module provides configurable trip and alarm relay outputs that respond to probe-derived measurements, ensuring that machinery protection actions are executed reliably and without single-point-of-failure risk.

This coordinated architecture — spanning the probe, I/O modules, power supply, communication gateway, and relay output layer — represents the complete contextual integration framework within which the 128987-130-00-CN delivers its design intent.

Application in Layered Automation Systems

In power generation facilities, the 128987-130-00-CN is deployed on steam turbine shaft monitoring systems where continuous radial vibration measurement is mandatory for both regulatory compliance and machinery protection. The probe’s high sensitivity and stable gap voltage output make it suitable for high-speed turbine shafts where vibration amplitudes must be resolved to sub-micron levels.

In petrochemical and oil and gas plants, the probe is installed on centrifugal compressors, gas turbines, and expanders operating in hazardous area classifications. Its compatibility with ATEX/IECEx-rated system configurations ensures that the complete monitoring loop — from probe to relay output — meets the safety integrity requirements of these environments.

In water treatment and municipal infrastructure applications, the probe supports condition monitoring of large vertical pump motors and blower units, where early detection of bearing wear or rotor imbalance prevents unplanned outages that would disrupt water supply continuity.

In mining and metallurgical operations, the probe is used on crusher drives, mill pinion shafts, and conveyor drive systems, where the combination of high vibration amplitudes and abrasive environments demands a robust, field-proven sensing solution with a reliable supply chain and documented 12-Month Warranty coverage.

In packaging and process manufacturing lines, the probe supports predictive maintenance programs by providing continuous shaft position data that enables maintenance teams to schedule bearing replacements and alignment corrections during planned production windows rather than responding to unplanned failures.

Architecture Engineering FAQ

Q1: Is the 128987-130-00-CN directly compatible with the Bently Nevada 3500/42M Proximitor I/O Module without additional signal conditioning hardware?
Yes. The 128987-130-00-CN is designed to interface directly with the 3500/42M Proximitor/Seismic I/O Module. The module provides the required -24 VDC excitation voltage and accepts the probe’s analog DC output signal within its specified input range. No additional signal conditioning hardware is required, provided that the probe-to-target gap is set within the specified 0.25 mm to 2.25 mm operating range during installation and commissioning.

Q2: Can this probe be used in a redundant monitoring architecture, and how does it integrate with the 3500 system’s redundancy features?
The 128987-130-00-CN supports redundant monitoring configurations when paired with dual-channel I/O modules and redundant power supply arrangements within the 3500 rack. In a redundant architecture, two probes are installed at the same measurement plane — typically at 90-degree offsets — and connected to separate I/O module channels. The 3500 system’s voting logic then evaluates both channels independently, ensuring that a single probe failure does not result in a spurious trip or a missed alarm condition. This configuration is standard practice for API 670-compliant machinery protection systems on critical rotating equipment.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on this probe?
The 12-Month Warranty covers manufacturing defects, materials failures, and deviations from published performance specifications — including sensitivity, linearity, and gap voltage characteristics — under normal operating conditions. The warranty period begins from the date of shipment. To initiate a warranty claim, contact our technical support team with the unit’s serial number, purchase documentation, and a description of the observed performance deviation. Replacement units are dispatched from stock to minimize system downtime, and returned units undergo failure analysis to support continuous quality improvement.
