Bently Nevada 129478-01 System-Ready Relay Module for 3500 Architecture

Bently Nevada 129478-01 System-Ready Relay Module for 3500 Control System Architecture

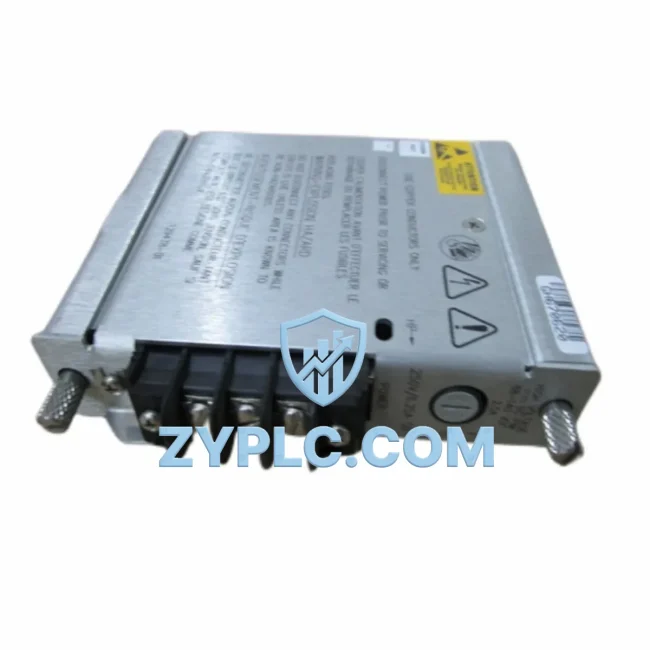

The Bently Nevada 129478-01 is a four-channel relay module engineered for seamless integration within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, mining, metallurgy, and heavy manufacturing — the reliability of a control system depends not on any single component, but on the coherent coordination of every layer within the architecture. The 129478-01 occupies a critical position in this hierarchy, serving as the output relay interface between the 3500 system’s monitoring logic and the plant-level protective response mechanisms.

Within a fully configured 3500 rack, the 129478-01 relay module works in direct coordination with the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, and the 3500/32 4-Channel Relay Module family to deliver deterministic, high-speed trip and alarm outputs. The module receives conditioned status signals from upstream monitor cards and translates them into dry-contact relay closures that interface with emergency shutdown systems (ESD), distributed control systems (DCS), and programmable logic controllers (PLC) at the plant level. This cross-layer signal flow — from vibration transducer through monitor card to relay output — is the backbone of machinery protection architecture.

System architects integrating the 129478-01 into a 3500 rack must consider its role alongside the 3500/05 Power Supply Module, which provides the regulated DC bus that powers all rack-mounted cards. Redundant power configurations using dual 3500/05 units ensure that relay output integrity is maintained even during power supply maintenance or failure events. The 3500/20 Rack Interface Module (RIM) manages communication between the rack and host systems via Modbus, Ethernet, or proprietary Bently Nevada protocols, enabling the relay status of the 129478-01 to be monitored and logged in real time by SCADA or asset management platforms such as System 1.

From an I/O architecture perspective, the 129478-01 provides four independent relay channels, each configurable for normally energized (fail-safe) or normally de-energized operation. This flexibility allows system engineers to align relay behavior with plant safety philosophy — a critical consideration in SIL-rated protection loops. The relay contacts are rated for both AC and DC loads, making the module compatible with a wide range of field devices including solenoid valves, motor starters, and annunciator panels. Wiring is terminated via the 3500 Series I/O module terminal blocks, maintaining the rack’s modular, hot-swap-capable architecture.

In layered automation systems, the 129478-01 bridges the gap between the condition monitoring layer and the safety/control execution layer. When a monitored machine — such as a centrifugal compressor, steam turbine, or boiler feed pump — exceeds a configured vibration, position, or temperature threshold, the 3500 monitor card asserts a trip or alarm state. The 129478-01 immediately closes or opens the corresponding relay channel, triggering the downstream protective action within milliseconds. This deterministic response time is essential in high-speed rotating machinery applications where delayed protective action can result in catastrophic equipment damage.

For system integrators managing multi-rack 3500 installations, the 129478-01 supports consistent relay output architecture across all racks, simplifying commissioning, loop testing, and long-term maintenance. Spare module management is streamlined because the 129478-01 is interchangeable across compatible 3500 rack configurations, reducing the number of unique spare part numbers required in the plant warehouse. This standardization directly supports maintenance efficiency and minimizes mean time to repair (MTTR) during unplanned outages.

All units supplied by ZYPLC are tested, inspected, and covered by a 12-Month Warranty, ensuring confidence in both new and refurbished stock. Our inventory management process includes functional verification of relay contact continuity, coil resistance, and logic response prior to shipment, so that every 129478-01 arrives ready for rack installation without additional bench testing.

Architecture Specification Table

Coordinated Control System Design

A complete Bently Nevada 3500 machinery protection system integrating the 129478-01 relay module typically includes the following coordinated components across all architecture layers:

At the power layer, the 3500/05 Power Supply Module provides the regulated DC bus for all rack cards. Redundant dual-supply configurations are standard in critical applications. At the rack management layer, the 3500/20 Rack Interface Module (RIM) handles all host communications, enabling relay status data from the 129478-01 to be transmitted to DCS, SCADA, or the Bently Nevada System 1 asset management platform. At the monitoring layer, cards such as the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor/Seismic Monitor process raw vibration and position signals from proximity probes and seismic sensors, generating the trip and alarm states that drive the 129478-01 relay outputs. The 3500/22M Transient Data Interface captures high-resolution transient waveform data during startup, shutdown, and trip events, providing the engineering team with post-event diagnostic data. At the I/O termination layer, the 3500 Series I/O Modules and associated terminal blocks provide the physical wiring interface between field instruments and rack-mounted monitor cards. At the human-machine interface layer, operator workstations running Bently Nevada System 1 Evolution software provide real-time visualization of relay states, alarm histories, and trend data. At the field execution layer, the dry-contact outputs of the 129478-01 interface directly with solenoid valves, motor protection relays, and annunciator panels, completing the protective action loop from sensor to actuator.

Application in Layered Automation Systems

The 129478-01 relay module finds application across a broad range of process industries where rotating machinery protection is critical to operational continuity and personnel safety.

In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle power stations — the 129478-01 provides the relay output interface for turbine trip systems, ensuring that overspeed, high vibration, or bearing temperature exceedances result in immediate, deterministic protective action. In petrochemical and refining environments, the module supports the protection of centrifugal compressors, pumps, and agitators within SIL-rated safety instrumented systems (SIS), where relay fail-safe behavior is a design requirement. In water and wastewater treatment plants, the 129478-01 protects large pump motors and blower units, with relay outputs connected to motor control centers (MCC) for automatic shutdown on vibration alarm. In mining and minerals processing, the module is deployed on conveyor drive motors, crushers, and mill drives, where continuous vibration monitoring and fast relay response prevent costly mechanical failures. In metallurgical and steel production facilities, the 129478-01 supports the protection of rolling mill drives and furnace blower systems. In packaging and discrete manufacturing lines, the module integrates with PLC-based control systems via dry-contact relay interfaces, providing a standardized alarm and trip output regardless of the PLC platform in use.

Architecture Engineering FAQ

Q1: Is the Bently Nevada 129478-01 compatible with all 3500 Series rack configurations, and can it be hot-swapped during operation?
The 129478-01 is designed for use within the Bently Nevada 3500 Series rack platform and is compatible with standard 3500 rack backplanes. The 3500 architecture supports module-level hot-swap capability, allowing the 129478-01 to be replaced without powering down the entire rack, provided that the system is configured for online maintenance. Always verify rack firmware and RIM software compatibility before performing hot-swap operations in live protection systems.

Q2: How does the 129478-01 integrate with a plant DCS or SCADA system, and what communication protocols are supported?
The 129478-01 does not communicate directly with host systems; instead, relay status and alarm data are aggregated by the 3500/20 Rack Interface Module (RIM), which supports Modbus RTU, Modbus TCP/IP, and Ethernet-based communication to DCS, SCADA, and asset management platforms. This architecture ensures that all relay output states are visible at the supervisory level without requiring direct wiring from the 129478-01 to the host system, simplifying system integration and reducing field wiring complexity.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the 129478-01?
All 129478-01 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. The warranty covers functional defects in relay contact operation, coil response, and module logic under normal operating conditions. Each unit undergoes pre-shipment functional testing including relay contact continuity verification and logic response checks. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with your order reference and a description of the observed fault. Replacement or repair will be arranged promptly to minimize system downtime.
