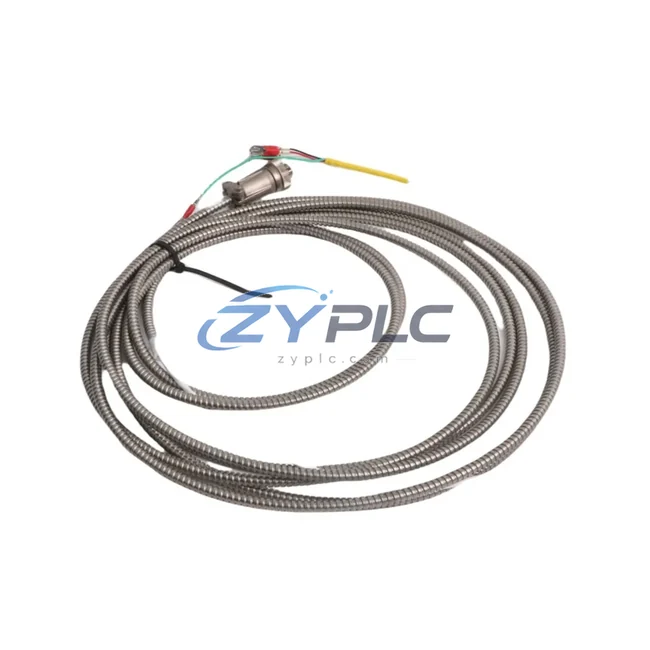

Bently Nevada 16710-23 Vibration Connection Cable for 3300 Series Systems

Bently Nevada 16710-23 Industrial Network Interface for 3300 Series Systems: Precision Data Links for Smart Factory Connectivity

The Bently Nevada 16710-23 is a high-integrity vibration connection cable engineered for the Bently Nevada 3300 Series continuous vibration monitoring platform. In modern industrial environments where machine health data must flow seamlessly from rotating equipment to control rooms, SCADA systems, and predictive maintenance platforms, the 16710-23 serves as a critical physical-layer link in the industrial data chain. Its precision-shielded construction ensures low-noise signal transmission from proximity probes and accelerometers directly into 3300 Series monitor modules, preserving the fidelity of raw vibration data before it enters the digital processing layer.

As smart factories demand tighter integration between field instrumentation and upper-level systems, the role of every cable, connector, and interface component becomes strategically significant. The 16710-23 is not merely a passive conductor — it is the first segment of a data pipeline that ultimately feeds real-time vibration amplitude, phase, and gap voltage readings into Bently Nevada System 1 condition monitoring software, enabling operators to detect imbalance, misalignment, bearing wear, and rotor instability before they escalate into unplanned downtime.

Within a typical turbomachinery protection architecture, the 16710-23 connects field-mounted Bently Nevada 3300 XL 8mm proximity probes or 330180 series transducers to the front-end input terminals of 3300/16 Dual Voting Logic or 3300/20 Radial Vibration monitor cards housed in a 3300 rack. The cable’s impedance-matched design and EMI shielding are essential in environments where variable frequency drives (VFDs), servo amplifiers, and high-current motor starters generate significant electromagnetic interference across the plant floor.

In integrated automation architectures, the vibration data captured through the 16710-23 cable path is processed by the 3300 Series monitor, then transmitted via Modbus RTU or Modbus TCP/IP gateway interfaces to plant-level DCS (Distributed Control Systems) such as Honeywell Experion, Emerson DeltaV, or ABB 800xA. From there, the data is aggregated into SCADA platforms — including Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC — where vibration trends are visualized alongside process variables such as temperature, pressure, and flow. This end-to-end data flow, anchored at the physical layer by components like the 16710-23, is what enables true condition-based maintenance (CBM) and predictive analytics in Industry 4.0 environments.

For facilities running Siemens S7-300/S7-400 PLCs or Allen-Bradley ControlLogix controllers alongside Bently Nevada protection systems, the 16710-23 supports a hybrid architecture where vibration trip signals are hardwired to PLC digital inputs while continuous waveform data is routed through the System 1 software layer. Remote I/O modules such as the Bently Nevada 3500/92 Communication Gateway can bridge the 3300 Series rack to Ethernet-based plant networks, allowing vibration data to reach edge gateways and cloud-based analytics platforms without disrupting the real-time protection loop.

The 16710-23 is also compatible with installations using Bently Nevada 3500 Series racks in parallel monitoring configurations, where both continuous protection and condition monitoring functions are required. In such setups, the cable routing must account for separation from high-voltage power conductors to maintain signal integrity — a design consideration that Bently Nevada’s field installation guidelines address in detail and that ZYPLC’s technical team can support during pre-commissioning review.

Every 16710-23 unit supplied by ZYPLC undergoes pre-shipment functional verification, including continuity testing, shield integrity check, and connector seating confirmation. Units are sourced from authorized distribution channels and are accompanied by documentation supporting traceability. Stock availability is maintained to support both planned MRO procurement and urgent replacement scenarios, with global logistics via DHL Express and FedEx International Priority ensuring rapid delivery to refineries, power plants, compressor stations, and manufacturing facilities worldwide.

Compatibility & Integration Notes

Connected Automation Data Flow

The industrial data journey begins the moment a Bently Nevada 330180-51-05 proximity transducer detects shaft displacement. The raw analog signal — a DC gap voltage superimposed with an AC vibration component — travels through the 16710-23 connection cable into the input terminal of a Bently Nevada 3300/20 Radial Vibration Monitor card. The monitor processes the signal, extracts 1X and 2X vibration vectors, overall amplitude, and gap voltage, then outputs both relay trip contacts and a 4–20 mA analog representation of vibration level.

The 4–20 mA output feeds into an Allen-Bradley 1756-IF16 analog input module within a ControlLogix chassis, where the PLC ladder logic compares real-time vibration against configurable alert and danger setpoints. Simultaneously, the Bently Nevada 3500/92 Communication Gateway transmits Modbus TCP data frames to a plant-floor Moxa EDS-510A industrial Ethernet switch, which routes the data stream across a redundant ring topology to the SCADA server running Ignition 8.1. Within Ignition, vibration trend tags are historized in a time-series database and displayed on operator HMI screens alongside process variables from Siemens ET 200SP remote I/O stations monitoring bearing temperature and lube oil pressure.

When vibration amplitude crosses the alert threshold, the SCADA system triggers an alarm notification to the maintenance team via SMS and email, while the DCS — an Emerson DeltaV S-series controller — initiates a controlled load reduction sequence on the associated compressor train. The entire response chain, from signal acquisition through the 16710-23 cable to automated protective action, executes within the deterministic scan cycle of the protection system, ensuring machinery is safeguarded without operator intervention.

For remote sites, an Advantech ECU-1251 edge gateway aggregates vibration data from multiple 3300 Series racks and publishes MQTT data packets to a cloud-based asset performance management (APM) platform, enabling remote diagnostics and fleet-wide vibration benchmarking from a central engineering office.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is the fragmentation of machine health data across incompatible systems. Vibration monitors, PLCs, DCS controllers, and SCADA platforms often operate in isolated data silos, making it impossible to correlate mechanical condition with process performance in real time. The Bently Nevada 16710-23, as part of the 3300 Series ecosystem, directly addresses this problem by providing a reliable, noise-immune signal path that feeds into gateway-enabled monitor cards capable of speaking Modbus, Ethernet/IP, and OPC-UA — the lingua franca of modern industrial networks.

Protocol heterogeneity is another common barrier. A plant may run Profibus DP on its Siemens PLC network, Modbus RTU on legacy instrumentation, and Ethernet/IP on newer Allen-Bradley assets. The 3300 Series architecture, anchored by precision cables like the 16710-23, supports multi-protocol output configurations that allow a single vibration monitoring rack to simultaneously serve hardwired trip relays, analog 4–20 mA outputs, and digital network interfaces — eliminating the need for separate protocol converters and reducing wiring complexity.

Remote monitoring and transparent production lines are increasingly mandated by corporate reliability programs and insurance underwriters. By ensuring that vibration data from every critical machine reaches the SCADA historian without signal degradation or communication dropout, the 16710-23 contributes to the unbroken data chain that makes predictive maintenance, OEE tracking, and digital twin modeling possible. System expansion is equally straightforward: additional 3300 Series monitor cards can be added to existing racks, with new 16710-23 cables extending the monitoring network to previously unmonitored measurement points — all without disrupting the existing protection architecture.

Industrial Connectivity FAQ

Q1: Does the Bently Nevada 16710-23 introduce any signal delay that could affect vibration protection response time?
No. The 16710-23 is a passive analog cable with no active electronics. Signal propagation delay is negligible (nanosecond range) and has no measurable impact on the 3300 Series monitor’s protection response time, which is governed by the monitor card’s internal processing cycle — typically less than 20 milliseconds for trip relay activation.

Q2: Is the 16710-23 compatible with both 3300 Series and 3500 Series Bently Nevada racks?
The 16710-23 is specifically designed for 3300 Series monitor input configurations. For 3500 Series applications, Bently Nevada specifies different cable assemblies matched to the 3500 rack’s connector and impedance requirements. ZYPLC’s technical team can confirm compatibility and recommend the correct cable assembly for your specific monitor card and transducer combination.

Q3: How does the 16710-23 perform in high-EMI environments with VFDs and large motor starters nearby?
The cable’s multi-layer shielded construction provides robust attenuation of electromagnetic interference from variable frequency drives, contactors, and high-current switching equipment. For installations in particularly noisy electrical environments, Bently Nevada recommends maintaining physical separation from power cables and using dedicated cable trays — practices that ZYPLC’s application engineers can advise on during pre-installation consultation.

Q4: What does ZYPLC’s warranty terms confirmed during quotation cover for the 16710-23, and what is the typical lead time?
ZYPLC provides a warranty terms confirmed during quotation covering manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes pre-shipment continuity and shield integrity testing. For availability confirmed by RFQ units, standard lead time is 3–5 business days for international DHL/FedEx delivery. Expedited same-day dispatch is available for urgent MRO requirements. Contact our team at plc.sales@zyplc.com or +86 19859288691 for real-time stock confirmation and pricing.
