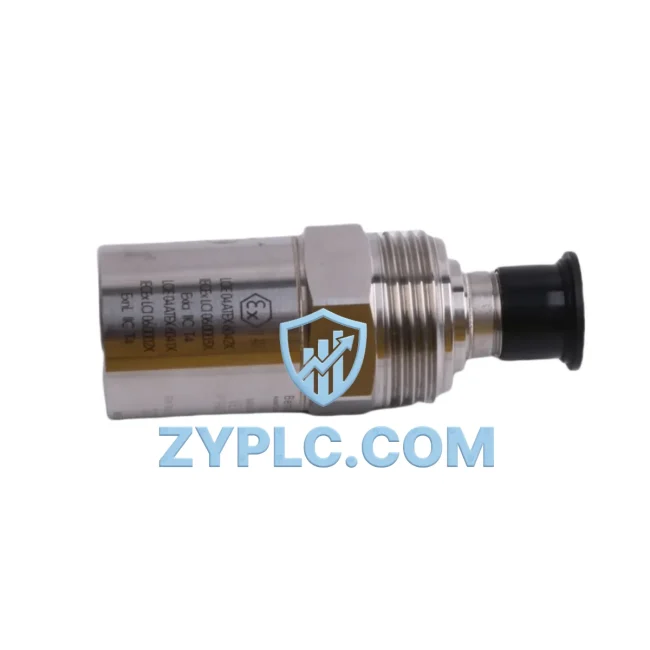

Bently Nevada 190501-02-00-01 System-Ready Velocity Sensor for 3500 Architecture

Bently Nevada 190501-02-00-01 System-Ready Velocity Sensor for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 190501-02-00-01 Velomitor CT Velocity Transducer is not simply a standalone sensing device — it is a precision-engineered component designed to function as an integral node within the Bently Nevada 3500 Series machinery protection architecture. In modern industrial automation environments, machinery health monitoring is inseparable from the broader control system hierarchy. The 190501-02-00-01 occupies a critical position at the field instrumentation layer, feeding real-time velocity and vibration data upward through the signal chain to the 3500 rack-based monitoring system, and ultimately to the plant-level DCS or SCADA platform. Understanding this product in the context of the full control architecture — from the sensor at the machine casing to the operator workstation — is essential for engineers designing reliable, redundant, and maintainable rotating equipment protection systems.

The Velomitor CT technology embedded in the 190501-02-00-01 delivers a broadband velocity output that is directly compatible with the 3500/42M Proximitor/Seismic Monitor module, enabling seamless signal conditioning without additional interface hardware. This tight integration between the transducer and the monitor module is a hallmark of the 3500 Series platform philosophy: every component is engineered for contextual integration within the rack system, reducing wiring complexity, minimizing signal degradation, and simplifying commissioning workflows on-site. When paired with the 3500/20 Rack Interface Module and the 3500/15 Power Supply Module, the 190501-02-00-01 becomes part of a fully coordinated protection loop capable of issuing alert and danger relay outputs to the plant safety interlock system within milliseconds of detecting an abnormal vibration event.

From a system architecture perspective, the 190501-02-00-01 interfaces with the control layer through the 3500 rack’s communication backplane, which supports both Modbus RTU and Ethernet/IP protocols depending on the installed communication gateway module. This allows vibration and velocity data acquired by the 190501-02-00-01 to be transmitted to a Rockwell Automation ControlLogix PLC, a Honeywell Experion DCS, or an ABB System 800xA platform for integration into the plant-wide process control strategy. The ability to bridge field-level machinery data into the process control layer is a key requirement in modern Industry 4.0 architectures, and the 190501-02-00-01 supports this requirement through its compatibility with the 3500 Series communication infrastructure.

Redundancy is a central design consideration in any critical rotating equipment protection system. The 190501-02-00-01 can be deployed in dual-transducer configurations on a single measurement plane, with each transducer connected to a separate channel of the 3500/42M monitor module. This arrangement provides voting logic capability — typically 1oo2 or 2oo2 — ensuring that a single transducer failure does not result in a spurious trip or, conversely, a missed danger condition. The 3500/20 Rack Interface Module coordinates the voting logic and relay output behavior, while the 3500/15 Power Supply Module provides redundant DC power to the transducer loop, eliminating single points of failure at the power layer. For facilities operating under IEC 61511 functional safety requirements, this redundant architecture supports the achievement of SIL 2 protection loops when properly validated.

Long-term maintenance efficiency is another dimension where the 190501-02-00-01 delivers measurable value. The Velomitor CT design eliminates the proximity probe and extension cable assembly required by eddy-current displacement transducer systems, reducing the number of field-replaceable components and simplifying periodic calibration procedures. Maintenance engineers can verify transducer output using a portable calibration shaker without removing the transducer from the machine casing, minimizing planned maintenance downtime. The 190501-02-00-01 is supplied with a 12-Month Warranty covering manufacturing defects and performance conformance, providing procurement and maintenance teams with a reliable supply chain assurance for both new installations and spare parts inventory management.

Architecture Specification Table

Coordinated Control System Design

The 190501-02-00-01 achieves its full protective capability only when integrated within a coordinated system architecture. At the rack level, the 3500/42M Proximitor/Seismic Monitor Module receives the velocity signal from the 190501-02-00-01 and applies configurable alert and danger setpoints. The 3500/20 Rack Interface Module manages communication between the monitor modules and the plant network, while the 3500/15 Power Supply Module — available in single or redundant configurations — ensures uninterrupted power delivery to the transducer loop even during a power supply module failure.

For facilities requiring displacement measurement alongside velocity, the 190501-02-00-01 can be installed on the same machine in parallel with a 3300 XL 8mm Proximity Transducer System, providing complementary vibration data across different frequency ranges. The 3500/40M Proximitor Monitor Module handles the displacement channel, and both modules share the same 3500 rack backplane, simplifying wiring and reducing panel footprint. At the network layer, the 3500 TDXnet Communication Gateway bridges the rack data to the plant Ethernet network, enabling integration with historian platforms such as OSIsoft PI or AspenTech IP.21 for long-term trend analysis and predictive maintenance programs.

Human-machine interface requirements are addressed through compatibility with the System 1 Evolution software platform, which aggregates data from multiple 3500 racks across a facility into a unified machinery health dashboard. Operators can configure alarm management, trend displays, and event logs for the 190501-02-00-01 measurement points directly within System 1, without requiring separate configuration tools. At the execution layer, relay outputs from the 3500/42M monitor can be wired to a Bently Nevada 3500/33 16-Channel Relay Module, providing discrete trip signals to the machine control system or emergency shutdown system. Terminal blocks and field wiring are managed through the 3500 rack’s I/O termination assemblies, which accept standard 1.5 mm² instrumentation cable and support both shielded and unshielded wiring configurations.

Application in Layered Automation Systems

The 190501-02-00-01 is deployed across a wide range of heavy industrial applications where rotating machinery protection is a safety and reliability priority. In power generation facilities — including gas turbine, steam turbine, and hydro generator installations — the transducer monitors bearing housing vibration velocity to detect imbalance, misalignment, and mechanical looseness conditions before they escalate to catastrophic failure. The 3500 Series architecture’s fast response time ensures that danger relay outputs reach the turbine control system within the required protection response window defined by API 670.

In petrochemical and refinery environments, the 190501-02-00-01 is installed on centrifugal compressors, pumps, and fans operating in hazardous area classifications. The transducer’s IP67 rating and wide operating temperature range make it suitable for outdoor installations in tropical and arctic climates alike. Water treatment facilities use the 190501-02-00-01 on large vertical pump motors and blower units, where continuous vibration monitoring reduces unplanned downtime and extends mean time between maintenance intervals. In mining and mineral processing operations, the transducer is applied to ball mills, crushers, and conveyor drive motors, where the harsh environment demands robust field instrumentation with minimal maintenance requirements.

Packaging and material handling production lines benefit from the 190501-02-00-01’s ability to detect early-stage bearing degradation on high-speed rotating equipment, enabling condition-based maintenance scheduling that reduces spare parts consumption and improves overall equipment effectiveness (OEE). In metallurgical and steel mill applications, the transducer’s resistance to high ambient temperatures and electromagnetic interference ensures reliable signal quality in environments where lesser instrumentation would produce erroneous readings.

Architecture Engineering FAQ

Q1: Is the 190501-02-00-01 directly compatible with the 3500/42M Proximitor/Seismic Monitor Module without additional signal conditioning?
Yes. The 190501-02-00-01 Velomitor CT is designed for direct connection to the 3500/42M monitor module’s velocity input channel. The monitor module provides the required loop power supply voltage and accepts the transducer’s broadband velocity output signal without any intermediate signal conditioner or transmitter. This plug-and-play compatibility is a core feature of the 3500 Series contextual integration architecture, reducing installation time and eliminating potential signal integrity issues introduced by additional interface hardware.

Q2: Can the 190501-02-00-01 be used in a redundant transducer configuration to support SIL 2 functional safety requirements?
Yes. The 190501-02-00-01 supports dual-transducer redundant configurations when two units are installed on the same measurement plane and connected to separate channels of the 3500/42M monitor module. The monitor module’s voting logic — configurable as 1oo2 or 2oo2 — ensures that the protection loop remains operational during a single transducer failure. For SIL 2 validation, the complete protection loop — including the 190501-02-00-01, the 3500/42M monitor, the 3500/33 relay module, and the final element — must be assessed as a system in accordance with IEC 61511 requirements. ZYPLC can provide documentation support for SIL validation projects.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the 190501-02-00-01?
The 12-Month Warranty covers manufacturing defects and performance non-conformance against the original Bently Nevada product specification. In the event of a warranty claim, ZYPLC provides replacement unit dispatch within the agreed lead time, minimizing the impact on plant operations. For long-term spare parts planning, ZYPLC maintains stock of the 190501-02-00-01 and related 3500 Series components to support both planned maintenance outages and emergency replacement requirements. Customers are encouraged to contact ZYPLC’s technical sales team to establish a framework spare parts agreement that aligns with their plant maintenance schedule and inventory optimization strategy.
