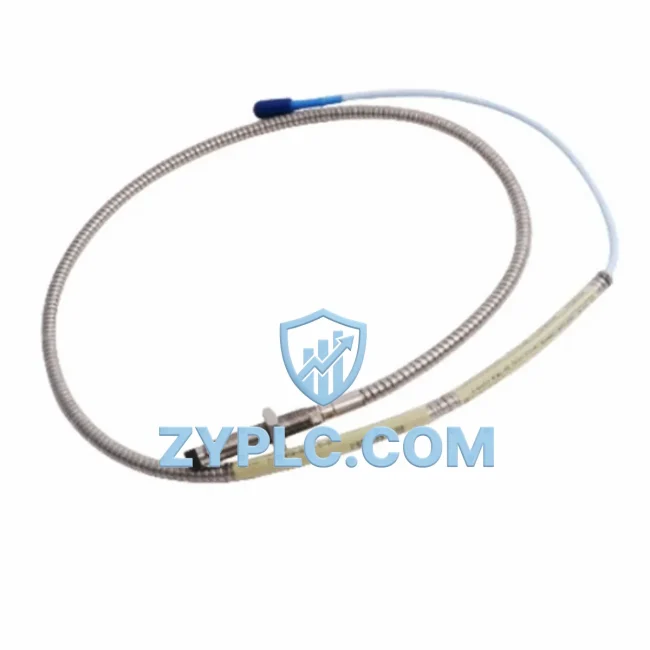

Bently Nevada 22811-00-04-10-02 System-Ready Sensor Cable for 3500 Architecture

Bently Nevada 22811-00-04-10-02 System-Ready Sensor Cable for 3500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Bently Nevada 22811-00-04-10-02 is a precision-engineered sensor cable purpose-built for deployment within the Bently Nevada 3500 Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, mining, metallurgy, and rotating equipment management — the integrity of the signal path between a transducer and its monitoring rack is not a peripheral concern. It is a foundational element of system reliability. This cable is designed to fulfill that role with consistency, dimensional accuracy, and long-term electrical stability across demanding installation environments.

Within the layered architecture of a 3500 monitoring system, the 22811-00-04-10-02 occupies the critical signal acquisition layer, bridging the physical measurement point — typically a proximity probe or accelerometer — and the input channel of a 3500 Series monitor module. The cable’s shielding characteristics, impedance matching, and connector termination are engineered to preserve signal fidelity across the full dynamic range required by the 3500/42M Proximitor Monitor, 3500/40M Proximitor Monitor, and 3500/45 Position Monitor modules. Any degradation at this layer propagates upward through the entire monitoring chain, affecting alarm accuracy, trip reliability, and ultimately machine protection outcomes.

Architecture Specification Table

Coordinated Control System Design

The 22811-00-04-10-02 does not function in isolation. Its value is realized only when it is correctly integrated into a complete Bently Nevada 3500 rack assembly and the broader plant control architecture. A typical deployment begins at the measurement point, where a 330100 Series or 330500 Series proximity probe is mounted on the machine casing or bearing housing. The probe output is routed through the 22811-00-04-10-02 extension cable to the Proximitor sensor — commonly a 3300 XL 8mm or 3300 XL 11mm Proximitor — which conditions the raw eddy-current signal into a calibrated voltage output suitable for monitor input.

This conditioned signal enters the 3500 rack through a dedicated monitor module. Depending on the measurement type — radial vibration, axial position, or differential expansion — the appropriate 3500/42M, 3500/40M, or 3500/45 module processes the signal against configured alarm and trip setpoints. The 3500/20 Rack Interface Module coordinates communication between the monitor modules and the plant DCS or SCADA layer, typically via Modbus TCP, OPC-DA, or 4–20 mA hardwired outputs to a Rockwell Automation ControlLogix or Siemens S7-400 controller.

At the power layer, the 3500 rack is supplied through a 3500/15 Power Supply Module, with redundant configurations employing dual 3500/15 units to eliminate single-point power failure risk. The I/O layer is completed by 3500 Series terminal blocks and field wiring assemblies that interface the monitor outputs with the plant safety instrumented system (SIS) or emergency shutdown system (ESD). Correct cable routing, grounding, and shield termination of the 22811-00-04-10-02 at both ends is essential to prevent ground loops that would introduce noise into the vibration measurement channel and compromise alarm discrimination.

For HMI and operator interface, the 3500 system data is typically surfaced through System 1 Evolution software or a third-party SCADA platform, providing real-time vibration trend displays, historical data logging, and alarm management. The 22811-00-04-10-02 is the first physical link in this entire data chain — its dimensional and electrical consistency directly determines the quality of the data that reaches the operator screen and the reliability of the machine protection decisions made by the system.

Application in Layered Automation Systems

In power generation facilities — gas turbines, steam turbines, and large centrifugal compressors — the 3500 Series system with 22811-00-04-10-02 sensor cables is deployed as the primary machinery protection layer. Turbine shaft vibration, bearing temperature, and differential expansion are continuously monitored, with the 3500 rack providing hardwired trip outputs to the turbine control system. The cable’s high-temperature rating makes it suitable for routing in close proximity to hot surfaces in turbine enclosures.

In petrochemical and refinery applications, the 22811-00-04-10-02 is used on critical rotating equipment including centrifugal pumps, compressors, and agitators. These environments demand cables with robust chemical resistance and reliable shielding performance in the presence of variable-frequency drive (VFD) interference. The cable’s construction supports long cable runs from remote machine locations back to centralized control room rack assemblies without signal degradation.

In mining and mineral processing, where equipment operates under high vibration, dust, and moisture exposure, the 22811-00-04-10-02 provides a reliable signal path for mill drive monitoring, crusher bearing protection, and conveyor drive condition monitoring. Its compatibility with the 3500 Series rack ensures that alarm and trip logic configured in the monitor modules operates on accurate, uncontaminated vibration data — a prerequisite for preventing catastrophic equipment failures in high-consequence production environments.

Water treatment and municipal infrastructure applications benefit from the cable’s long service life and low maintenance requirements. Pump station operators using 3500 Series monitoring rely on consistent cable performance to maintain continuous vibration surveillance without requiring frequent field calibration or cable replacement — reducing operational expenditure and supporting long-term asset management strategies.

Architecture Engineering FAQ

Q1: Is the 22811-00-04-10-02 compatible with all 3500 Series monitor modules, and does it require any additional signal conditioning?
The 22811-00-04-10-02 is designed for use with the full range of 3500 Series monitor modules that accept Proximitor or accelerometer inputs, including the 3500/42M, 3500/40M, and 3500/45. No additional signal conditioning is required when the cable is used with a compatible Bently Nevada Proximitor sensor. The cable’s impedance and shielding characteristics are matched to the 3500 system’s input specifications. Installers should verify connector compatibility and cable length against the specific Proximitor model’s extension cable requirements as documented in the applicable Bently Nevada installation manual.

Q2: How does the 22811-00-04-10-02 support redundant architecture designs, and what are the installation best practices for minimizing EMI interference?
In redundant 3500 rack configurations, dual sensor cable runs — one per redundant monitor channel — are recommended to eliminate the cable as a single point of failure. The 22811-00-04-10-02 should be routed in dedicated cable trays separated from power cables and VFD output conductors. Shield termination must be performed at one end only (typically the monitor rack end) to prevent ground loop formation. Cable bending radius must be maintained above the manufacturer’s minimum specification to preserve shield integrity and prevent impedance discontinuities that would introduce measurement error.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance and replacement planning for 3500 Series sensor cables?
The 12-Month Warranty covers manufacturing defects in materials and workmanship from the date of shipment. ZYPLC maintains stock of 22811-00-04-10-02 and related 3500 Series sensor cables to support both planned maintenance schedules and emergency replacement requirements. For facilities operating critical rotating equipment, ZYPLC recommends maintaining a defined spare cable inventory aligned with the number of monitored measurement points. Our technical team can assist with cable selection, quantity planning, and compatibility verification for existing 3500 Series installations. Contact us at [email protected] or +86 19859288691 for engineering support and lead time confirmation.
