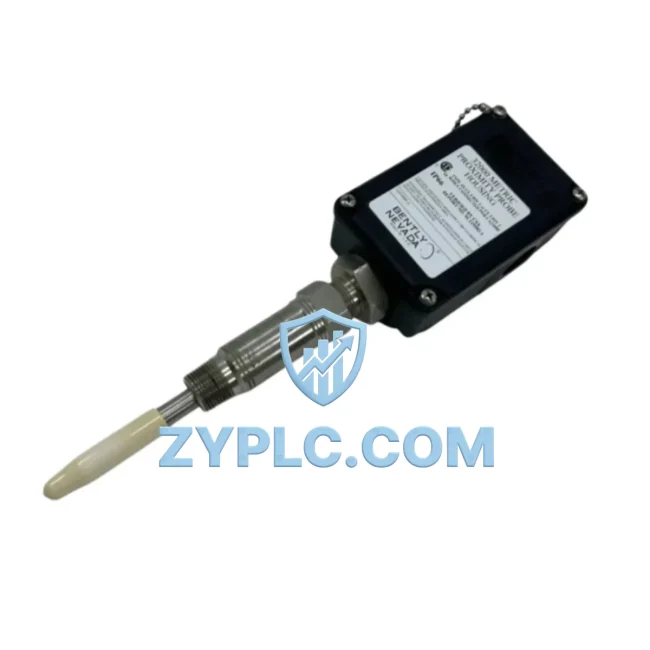

Bently Nevada 32000-28-10-00-075-02-02 System-Ready Proximity Probe for 3300 XL Architecture

Bently Nevada 32000-28-10-00-075-02-02 System-Ready Proximity Probe for 3300 XL Architecture

The Bently Nevada 32000-28-10-00-075-02-02 is an 8mm eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 XL vibration monitoring architecture. Rather than functioning as a standalone sensor, this probe is a precision front-end element in a layered condition monitoring system — one that spans from the rotating shaft surface all the way through signal conditioning, data acquisition, and machine protection logic. Understanding its role within the full control hierarchy is essential for engineers specifying replacement components, commissioning new machinery protection systems, or maintaining long-term operational continuity in rotating equipment environments.

In a complete 3300 XL system architecture, the 32000-28-10-00-075-02-02 probe operates at the sensing layer, converting mechanical displacement into a proportional voltage signal. This signal is transmitted via a matched extension cable — typically from the 330130 series — to a compatible proximitor/oscillator such as the 3300 XL 8mm Proximitor (330180-91-00). The proximitor conditions the raw eddy-current signal and outputs a calibrated DC voltage that feeds directly into the 3300 XL monitor rack. Within that rack, modules such as the 3300/20 Dual Vibration Monitor or the 3300/25 Keyphasor Module interpret the signal for radial vibration, axial position, or speed measurement, depending on the measurement point configuration.

At the control and protection layer, the processed vibration data is passed to the 3500 Series Machinery Protection System or integrated into a DCS via the 3500/92 Communication Gateway Module, enabling real-time alarm and trip logic to be executed at the plant control level. This architecture ensures that the 32000-28-10-00-075-02-02 probe is not merely a passive sensor but an active contributor to the plant’s overall safety and reliability loop — from the bearing housing to the control room.

Architecture Specification Table

Coordinated Control System Design

Deploying the 32000-28-10-00-075-02-02 within a well-coordinated system architecture requires attention to every layer of the signal chain. At the field level, the probe tip must be installed at the correct gap distance — typically 1.0mm to 1.5mm from the shaft surface — to ensure the 330180-91-00 Proximitor operates within its linear range. The extension cable, selected from the 330130 series to match the total system length encoded in the SKU suffix, must be routed away from high-voltage conductors and secured against vibration-induced fatigue.

At the signal conditioning layer, the Proximitor converts the probe’s impedance change into a usable DC voltage. This output is wired into the 3300 XL monitor rack, where the 3300/20 Dual Vibration Monitor processes radial vibration from two measurement planes simultaneously. For machines requiring speed reference, the 3300/25 Keyphasor Module accepts a once-per-revolution pulse from a dedicated Keyphasor probe — often a 330900 series probe — and synchronizes vibration data for phase and spectrum analysis.

At the network and integration layer, the 3500/92 Communication Gateway Module bridges the machinery protection system to the plant DCS or SCADA platform. This enables operators to monitor vibration trends, alarm states, and trip conditions from a centralized HMI — such as a Wonderware InTouch or Rockwell FactoryTalk View station — without requiring direct access to the monitor rack. For facilities running redundant architectures, the 3500 Series supports dual-redundant I/O and communication paths, ensuring that a single component failure does not interrupt protection coverage.

Power supply integrity is equally critical. The 3300 XL rack requires a stable 24VDC supply, typically sourced from a dedicated instrument power supply with battery backup. Any voltage fluctuation at the power layer propagates directly to the Proximitor output, introducing measurement error that can trigger nuisance alarms or mask genuine machine faults. Specifying a regulated, isolated power supply for the monitoring rack is a standard engineering practice in high-availability installations.

Application in Layered Automation Systems

The 32000-28-10-00-075-02-02 proximity probe finds application across a wide range of industries where rotating machinery reliability is critical to process continuity. In power generation plants — including gas turbines, steam turbines, and hydro generators — this probe monitors shaft radial vibration and axial position at the bearing pedestals, providing early warning of rotor imbalance, misalignment, or bearing wear before these conditions escalate to forced outages.

In petrochemical and refinery environments, the probe is installed on centrifugal compressors and process pumps that operate continuously under API 670 machinery protection requirements. The 3300 XL system, anchored by probes like the 32000-28-10-00-075-02-02, provides the continuous vibration monitoring mandated by API 670 for critical and essential machinery. Any deviation from baseline vibration levels triggers an alarm through the 3500 Series monitor, allowing maintenance teams to schedule corrective action during planned shutdowns rather than responding to unplanned failures.

In water treatment and municipal utility facilities, the probe monitors large vertical pumps and blower units that run unattended for extended periods. The integration of the 3300 XL monitoring data into the plant SCADA system — via the 3500/92 gateway — allows remote operators to track machine health trends over weeks and months, supporting a predictive maintenance strategy that reduces both maintenance labor and spare parts consumption.

In mining and mineral processing operations, where equipment operates in harsh environments with high dust, moisture, and vibration, the 32000-28-10-00-075-02-02 probe’s robust construction and sealed cable assembly provide reliable signal integrity even under demanding conditions. The 12-month warranty and pre-shipment functional testing ensure that replacement probes arrive ready for immediate installation, minimizing the time between component failure and return to full production.

Architecture Engineering FAQ

Q1: Is the 32000-28-10-00-075-02-02 compatible with existing 3300 XL monitor racks and 3500 Series systems?
Yes. The 32000-28-10-00-075-02-02 is a standard 8mm eddy-current probe designed for use with the 3300 XL Proximitor/Monitor system. It is compatible with 330180-91-00 Proximitors and integrates directly into 3300/20 and 3300/25 monitor modules. It also works within 3500 Series architectures when paired with the appropriate 3500/42M or 3500/45 monitor modules configured for 8mm probe systems. Always verify the total system length (probe + extension cable) matches the Proximitor’s calibration range before installation.

Q2: What is the recommended installation and commissioning procedure for this probe in a redundant monitoring architecture?
For redundant architectures, install the probe at the specified gap distance and verify the Proximitor output voltage falls within the linear range (typically -10V to -18V DC at operating gap). Commission both the primary and redundant signal paths independently before enabling the monitor’s trip logic. Use the 3500 Series rack’s built-in self-test functions to verify alarm and trip setpoints. Document the as-installed gap voltage and baseline vibration levels for future reference during maintenance intervals.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
All units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each probe undergoes functional testing and output verification before dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the fault. Replacement units are dispatched from available stock to minimize system downtime.
