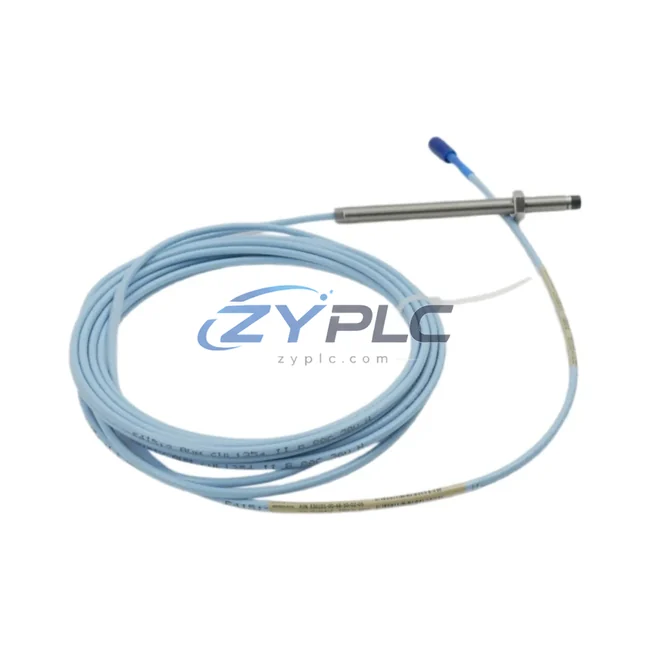

Bently Nevada 330101-00-43-20-02-05 Proximity Probe for 3300

Bently Nevada 330101-00-43-20-02-05 Proximity Probe for 3300

The Bently Nevada 330101-00-43-20-02-05 is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 Series vibration monitoring architecture. Rather than functioning as a standalone transducer, this probe is designed to operate as an integrated node within a layered industrial automation system — delivering continuous, real-time shaft displacement and vibration data to the control and protection layers above it. In rotating machinery protection environments, where signal integrity, system consistency, and long-term reliability are non-negotiable, the 330101-00-43-20-02-05 provides the foundational sensing capability upon which the entire monitoring architecture depends.

Understanding this probe’s role requires viewing it within the full control system hierarchy: from the field sensing layer where the probe tip interfaces with the rotating shaft, through the signal conditioning layer handled by the companion Bently Nevada 3300 XL 8mm Extension Cable and 3300 XL Proximitor Sensor, up to the monitoring and protection layer managed by the 3500/42M Proximitor Seismic Monitor or the 3500/40M Proximitor Monitor rack-mounted modules. The conditioned vibration signal then feeds into the plant DCS or safety instrumented system (SIS), where it contributes to turbine trip logic, alarm management, and predictive maintenance workflows.

Product Specification Table

System Compatibility Notes

The 330101-00-43-20-02-05 proximity probe achieves its full diagnostic value only when integrated within a coherent, multi-layer control system architecture. At the field layer, the probe pairs directly with the Bently Nevada 330130-045-00-00 Extension Cable to bridge the physical distance between the probe body and the Proximitor housing, maintaining signal fidelity across the cable run. The Bently Nevada 330180-X1-05 Proximitor Sensor then conditions the raw eddy-current signal into a calibrated DC voltage output, which is the standard interface expected by the monitoring layer above.

At the monitoring and protection layer, the conditioned signal is received by rack-mounted modules such as the Bently Nevada 3500/42M Proximitor Seismic Monitor or the 3500/40M Proximitor Monitor, both of which reside within the Bently Nevada 3500 Rack — a modular, backplane-based chassis that also houses the 3500/15 Power Supply Module providing regulated DC power to all installed cards. The rack’s communication gateway, typically the 3500/92 Communication Gateway Module, enables the monitoring system to transmit alarm states, vibration vectors, and trip signals to the plant-level DCS or SCADA platform via Modbus TCP, Ethernet/IP, or OPC-DA protocols.

For redundant protection architectures — common in critical turbomachinery applications such as gas turbines, steam turbines, and large centrifugal compressors — dual-probe configurations are deployed at each measurement plane, with each probe channel routed to independent monitor cards within the 3500 rack. This redundancy ensures that a single probe or cable failure does not compromise the machinery protection function. The Bently Nevada 3500/20 Rack Interface Module manages system-level communication and configuration, while the System 1 Condition Monitoring Software aggregates all channel data for trend analysis, alarm correlation, and predictive maintenance scheduling.

At the human-machine interface layer, operators interact with vibration data through DCS operator stations or dedicated condition monitoring workstations running System 1, where the 330101-00-43-20-02-05’s real-time gap and vibration readings are displayed alongside other critical process variables. This system integration between the proximity sensing layer and the plant control network is what transforms raw displacement data into actionable operational intelligence.

Industrial Application Notes

The 330101-00-43-20-02-05 proximity probe is deployed across a wide range of heavy industrial sectors where rotating machinery protection is critical to process continuity and personnel safety.

In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle power stations — this probe monitors shaft radial vibration and rotor position at bearing locations, feeding trip-critical signals to the turbine control system. A vibration exceedance detected by the 330101-00-43-20-02-05 can initiate an automatic turbine trip via the 3500 rack’s relay output module, preventing catastrophic bearing failure.

In petrochemical and refinery environments, the probe is installed on centrifugal compressors, pumps, and expanders operating in hazardous area classifications. Its compatibility with intrinsically safe Proximitor configurations allows deployment in Zone 1 and Zone 2 areas without compromising the plant’s area classification integrity.

In water treatment and municipal utility plants, the probe monitors large vertical pump motors and blower units, where early detection of shaft misalignment or bearing wear can prevent unplanned outages that disrupt water supply. The warranty terms confirmed during quotation provides procurement teams with the assurance needed to justify spare parts inventory investment.

In mining and mineral processing operations, the probe is used on SAG mill drives, conveyor head pulleys, and crusher main shafts, where the harsh environment demands robust sensing elements with proven long-term reliability. The 330101-00-43-20-02-05’s stainless steel construction and wide operating temperature range make it suitable for these demanding conditions.

In metallurgical and steel mill applications, the probe monitors rolling mill drive trains and continuous caster pinch roll assemblies, where precise shaft position measurement is essential for product quality control as well as equipment protection.

Product Compatibility FAQ

Q1: Is the 330101-00-43-20-02-05 directly compatible with the Bently Nevada 3500 Series monitoring rack without additional signal conditioning?
A: No — the 330101-00-43-20-02-05 proximity probe requires a companion Proximitor Sensor (such as the 330180 series) to condition the eddy-current signal into the DC voltage format expected by the 3500 Series monitor cards. The probe, extension cable, and Proximitor together form the complete 3300 XL transducer system, which then interfaces with the 3500/40M or 3500/42M monitor modules. Attempting to connect the probe output directly to a monitor card input without the Proximitor will result in incorrect readings and potential system faults.

Q2: Can this probe be used in a redundant dual-probe architecture, and how does the 3500 rack handle channel voting logic?
A: Yes. The 330101-00-43-20-02-05 is fully compatible with redundant dual-probe configurations. In a typical redundant arrangement, two probes are mounted 90° apart at the same axial measurement plane (X and Y orientation), each routed through its own Proximitor and into independent monitor card channels within the 3500 rack. The 3500/42M monitor supports configurable voting logic — including 1-of-2, 2-of-2, and alert/danger threshold differentiation — allowing engineers to balance protection sensitivity against spurious trip risk. The 3500/20 Rack Interface Module coordinates the voting logic across channels and communicates the resulting system state to the plant DCS.

Q3: What does the warranty terms confirmed during quotation cover, and what is the recommended spare parts strategy for long-term maintenance?
A: The warranty terms confirmed during quotation covers manufacturing defects and functional performance deviations from published specifications under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, or operation outside specified environmental limits. For long-term maintenance planning, it is recommended to maintain a minimum of one spare probe per critical measurement plane, along with matched extension cables and a spare Proximitor Sensor. Given the 3300 XL system’s role in machinery protection, spare parts availability directly impacts plant availability — sourcing from a stocking distributor with verified inventory and a clear warranty policy is essential for minimizing mean time to repair (MTTR).
