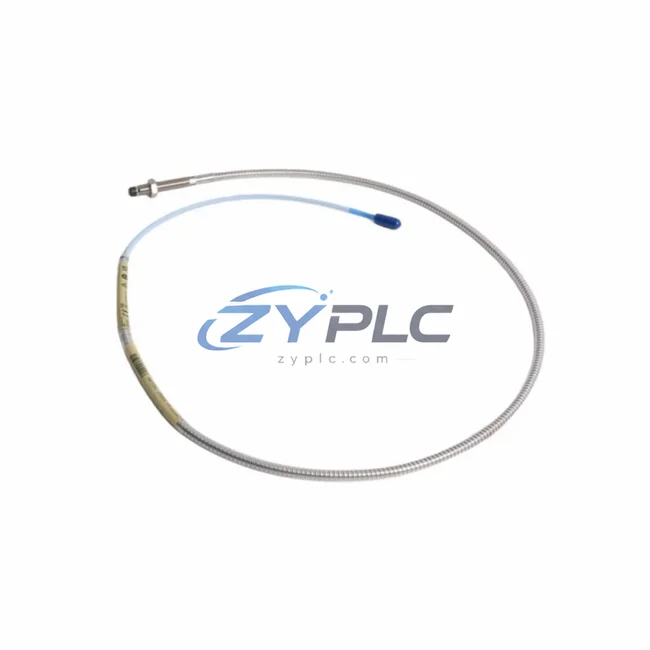

Bently Nevada 330102-00-35-05-02-05 Proximity Transducer

Bently Nevada 330102-00-35-05-02-05 Proximity Transducer: Replacement and Sourcing Information for 3300 Series Automation

The Bently Nevada 330102-00-35-05-02-05 is a high-precision eddy-current proximity transducer engineered for the 3300 Series turbomachinery protection and condition monitoring platform. In industrial environments where rotating machinery operates continuously — compressors, steam turbines, gas turbines, and pumps — undetected shaft displacement and vibration anomalies translate directly into wasted energy, unplanned downtime, and accelerated mechanical wear. The 330102-00-35-05-02-05 addresses these challenges by delivering accurate, real-time radial shaft position and vibration data to the control system, enabling operators to maintain optimal machine efficiency and reduce unplanned downtime risk across the production line.

Unlike passive monitoring approaches, the 330102-00-35-05-02-05 integrates seamlessly into the 3300 Series monitoring rack, where its signal output feeds directly into the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor. These monitors process the transducer’s 200 mV/mil (7.87 V/mm) sensitivity output to detect shaft orbit deviations in real time, allowing the control system to trigger protective shutdowns or load adjustments before energy-wasting mechanical degradation occurs. When paired with the 3500 Series rack-based monitoring system, the same transducer data can be routed through the 3500/42M Proximitor/Seismic Monitor for expanded diagnostic capability across multi-machine train configurations.

Product Specification Table

System Compatibility and Application

Effective maintenance planning in rotating machinery plants depends on a tightly integrated measurement and control architecture. The 330102-00-35-05-02-05 proximity transducer serves as the primary sensing element in this chain, converting shaft displacement into a linear voltage signal that the monitoring system can act upon immediately.

In a typical turbomachinery protection loop, the transducer’s output is conditioned by the 3300/05 Proximitor Sensor, which provides the required -24 VDC excitation and signal buffering before the data reaches the monitoring rack. The 3300/16 Dual Vibration Monitor then evaluates the signal against user-defined alert and danger setpoints. When shaft vibration exceeds the programmed threshold — often a sign of bearing wear, rotor imbalance, or lubrication degradation — the monitor issues a relay output to the plant DCS or safety PLC, initiating a controlled load reduction or protective trip. This closed-loop response prevents the machine from operating in an energy-inefficient degraded state for extended periods.

For plants running Bently Nevada’s System 1 condition monitoring software, the 330102-00-35-05-02-05 data stream integrates directly into the predictive maintenance workflow. System 1 aggregates vibration, position, and process data from multiple 3300 and 3500 Series monitors across the machine train, enabling engineers to identify developing faults — such as increasing 1X vibration amplitude on a compressor rotor — weeks before they cause energy-wasting mechanical damage. This predictive capability reduces both corrective maintenance costs and the energy penalty associated with running degraded equipment.

On the drive side, variable frequency drives (VFDs) controlling the motor-compressor train can be programmed to respond to vibration data from the 3300 Series system. When the 330102-00-35-05-02-05 detects elevated shaft displacement at a specific operating speed, the VFD can automatically adjust motor speed to move the machine away from a resonance condition, reducing both vibration amplitude and the associated energy loss. This integration between the proximity monitoring layer and the drive control layer is a key enabler of energy-efficient turbomachinery operation.

Communication between the 3300/3500 monitoring racks and the plant control system is typically handled via Modbus RTU or Modbus TCP/IP, allowing the DCS or SCADA platform to receive real-time vibration and position data for energy dashboards and production optimization algorithms. In facilities using Profibus DP or FOUNDATION Fieldbus, gateway modules can bridge the 3300 Series data into the plant-wide maintenance planning network, ensuring that turbomachinery efficiency metrics are visible alongside process flow, temperature, and power consumption data from other plant systems.

Maintenance and Replacement Notes

In a petrochemical plant running multiple centrifugal compressors, undetected rotor imbalance can increase motor current draw by 3–8% over baseline, representing significant wasted energy across a continuous 8,760-hour operating year. The 330102-00-35-05-02-05, installed at the compressor’s radial bearing locations, provides the continuous shaft position data needed to detect this imbalance early. When the 3300/16 monitor flags a rising 1X vibration trend, maintenance can schedule a targeted rotor balancing intervention during the next planned outage — eliminating the energy penalty before it compounds.

In steam turbine applications, axial position monitoring using the 330102-00-35-05-02-05 in conjunction with the 3300/25 Keyphasor Module enables precise tracking of rotor thermal expansion during startup and load changes. Accurate axial position data allows operators to optimize steam admission valve timing, reducing throttling losses and improving turbine thermal efficiency. Plants that have implemented this monitoring approach report measurable reductions in heat rate — the key energy efficiency metric for steam turbines — compared to facilities relying on periodic manual inspections.

For pump applications in water treatment or chemical processing, the proximity transducer’s shaft orbit data helps identify impeller wear and cavitation conditions that reduce hydraulic efficiency. A worn pump impeller operating with excessive shaft runout can consume 10–15% more electrical energy than a properly maintained unit delivering the same flow rate. By detecting the early signs of impeller degradation through continuous proximity monitoring, plant operators can schedule targeted maintenance interventions that restore pump efficiency and reduce operating load without waiting for a catastrophic failure.

The 330102-00-35-05-02-05 is supplied from verified inventory, undergoes functional output testing prior to shipment, and is backed by a warranty terms confirmed during quotation. Fast dispatch from stocked inventory minimizes production line downtime during replacement or commissioning activities.

Product Sourcing FAQ

Q1: How does the 330102-00-35-05-02-05 contribute to measurable operational stability in turbomachinery applications?
By providing continuous, high-resolution shaft position and vibration data to the 3300 Series monitoring system, the transducer enables early detection of mechanical conditions — rotor imbalance, bearing wear, misalignment — that cause machines to consume more energy than their design baseline. Addressing these conditions promptly, guided by the transducer’s data, keeps rotating equipment operating at peak efficiency.

Q2: Is the 330102-00-35-05-02-05 compatible with both the 3300 Series and 3500 Series Bently Nevada monitoring racks?
Yes. The 330102-00-35-05-02-05 is designed for the 3300 Series platform and is also compatible with 3500 Series racks when used with the appropriate Proximitor and monitor modules. Confirm the specific monitor card and cable configuration with your system documentation before installation.

Q3: What is the recommended replacement procedure, and how does it affect production line continuity?
Replacement of the 330102-00-35-05-02-05 typically requires a brief machine shutdown to access the bearing housing mounting location. Because the transducer is a direct plug-in replacement within the 3300 Series architecture, commissioning time is minimal. Having a tested spare unit in inventory — available from ZYPLC stock — allows maintenance teams to execute the swap during a planned maintenance window, avoiding unplanned downtime and the associated production and energy losses.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 330102-00-35-05-02-05?
Every 330102-00-35-05-02-05 unit shipped by ZYPLC undergoes functional output verification testing before dispatch. All units are covered by a warranty terms confirmed during quotation from the date of shipment, providing assurance of performance reliability in continuous industrial monitoring applications.
