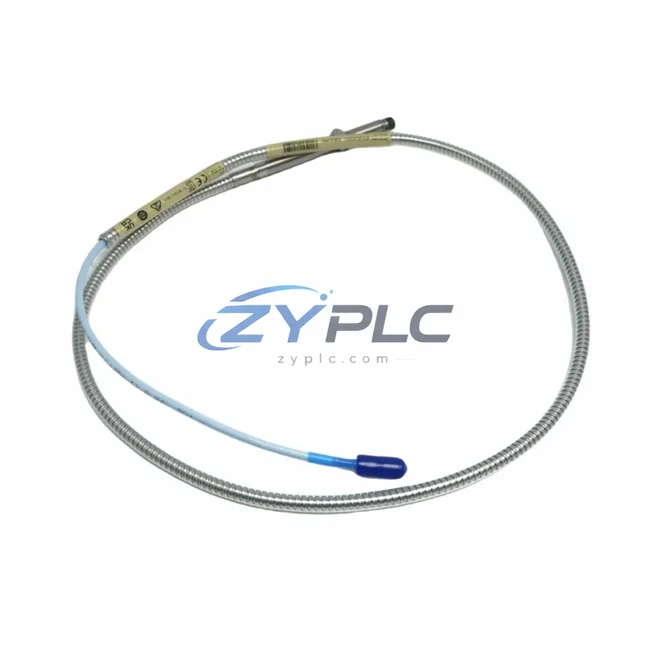

Bently Nevada 330103-00-06-10-12-05 Proximity Transducer

Bently Nevada 330103-00-06-10-12-05 Proximity Transducer for 3300 Series Automation

The Bently Nevada 330103-00-06-10-12-05 is a high-precision eddy-current proximity transducer from the industry-proven 3300 Series, engineered to deliver continuous, non-contact shaft displacement measurement in rotating machinery. In modern industrial facilities where energy efficiency and equipment uptime are mission-critical, this transducer plays a foundational role in reducing unplanned downtime risk caused by undetected mechanical imbalance, misalignment, and bearing degradation.

By providing real-time radial vibration data with sub-micron resolution, the 330103-00-06-10-12-05 enables control systems to respond dynamically to changing machine states — preventing unplanned downtime that occurs when motors and drives operate under abnormal mechanical load. When integrated with a Bently Nevada 3500/42M Proximitor I/O Module, the transducer feeds live displacement signals directly into the plant’s condition monitoring network, allowing operators to fine-tune drive parameters and reduce reactive power draw across the production line.

Product Specification Table

System Compatibility and Application

The 330103-00-06-10-12-05 does not operate in isolation — it is a precision sensing node within a broader industrial automation system. In a typical high-efficiency plant configuration, this transducer is paired with a Bently Nevada 3300 XL 8mm Extension Cable and a 3300 XL Proximitor Sensor to form a complete displacement measurement chain. The conditioned signal is then routed to a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card, which processes radial and axial position data in real time.

On the drive side, the vibration data informs the setpoint logic of ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives, enabling speed and torque adjustments that directly reduce motor load during partial-load operation. When shaft displacement trends indicate developing imbalance, the drive can automatically reduce speed or trigger a controlled ramp-down — avoiding the energy spike associated with emergency shutdowns and restarts.

For facilities running Rockwell Automation ControlLogix PLCs or Siemens S7-1500 PLCs, the 3500 Series monitor communicates over Modbus TCP or PROFIBUS DP, delivering structured vibration data directly to the PLC’s maintenance planning logic blocks. This integration allows the PLC to correlate vibration anomalies with power consumption data from Schneider Electric PowerLogic PM8000 power meters, creating a closed-loop feedback system that continuously optimizes energy use across rotating equipment.

At the HMI layer, operators using Siemens SIMATIC TP1200 Comfort Panels or Rockwell PanelView Plus 7 terminals can visualize real-time displacement trends alongside energy KPIs, enabling informed decisions about maintenance scheduling and production pacing without sacrificing throughput.

Maintenance and Replacement Notes

In petrochemical and power generation facilities, undetected rotor imbalance in large centrifugal compressors can increase motor current draw by 8–15%, translating directly into elevated energy costs and accelerated bearing wear. The Bently Nevada 330103-00-06-10-12-05 proximity transducer addresses this at the source by providing continuous, high-resolution shaft position data that enables early detection of developing faults — long before they manifest as efficiency losses or unplanned outages.

In production lines where equipment utilization rates are tracked against energy budgets, the transducer’s data feeds into predictive maintenance algorithms that schedule interventions during planned downtime windows. This eliminates the unplanned downtime associated with emergency stops, cold restarts, and extended warm-up cycles. A single avoided unplanned shutdown on a large steam turbine can recover the equivalent of weeks of transducer operating cost in saved energy and lost production.

For multi-machine production cells, the 330103-00-06-10-12-05 enables line-level energy balancing: by monitoring the vibration signature of each rotating asset, the control system can identify which machines are operating outside their efficiency envelope and redistribute load accordingly — optimizing the overall production line beat rate while minimizing aggregate power draw. Combined with a warranty terms confirmed during quotation and pre-shipment functional testing, this transducer delivers measurable ROI from day one of installation.

Product Sourcing FAQ

Q1: How does the 330103-00-06-10-12-05 contribute to measurable operational stability?
By detecting shaft displacement anomalies early, this transducer prevents motors and drives from operating under abnormal mechanical load — a leading cause of excess operating load. Integrating its output with VFD control logic enables automatic speed optimization that can reduce motor energy draw by 5–15% in affected equipment.

Q2: Is this transducer compatible with existing 3300 and 3500 Series Bently Nevada monitoring systems?
Yes. The 330103-00-06-10-12-05 is fully compatible with the Bently Nevada 3300 XL and 3500 Series monitoring platforms. It uses the standard 8mm eddy-current sensing technology and interfaces directly with 3300 XL Proximitor Sensors and 3500/42M monitor rack cards without requiring additional signal conditioning hardware.

Q3: What is the recommended replacement or upgrade path for aging proximity transducers?
For systems currently using earlier 3300 Series transducers, the 330103-00-06-10-12-05 is a direct form-fit-function replacement. No re-cabling or re-configuration of the Proximitor is required in most installations. For systems requiring extended temperature range or hazardous area certification, consult the 3300 XL product family for compatible variants.

Q4: What testing and warranty coverage is included with this unit?
Every 330103-00-06-10-12-05 unit is functionally tested prior to shipment to verify sensitivity, linearity, and output signal integrity. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified defect, replacement or repair is provided at no additional cost. Global shipping is available with full export documentation support.
