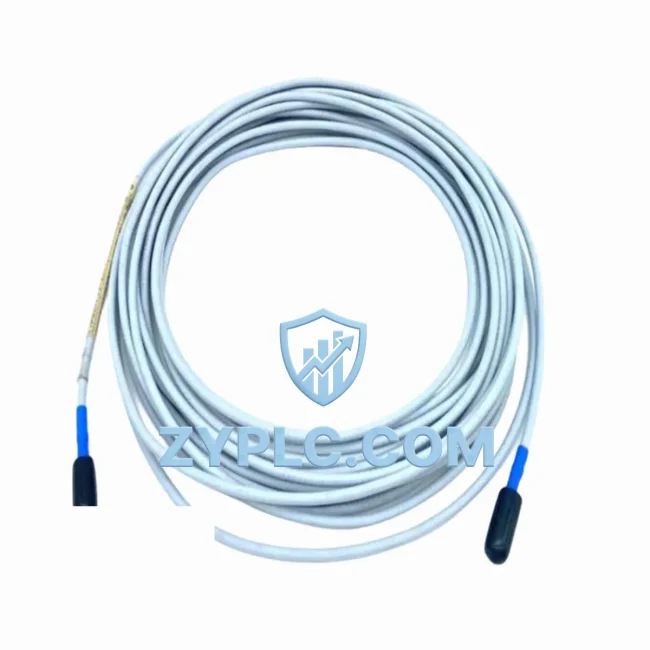

Bently Nevada 330103-05-13-10-02-00 System-Ready Proximity Probe for 3300 XL

Bently Nevada 330103-05-13-10-02-00 System-Ready Proximity Probe for 3300 XL Architecture

In modern industrial automation, vibration monitoring is not a standalone function — it is a foundational layer of the entire control system architecture. The Bently Nevada 330103-05-13-10-02-00 proximity probe is engineered to operate as a precision sensing node within the 3300 XL Series machinery protection framework, delivering continuous, high-fidelity shaft displacement data that feeds directly into the broader control and safety hierarchy of rotating equipment systems.

This probe is a 5-meter extension cable assembly designed for eddy-current non-contact measurement. It operates in conjunction with the Bently Nevada 3300 XL 8mm Proximitor Sensor and is calibrated for use with standard 3300 XL signal conditioning electronics. The probe tip, extension cable, and driver form a matched system — any substitution outside the validated assembly degrades measurement accuracy and system certification integrity. When deployed correctly, the 330103-05-13-10-02-00 delivers gap voltage linearity and sensitivity that meets API 670 machinery protection standards, making it suitable for turbines, compressors, pumps, and gearboxes in critical process environments.

Architecture Specification Table

Coordinated Control System Design

The 330103-05-13-10-02-00 does not operate in isolation. Its signal output is the entry point for a layered machinery protection and control architecture built around Contextual Integration — where each component’s role is defined by its position within the system hierarchy, not by its standalone specification. In a typical turbine or compressor protection system, this probe connects to the Bently Nevada 3300 XL Proximitor Sensor (3300/16-13-01-01-00-00), which conditions the raw eddy-current signal into a calibrated voltage output. That output feeds into a 3500/22M Transient Data Interface module or a 3300/20 Rack Monitor housed within the Bently Nevada 3500 Series Rack — a modular, 19-inch rack system that serves as the central machinery protection controller.

Within the 3500 rack architecture, the probe signal is processed alongside inputs from 3500/42M Proximitor/Seismic Monitor modules and 3500/40M Proximitor Monitor cards, which handle radial vibration, axial position, and eccentricity channels simultaneously. The rack communicates upstream via Modbus TCP or OPC-UA gateways to the plant DCS — commonly a Honeywell Experion PKS or Emerson DeltaV controller — where vibration trends are integrated with process variables such as bearing temperature, lube oil pressure, and shaft speed for full Contextual Integration across the control hierarchy.

Power integrity for the entire monitoring rack is maintained through a 3500/15 Power Supply Module, which supports redundant power input configurations. For facilities requiring continuous availability, dual power supply arrangements ensure that a single power source failure does not interrupt vibration monitoring during critical operations. The 3500/92 Communication Gateway Module bridges the rack to plant Ethernet networks, enabling real-time data streaming to historian platforms and condition monitoring software such as System 1 Evolution.

At the field level, the 330103-05-13-10-02-00 probe is typically installed alongside a 330130-080-00-00 Proximitor Sensor in a paired radial vibration measurement configuration — one probe at the X-axis and one at the Y-axis — providing full orbital analysis capability. Junction boxes with 3300 XL compatible field wiring terminals protect cable connections in harsh environments, maintaining signal integrity across long cable runs in high-vibration, high-temperature machinery enclosures. This multi-layer, multi-component architecture ensures that the 330103-05-13-10-02-00 contributes not just as a sensor, but as a system-consistent element that enhances redundancy, scalability, and long-term maintenance efficiency across the entire protection platform.

Application in Layered Automation Systems

In power generation facilities, the 330103-05-13-10-02-00 is deployed on steam turbine shaft lines where continuous radial vibration monitoring is mandatory under API 670 and ISO 10816 standards. Any deviation in shaft displacement triggers alarm and trip sequences through the 3500 rack’s relay output modules, protecting multi-million-dollar rotating assets from catastrophic failure. The probe’s Contextual Integration within the turbine protection loop ensures that vibration data is always correlated with speed, temperature, and process load signals.

In petrochemical and refinery environments, this probe monitors centrifugal compressors and process pumps operating in hazardous area classifications. Its compatibility with ATEX and IECEx certified Proximitor drivers ensures safe operation in Zone 1 and Zone 2 explosive atmospheres, where conventional contact sensors cannot be used. The complete 3300 XL assembly — probe, extension cable, and driver — maintains system certification integrity without requiring field recalibration after installation.

In water treatment and municipal infrastructure plants, large vertical pump motors and blower units benefit from continuous proximity monitoring to detect bearing wear before it progresses to unplanned downtime. The analog output from the 330103-05-13-10-02-00 integrates directly into SCADA systems via the 3500 rack’s communication gateway, enabling remote condition monitoring without on-site inspection and supporting long-term maintenance planning across distributed asset portfolios.

In metallurgical and mining operations, where rotating equipment operates under extreme load cycles and abrasive environments, the probe’s robust construction and wide operating temperature range make it suitable for ball mill drives, crusher motors, and conveyor head pulleys. Predictive maintenance programs built around 3300 XL proximity data have demonstrated measurable reductions in unplanned downtime and maintenance labor costs across these high-utilization asset classes.

For packaging and discrete manufacturing lines, the probe supports condition monitoring on high-speed spindles and servo-driven rotary actuators, where early detection of bearing degradation prevents product quality defects caused by mechanical runout. Integration with the plant MES through OPC-UA ensures that vibration events are correlated with production batch records for root cause analysis and continuous improvement programs.

ZYPLC maintains verified inventory of the 330103-05-13-10-02-00 with pre-shipment functional testing, ensuring every unit shipped meets original Bently Nevada performance specifications. Stock availability supports both emergency replacement and planned maintenance schedules, with global logistics coverage for rapid deployment to any facility worldwide. The 12-Month Warranty on every unit provides procurement teams with the confidence to source replacement components without lead-time risk or quality uncertainty.

Architecture Engineering FAQ

Q1: Is the 330103-05-13-10-02-00 compatible with both the 3300 XL and the 3500 Series monitoring racks?
Yes. The 330103-05-13-10-02-00 is a 3300 XL series probe assembly designed to interface with 3300 XL Proximitor Sensors, which in turn connect to both 3300 XL standalone monitors and 3500 Series rack-mounted monitor modules such as the 3500/40M and 3500/42M. The probe itself is the field sensing element; system compatibility is determined by the Proximitor driver and monitor card pairing. Always verify the complete probe-driver-monitor assembly against your rack configuration before installation to ensure Contextual Integration across all monitoring channels.

Q2: Can this probe be installed in a redundant monitoring architecture?
Yes. Redundant proximity probe configurations are standard practice in API 670-compliant machinery protection systems. Two probes — typically mounted 90° apart at each bearing — provide X-Y orbital data and allow the monitoring system to validate readings across channels. The 3500 rack supports voting logic between redundant inputs, enabling the system to distinguish genuine shaft events from single-sensor faults without triggering false trips. This redundancy design is a core element of the 3300 XL system architecture and is fully supported by the 330103-05-13-10-02-00 assembly.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance?
Every 330103-05-13-10-02-00 unit supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects and functional performance against original Bently Nevada specifications. Pre-shipment testing includes gap voltage linearity verification and cable continuity checks. For long-term maintenance support, ZYPLC maintains ongoing inventory of 3300 XL series probes, Proximitor sensors, and associated 3500 rack modules — including the 3500/15 Power Supply, 3500/92 Communication Gateway, and 3500/42M Monitor cards — enabling customers to source replacement components from a single, verified supplier without lead-time risk.
