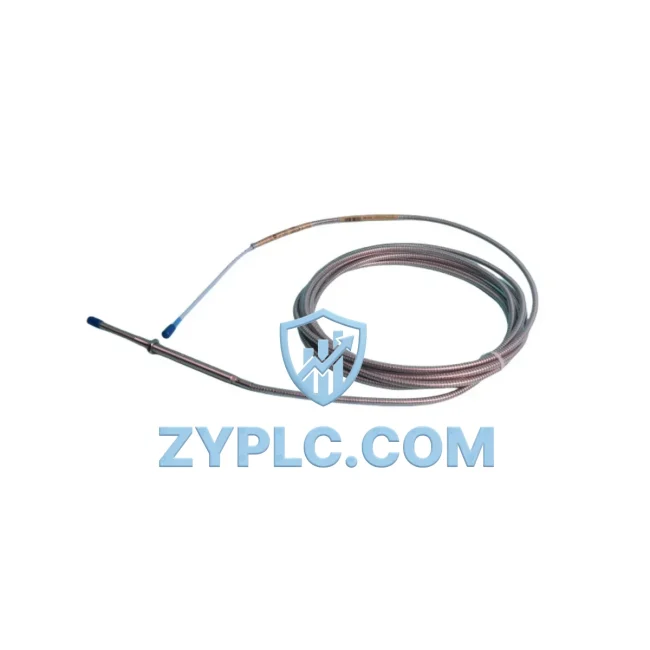

Bently Nevada 330104-00-09-50-02-00 System-Ready Proximity Probe for 3300 XL Architecture

Bently Nevada 330104-00-09-50-02-00 System-Ready Proximity Probe for 3300 XL Control Architecture

The Bently Nevada 330104-00-09-50-02-00 is an 8mm eddy-current proximity probe engineered for seamless Contextual Integration within the 3300 XL Series vibration monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, rotating machinery, and heavy manufacturing — reliable shaft displacement measurement is not an isolated function. It is the foundational signal layer upon which the entire machinery protection system depends. This probe is designed to deliver that foundation with precision, consistency, and long-term architectural compatibility.

Within a complete 3300 XL system, the 330104-00-09-50-02-00 operates as the primary sensing element in a three-component transducer chain. It works in direct coordination with a compatible extension cable (such as the 330130-045-00-00) and a proximitor/oscillator module (such as the 3300 XL 8mm Proximitor, model 330180-X1-05) to convert mechanical shaft motion into a calibrated DC voltage signal. This signal is then routed to the 3300 XL monitor rack — typically housed in a 19-inch DIN-rail or panel-mount enclosure — where modules such as the 3300/16 Dual Voting Logic Monitor or the 3300/20 Radial Vibration Monitor process the data in real time.

The architectural value of this probe extends beyond its individual measurement function. In layered automation systems, the 330104-00-09-50-02-00 feeds critical process variables into the control layer, where a distributed control system (DCS) or safety instrumented system (SIS) — such as those built on Rockwell Automation ControlLogix, Emerson DeltaV, or Honeywell Experion platforms — can act on vibration exceedances through automated shutdown sequences or alarm escalation. The probe’s output integrates directly with the 3500 Series Machinery Protection System for facilities requiring higher channel density or dual-redundant monitoring configurations.

From a system architecture perspective, the 330104-00-09-50-02-00 supports both radial vibration and axial position measurement depending on installation geometry, making it a versatile component across multiple monitoring layers. Its 5-metre armored cable option and reverse-mount tip design allow installation in confined bearing housings, turbine pedestals, compressor casings, and pump bearing brackets without compromising signal integrity or mechanical clearance.

For engineering teams managing long-term plant reliability, the availability of this probe as a stocked, warranty-backed component is critical. Unplanned downtime caused by probe failure in a rotating machinery protection loop can cascade into full unit shutdown, production loss, and safety system bypass conditions. Maintaining a verified supply of 330104-00-09-50-02-00 units — each covered by a 12-Month Warranty — ensures that maintenance windows remain planned, not reactive.

The probe is fully compatible with the Bently Nevada 3300 XL system’s Keyphasor input modules, enabling phase-referenced vibration analysis for balancing, orbit plotting, and torsional measurement. When combined with a 3300 XL 25mm Proximity Probe (model 330104-00-20-10-02-00) on the same shaft, engineers can perform differential expansion and absolute shaft position monitoring simultaneously — a configuration common in large steam turbine and gas compressor trains.

Installation and commissioning of the 330104-00-09-50-02-00 follows standard Bently Nevada gap voltage procedures, typically targeting a -10.0 VDC to -18.0 VDC operating range at nominal air gap. The probe’s linear measurement range of 0.25 mm to 2.25 mm (10 to 90 mils) provides sufficient dynamic range for most rotating machinery applications. Calibration verification can be performed using a Bently Nevada 3300 XL Field Calibrator or equivalent bench setup, ensuring system accuracy is maintained across the full measurement chain from probe tip to monitor output.

© 2026 ZYPLC. All rights reserved.
Original Source: https://zyplc.com
Contact: +86 19859288691 | plc.sales@zyplc.com

Architecture Specification Table

Coordinated Control System Design

The 330104-00-09-50-02-00 proximity probe does not operate in isolation — it is one node in a coordinated machinery protection and process control architecture. A complete 3300 XL monitoring loop begins at the probe tip and extends through the 330130-045-00-00 extension cable, into the 330180-X1-05 Proximitor module, and onward to the 3300/20 Radial Vibration Monitor housed in the system rack. For facilities requiring higher-integrity protection, the signal chain can be extended into a 3500 Series rack, where the 3500/42M Six-Channel Radial Vibration Monitor provides dual-voting logic and relay output for automated machinery trip.

At the control layer, vibration data from the 3300 XL system is typically transmitted via a 4–20 mA analog output or Modbus RTU/TCP interface to a plant DCS or SCADA platform. In Rockwell Automation environments, this data feeds into a ControlLogix L8x controller via an analog input module such as the 1756-IF16 or through an EtherNet/IP gateway. In Emerson DeltaV architectures, the signal integrates with the DeltaV S-series I/O subsystem for alarm management and historian logging.

Power supply integrity is equally critical. The 3300 XL Proximitor modules require a stable -24 VDC supply, typically sourced from a Bently Nevada 3300 XL Power Supply module or an equivalent redundant DC power distribution unit within the control cabinet. Redundant power architectures — using dual power supply modules with automatic failover — ensure that probe signal continuity is maintained even during power supply maintenance or fault conditions.

For Keyphasor-referenced analysis, a dedicated Keyphasor probe (such as the 330104-00-06-10-02-00) is installed on the shaft to provide once-per-revolution phase reference signals. This enables the 3300 XL system to perform synchronous vibration analysis, supporting balancing operations, orbit plot generation, and torsional resonance identification — functions essential for gas turbine, steam turbine, and large centrifugal compressor health management programs.

Application in Layered Automation Systems

The 330104-00-09-50-02-00 proximity probe finds application across a broad range of process industries where rotating machinery protection is a regulatory and operational requirement. In power generation facilities — including gas turbine combined-cycle plants, steam turbine generators, and hydroelectric units — this probe monitors shaft radial vibration on main bearings, providing early warning of rotor imbalance, misalignment, oil whirl, and rub conditions before they escalate to catastrophic failure.

In petrochemical and refinery environments, the probe is installed on critical rotating equipment including centrifugal compressors, boiler feed pumps, and reactor agitators. API 670 machinery protection standards mandate continuous vibration monitoring on these machines, and the 3300 XL system with 330104-00-09-50-02-00 probes provides a fully compliant monitoring solution. The probe’s high-temperature rating makes it suitable for hot-section bearing housings in fired heater fans and process gas compressors.

Water treatment and municipal utility facilities use this probe on large vertical turbine pumps and horizontal split-case pumps, where bearing condition monitoring reduces unplanned outages and extends mean time between maintenance (MTBM). Mining and mineral processing operations deploy the 3300 XL system on SAG mill pinion bearings, crusher main shafts, and conveyor drive gearboxes, where the probe’s robust armored cable construction withstands high-vibration, high-dust installation environments.

In packaging and discrete manufacturing lines, the probe supports condition-based maintenance programs on high-speed spindles, servo-driven axes, and precision gearboxes, integrating vibration data into MES and CMMS platforms for predictive maintenance scheduling. Across all these applications, the 12-Month Warranty on each 330104-00-09-50-02-00 unit provides procurement teams with the assurance needed for long-term spare parts planning and capital budget justification.

Architecture Engineering FAQ

Q1: Is the 330104-00-09-50-02-00 directly compatible with both the 3300 XL and 3500 Series monitor racks?
A: Yes. The 330104-00-09-50-02-00 8mm proximity probe is compatible with both the 3300 XL and 3500 Series monitor systems when paired with the appropriate Proximitor/Oscillator module. For 3300 XL applications, use the 330180-X1-05 Proximitor. For 3500 Series integration, the 3500/42M or 3500/45 monitor modules accept the same transducer chain. Always verify the extension cable length matches the total probe-to-Proximitor distance to maintain calibration accuracy.

Q2: What installation and commissioning steps are required to ensure accurate gap voltage calibration?
A: After mechanical installation, set the probe-to-target air gap to the midpoint of the linear range — typically 1.0 mm (40 mils) — and verify the Proximitor output reads approximately -12.0 VDC to -14.0 VDC. Use a calibrated gap tool or feeler gauge for initial setup. Perform a full-range linearity check by adjusting the gap from 0.25 mm to 2.25 mm and recording output voltage at each increment. Document calibration results in the plant CMMS for traceability. Recalibration is recommended after any probe replacement or following significant thermal cycling events.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
A: Each 330104-00-09-50-02-00 unit supplied by ZYPLC is backed by a 12-Month Warranty covering manufacturing defects, signal output deviation beyond published specifications, and cable integrity failures under normal operating conditions. This warranty period aligns with typical annual plant turnaround cycles, allowing maintenance engineers to schedule probe inspection and replacement during planned outages rather than responding to in-service failures. For spare parts planning, we recommend maintaining a minimum of two probe assemblies per monitored machine train to ensure immediate availability during unplanned maintenance events. Contact plc.sales@zyplc.com for warranty claims and technical support.
