Bently Nevada 330104-01-09-50-02-05 Proximity Probe for 3300 Series Systems

Bently Nevada 330104-01-09-50-02-05: Industrial Data Link for 3300 Series Smart Factory Connectivity

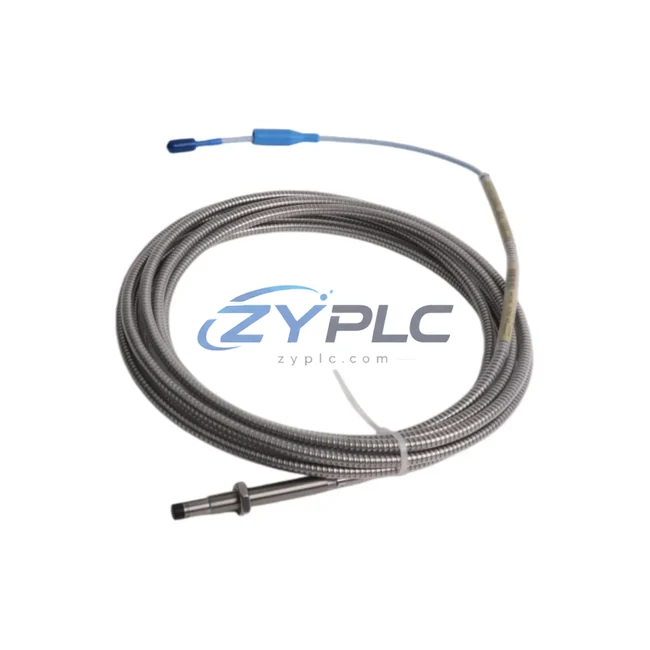

The Bently Nevada 330104-01-09-50-02-05 is a high-precision eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. Designed to operate within demanding industrial environments, this probe serves as a critical node in the plant-wide data acquisition chain — converting mechanical displacement and shaft vibration signals into reliable analog outputs that feed directly into condition monitoring systems, DCS controllers, SCADA platforms, and predictive maintenance networks. With a 5-meter armored cable, metric thread configuration, and 50 mil (1.27 mm) linear range, the 330104-01-09-50-02-05 delivers consistent, low-noise signal integrity across rotating machinery applications including turbines, compressors, pumps, and gearboxes.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, the 330104-01-09-50-02-05 proximity probe functions as the front-end sensing element in a layered industrial data architecture. Mounted at the bearing journal of a high-speed rotating machine, the probe continuously measures radial shaft displacement and transmits a conditioned analog voltage signal to the Bently Nevada 3300 XL Proximitor Sensor — the signal conditioning module that linearizes and amplifies the raw eddy-current output into a stable –24 VDC referenced signal.

This conditioned signal is then routed into the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card, which performs real-time threshold comparison, alarm logic, and trip relay activation. The 3500 rack communicates upstream via its built-in Modbus TCP or EtherNet/IP gateway interface, feeding vibration amplitude, phase, and gap voltage data into the plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV system — where operators monitor shaft centerline plots and trend data on HMI workstations.

For facilities running Siemens S7-300 or S7-400 PLCs as the primary control layer, the 3500 system’s analog output cards interface directly with the PLC’s analog input modules, enabling the controller to trigger protective shutdowns or load-shedding sequences when vibration thresholds are exceeded. In parallel, the vibration data stream is forwarded to the plant SCADA server — commonly running GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation — where long-term trend logging, alarm history, and remote diagnostic dashboards are maintained.

Edge computing nodes, such as the Bently Nevada System 1 software platform or third-party IIoT gateways running OPC-UA, aggregate multi-channel vibration data from multiple 330104-series probes installed across a compressor train or turbine package. This data is then published to cloud-based asset performance management (APM) platforms, enabling remote diagnostics, anomaly detection, and maintenance scheduling without requiring on-site personnel. Remote I/O modules — including Bently Nevada 3500/92 Communication Gateway cards — bridge the gap between the monitoring rack and the plant Ethernet backbone, ensuring low-latency, deterministic data delivery to upstream systems.

The 330104-01-09-50-02-05 is fully compatible with the broader Bently Nevada 3300 XL probe system family, including the 330130 Proximitor Sensor, 330180 extension cables, and 330100 standard proximity probes, allowing seamless channel expansion without recalibration of the signal chain. When integrated with Bently Nevada’s Trendmaster Pro distributed monitoring system or the 1900/65 General Purpose Equipment Monitor, the probe supports plant-wide vibration surveillance across dozens of measurement points from a single networked platform.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible monitoring systems, proprietary protocols, and isolated sensor networks. The Bently Nevada 330104-01-09-50-02-05, when deployed as part of the 3300 XL or 3500 monitoring architecture, directly addresses these data isolation problems by providing a standardized, high-fidelity analog signal that can be ingested by virtually any industrial control or monitoring platform.

Legacy plants often operate with a mix of older 3300 Series monitors, newer 3500 rack systems, and third-party vibration analyzers — each storing data in separate historians with no unified view of machine health. By standardizing on the 330104-01-09-50-02-05 probe across all rotating equipment, maintenance teams can consolidate vibration data into a single SCADA or APM platform, eliminating the data silos that delay fault detection and increase unplanned downtime.

Protocol unification is achieved through the 3500 system’s multi-protocol communication cards, which translate the probe’s analog output into Modbus RTU, Modbus TCP, EtherNet/IP, or PROFIBUS DP — enabling direct integration with existing PLC networks, DCS systems, and OPC-DA/UA servers without requiring additional signal converters or middleware. This dramatically reduces integration complexity and commissioning time for new installations or system upgrades.

For remote monitoring applications — offshore platforms, pipeline compressor stations, or unmanned substations — the 330104-01-09-50-02-05 supports long-distance signal transmission via the 3500 system’s fiber-optic communication options, ensuring that vibration data reaches the central control room or cloud APM platform with minimal latency and zero signal degradation. Alarm notifications, trip events, and diagnostic reports are automatically forwarded to maintenance personnel via the SCADA system’s alarm management module, enabling rapid response without requiring physical presence at the machine.

Production line transparency is further enhanced by integrating the probe’s data stream with MES (Manufacturing Execution System) platforms, where machine availability, vibration trend alerts, and maintenance work orders are automatically generated based on real-time condition data — closing the loop between the field sensor and the enterprise asset management system.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330104-01-09-50-02-05 support for SCADA and DCS integration?
The 330104-01-09-50-02-05 proximity probe outputs a standard analog voltage signal (–24 VDC bias) that is compatible with all major industrial monitoring platforms. When connected to the Bently Nevada 3500 monitoring rack, the system supports Modbus RTU, Modbus TCP, EtherNet/IP, and PROFIBUS DP communication protocols, enabling direct integration with Siemens, Rockwell, Honeywell, and Emerson DCS/SCADA systems without additional protocol converters.

Q2: How does the 330104-01-09-50-02-05 ensure network stability and low-latency data transmission in high-vibration environments?
The probe’s armored coaxial cable construction and shielded connector system provide excellent EMI/RFI rejection, ensuring stable signal transmission even in electrically noisy industrial environments. The 3300 XL Proximitor Sensor’s built-in signal conditioning circuitry filters out high-frequency electrical interference, delivering a clean, low-noise analog output with a frequency response of DC to 10 kHz — sufficient for detecting both slow-roll runout and high-frequency bearing defect frequencies.

Q3: Can the 330104-01-09-50-02-05 be integrated into an existing 3500 rack system without replacing other monitoring channels?
Yes. The 330104-01-09-50-02-05 is fully backward-compatible with the Bently Nevada 3500 Series monitoring rack and can be added to an existing installation by connecting to any available 3500/42M or 3500/40M monitor card input channel. No system-wide reconfiguration is required, and the new channel is automatically recognized by the 3500 rack’s configuration software, minimizing commissioning time and production disruption.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 330104-01-09-50-02-05?
Every Bently Nevada 330104-01-09-50-02-05 unit shipped by ZYPLC undergoes pre-shipment functional verification, including gap voltage linearity check, cable continuity test, and connector integrity inspection. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support, with technical assistance available via +86 19859288691 or plc.sales@zyplc.com.
