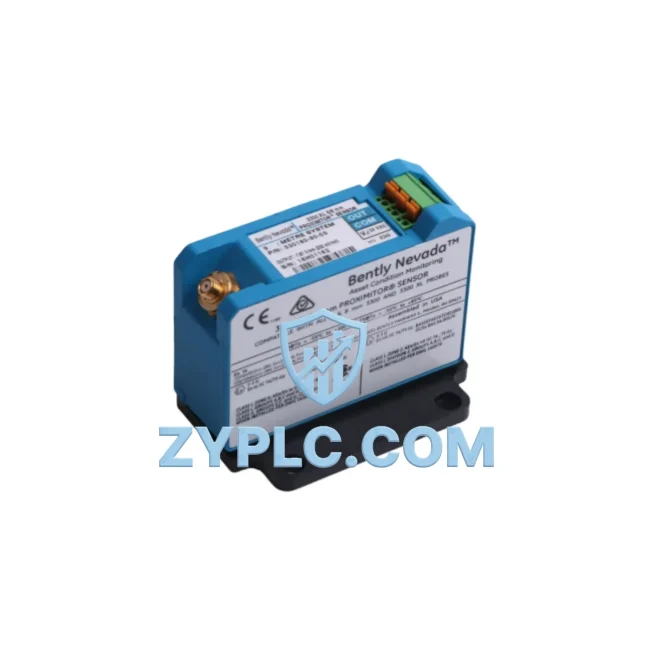

Bently Nevada 330180-90-05 Energy-Saving Proximitor Sensor 3300 XL

Bently Nevada 330180-90-05 Energy-Saving Proximitor Sensor 3300 XL: Precision Efficiency Control for Industrial Automation

The Bently Nevada 330180-90-05 is a high-performance eddy-current proximitor sensor from the renowned 3300 XL Series, engineered to deliver continuous, real-time shaft vibration and position monitoring in demanding turbomachinery and rotating equipment environments. Far beyond simple displacement measurement, this sensor forms the cornerstone of an energy-aware automation architecture — enabling factories to reduce unnecessary energy consumption, minimize unplanned downtime, and optimize the operational rhythm of critical production lines.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to detect mechanical anomalies before they escalate into failures is not merely a maintenance advantage — it is a direct energy efficiency strategy. The 330180-90-05 provides the precise, low-latency signal output required to feed vibration data into control systems, allowing engineers to act on real conditions rather than fixed schedules.

Efficiency Performance Table

Energy-Aware Automation Architecture

The Bently Nevada 330180-90-05 does not operate in isolation. Its true value is realized when integrated into a layered automation and energy management architecture. In a typical high-efficiency plant configuration, this proximitor sensor works alongside the Bently Nevada 3300/16-24-01-01-00-00-00 16-channel monitor rack, which aggregates vibration, position, and speed signals from multiple measurement points across a turbine train or compressor skid. The monitor rack communicates with plant-level DCS platforms — such as those running on Rockwell Automation ControlLogix PLCs or Siemens S7-400 series controllers — via standard 4–20 mA analog loops or digital Modbus RTU/TCP protocols.

On the drive side, variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 series receive speed-reference corrections derived from vibration trend data, allowing motor speed to be dynamically adjusted to match actual load demand rather than running at fixed setpoints. This closed-loop interaction between the 330180-90-05 sensor signal, the monitor rack output, and the VFD speed command is one of the most direct pathways to measurable energy savings in rotating equipment applications.

For power quality and energy consumption tracking, the sensor data feeds into energy monitoring modules — such as the Schneider Electric PowerLogic ION7650 or equivalent power meters — enabling engineers to correlate mechanical vibration trends with real-time kWh consumption. When vibration levels rise, energy draw typically increases due to mechanical inefficiency; catching this early with the 330180-90-05 allows corrective action before energy waste compounds.

On the I/O and communication layer, Bently Nevada TDXnet transient data interface modules or System 1 condition monitoring software aggregate the proximitor outputs alongside temperature, pressure, and speed signals from other field instruments. This unified data stream supports both real-time alarming and long-term trend analysis — the foundation of any credible predictive maintenance program. HMI terminals running on platforms such as the Siemens SIMATIC TP1500 or Rockwell PanelView Plus 7 display live vibration waveforms and gap values, giving operators immediate visibility into machine health without requiring specialist interpretation.

Power supply reliability is equally critical in this architecture. Dedicated 24 VDC DIN-rail power supplies — such as the Phoenix Contact QUINT series — ensure stable, clean power delivery to the proximitor electronics, preventing measurement drift caused by supply voltage fluctuation. In hazardous area installations, MTL or Pepperl+Fuchs Zener barriers provide the necessary intrinsic safety isolation between the sensor field circuit and the control room equipment.

Power Optimization in Real Production Lines

Consider a petrochemical facility operating a multi-stage centrifugal compressor train. Without continuous shaft vibration monitoring, the maintenance team relies on time-based overhaul schedules — replacing bearings and seals at fixed intervals regardless of actual wear condition. This approach wastes both materials and energy: a machine running with excessive clearance due to worn bearings draws more power to maintain the same throughput, and an emergency shutdown triggered by an undetected failure causes energy-intensive restart sequences that can spike demand charges significantly.

With the Bently Nevada 330180-90-05 installed at each bearing journal, the 3300 XL monitor continuously tracks shaft centerline position and dynamic vibration amplitude. When a developing bearing defect causes the shaft orbit to shift, the monitor issues an early alert — days or weeks before the condition would be detectable by periodic manual checks. The maintenance team can schedule a planned intervention during a low-production window, avoiding both the energy cost of an emergency restart and the production loss of an unplanned outage.

On the production line rhythm side, the real-time gap signal from the 330180-90-05 can be used to verify that rotating equipment is operating within its designed efficiency envelope. A compressor running with excessive shaft vibration is not only at risk of mechanical failure — it is also consuming more energy per unit of output than a well-aligned, properly balanced machine. By maintaining vibration within alarm thresholds, the sensor indirectly enforces the operating conditions under which the equipment was designed to achieve its rated efficiency.

Inventory availability for the 330180-90-05 is maintained at ZYPLC to support both planned maintenance projects and urgent replacement needs. Each unit undergoes functional output testing and gap calibration verification before shipment, ensuring that the sensor installed on your critical machine performs to specification from day one. Combined with a 12-month warranty, this gives procurement and reliability engineers the confidence to specify the 330180-90-05 as a direct replacement or upgrade component without extended qualification lead times.

Energy Optimization FAQ

Q1: How does the Bently Nevada 330180-90-05 contribute to energy savings in rotating equipment?
The 330180-90-05 provides continuous, high-resolution shaft vibration and position data that enables early detection of mechanical degradation. By identifying developing faults before they cause efficiency losses or failures, the sensor allows maintenance teams to intervene at the optimal time — keeping equipment operating within its designed efficiency envelope and avoiding the energy penalties associated with mechanical imbalance, misalignment, or bearing wear.

Q2: Is the 330180-90-05 compatible with existing DCS, PLC, and SCADA systems?
Yes. The 3300 XL Proximitor system outputs a standard analog voltage signal (nominally –24 VDC linear) that is compatible with virtually all industrial control platforms. When paired with a Bently Nevada 3300 Series monitor rack, the system can interface with Rockwell ControlLogix, Siemens S7 series, ABB 800xA, and other DCS/SCADA platforms via 4–20 mA, Modbus RTU/TCP, or OPC-UA communication paths.

Q3: What is the recommended replacement or upgrade path for older 3300 Series proximitor sensors?
The 330180-90-05 is a direct form-fit-function replacement for earlier 3300 XL proximitor configurations using the same probe/extension cable/proximitor system architecture. No rewiring or recalibration of the monitor rack is required when replacing a like-for-like unit. For systems migrating from older 7200 Series sensors, a system assessment is recommended to verify gap range and output scaling compatibility.

Q4: What testing and warranty coverage is provided with the 330180-90-05?
Every Bently Nevada 330180-90-05 supplied by ZYPLC is functionally tested prior to shipment, including output linearity verification across the specified gap range. A 12-month warranty covers defects in materials and workmanship from the date of shipment. Expedited shipping options are available to support urgent maintenance requirements, and our technical team can provide installation and commissioning guidance upon request.
