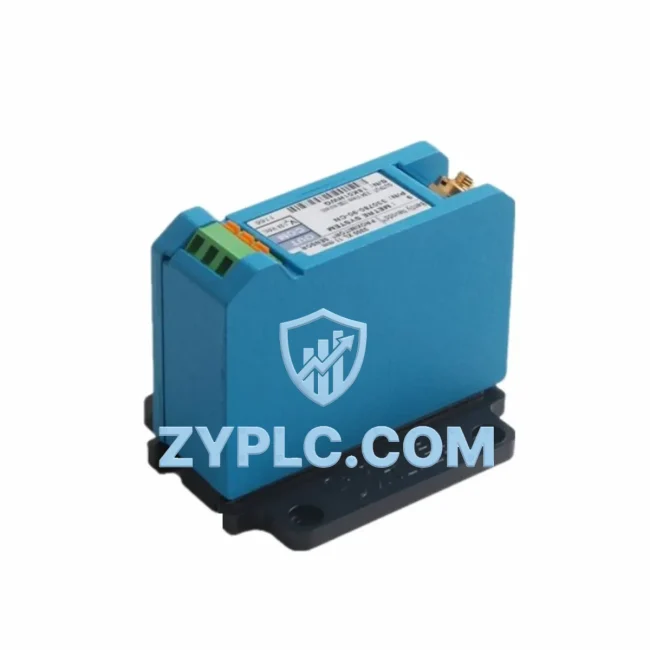

Bently Nevada 330180-91-00 System-Ready Proximitor for 3300 Architecture

Bently Nevada 330180-91-00 System-Ready Proximitor for 3300 Architecture

The Bently Nevada 330180-91-00 is a precision eddy-current proximitor sensor engineered for seamless integration within the 3300 Series vibration monitoring architecture. Unlike standalone sensing devices, this proximitor is designed from the ground up to function as a coordinated node within a layered industrial control system — bridging the gap between the physical machine layer and the supervisory control layer with exceptional signal fidelity and long-term reliability.

In modern industrial facilities — whether in power generation, petrochemical refining, water treatment, or heavy manufacturing — the integrity of rotating machinery monitoring depends not on individual sensors alone, but on the coherence of the entire measurement chain. The 330180-91-00 proximitor serves as the signal conditioning backbone between the eddy-current probe tip and the 3300/16 Monitor or 3300/20 Monitor, converting raw proximity displacement into a calibrated voltage signal that feeds directly into the plant’s condition monitoring and protection logic.

This architecture-first design philosophy means the 330180-91-00 is not simply a replacement part — it is a system component that must be selected, installed, and commissioned with full awareness of its upstream and downstream dependencies. When paired with compatible 330130 Series extension cables and 330101 Series probe assemblies, the complete measurement loop achieves the sub-micron resolution and phase accuracy required for critical shaft displacement and radial vibration analysis.

Architecture Specification Table

Coordinated Control System Design

The 330180-91-00 proximitor occupies a critical position in the signal flow hierarchy of a Bently Nevada 3300 Series machinery protection system. Understanding its role requires mapping the full architecture from the machine shaft to the control room.

At the sensing layer, the 330101-00-08-10-02-00 probe (or equivalent 3300 Series eddy-current probe) is mounted adjacent to the rotating shaft. The probe generates a high-frequency oscillating electromagnetic field; as the shaft surface moves relative to the probe tip, the field impedance changes. This raw signal is transmitted via a 330130 Series extension cable — available in standard lengths from 1 to 9 meters — to the 330180-91-00 proximitor, which is typically mounted in a junction box or instrument enclosure near the machine.

The proximitor demodulates the oscillator signal and outputs a DC voltage proportional to the gap between probe tip and shaft surface. This conditioned analog signal is then routed to the 3300/16 Monitor or 3300/20 Monitor housed in the control cabinet. These monitors perform real-time comparison against alarm and danger setpoints, triggering relay outputs to the plant’s safety interlock system or DCS when thresholds are exceeded.

At the control layer, the monitor’s relay outputs interface with the plant’s Allen-Bradley ControlLogix or Siemens S7-400 safety PLC, which coordinates the machinery protection response — initiating controlled shutdowns, activating backup systems, or alerting operators via the HMI workstation running Bently Nevada System 1 condition monitoring software. System 1 aggregates vibration, temperature, and process data across multiple machine trains, enabling predictive maintenance scheduling and long-term trend analysis.

For facilities requiring network-level integration, the TDXnet Communication Interface module bridges the 3300 Series monitor data to Modbus TCP or OPC-DA/OPC-UA protocols, allowing the vibration data stream to be consumed by the plant’s DCS historian or SCADA platform without additional signal conversion hardware. This eliminates the need for redundant analog wiring runs and reduces the risk of signal degradation over long cable distances.

Power integrity across the measurement chain is maintained by a dedicated –24 VDC instrument power supply, typically a redundant rail-mount unit installed in the same marshalling cabinet as the 3300 monitors. Proper power supply selection — with sufficient current headroom for all connected proximitor channels — is essential to maintaining the bias voltage stability that the 330180-91-00 requires for accurate gap measurement.

In redundant architecture designs, dual proximitor channels are often deployed on critical machines, with each channel feeding an independent monitor card. The 3300/55 Dual Voting or 3300/46M monitor configurations support 1oo2 or 2oo3 voting logic, ensuring that a single sensor or proximitor failure does not trigger a spurious trip while still maintaining full protection coverage.

Application in Layered Automation Systems

The 330180-91-00 is deployed across a wide range of heavy industrial environments where rotating machinery reliability is directly tied to production continuity and safety compliance.

Power Generation: In gas turbine and steam turbine applications, the 330180-91-00 monitors shaft radial displacement on journal bearings. Turbine operators rely on the 3300 Series architecture to detect rotor instability, oil whirl, and bearing wear before they escalate to catastrophic failure. The proximitor’s fast response time — well within the bandwidth required for turbine protection — ensures that the 3300/16 Monitor can initiate a controlled trip within milliseconds of a danger threshold crossing.

Petrochemical and Refining: Centrifugal compressors in ethylene crackers, hydrogen compressors, and refrigeration trains operate continuously under high differential pressure. The 330180-91-00, installed in hazardous area junction boxes with appropriate cable glands and conduit seals, provides the continuous shaft position data that operators use to detect surge precursors and bearing degradation. Integration with the plant DCS via the TDXnet interface allows vibration alarms to be correlated with process variables such as suction pressure and discharge temperature.

Water and Wastewater Treatment: Large vertical turbine pumps and horizontal centrifugal pumps in water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller imbalance, and bearing wear. The 330180-91-00’s wide operating temperature range and robust housing make it suitable for the humid, chemically aggressive environments common in water treatment infrastructure.

Mining and Minerals Processing: Ball mills, SAG mills, and large conveyor drive motors in mining operations are subject to extreme mechanical loads and vibration. Deploying the 330180-91-00 on critical drive shafts, integrated with the plant’s System 1 software, enables maintenance teams to shift from time-based to condition-based maintenance schedules — reducing unplanned downtime and extending bearing service life.

Packaging and Discrete Manufacturing: High-speed rotary equipment in packaging lines — including rotary fillers, capping machines, and labeling systems — can benefit from proximity-based shaft monitoring to detect early-stage mechanical looseness and misalignment before they cause product quality defects or line stoppages.

Architecture Engineering FAQ

Q1: Is the 330180-91-00 compatible with all 3300 Series monitors, and can it be integrated into an existing DCS or safety PLC architecture?
The 330180-91-00 is fully compatible with the complete 3300 Series monitor family, including the 3300/16, 3300/20, 3300/46M, and 3300/55 Dual Voting monitors. Its analog voltage output (–24 VDC bias, 200 mV/mil sensitivity) is a standard 3300 Series signal format, requiring no additional signal conditioning for monitor input. For DCS or PLC integration, the monitor’s relay outputs and optional 4–20 mA retransmission outputs connect directly to standard analog input modules. For digital integration, the TDXnet Communication Interface provides Modbus TCP and OPC connectivity. All ZYPLC-supplied units are tested against 3300 Series calibration standards prior to shipment.

Q2: What are the key installation and commissioning considerations when replacing a 330180-91-00 in an operating plant?
Replacement of the 330180-91-00 in a live plant requires careful attention to cable continuity, bias voltage verification, and gap re-calibration. Before installation, verify that the extension cable (330130 Series) and probe (330101 Series) are undamaged and within specification. After installation, measure the proximitor output voltage with the machine at rest to confirm the static gap is within the linear range (typically –10 to –18 VDC for standard 3300 probes). Commission the monitor channel by verifying alarm and danger setpoints against the plant’s machinery protection philosophy document. ZYPLC provides pre-shipment test reports for all units to support rapid commissioning and minimize downtime.

Q3: What does the 12-Month Warranty cover, and what is the supply and lead time for the 330180-91-00?
All 330180-91-00 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes functional testing — including bias voltage output, sensitivity verification, and oscillator frequency check — before shipment. ZYPLC maintains inventory of the 330180-91-00 and compatible 3300 Series components to support urgent plant requirements. Standard lead time is 3–7 business days for in-stock units, with expedited shipping available for critical plant shutdowns. For volume procurement or long-term supply agreements, contact our technical sales team directly.
