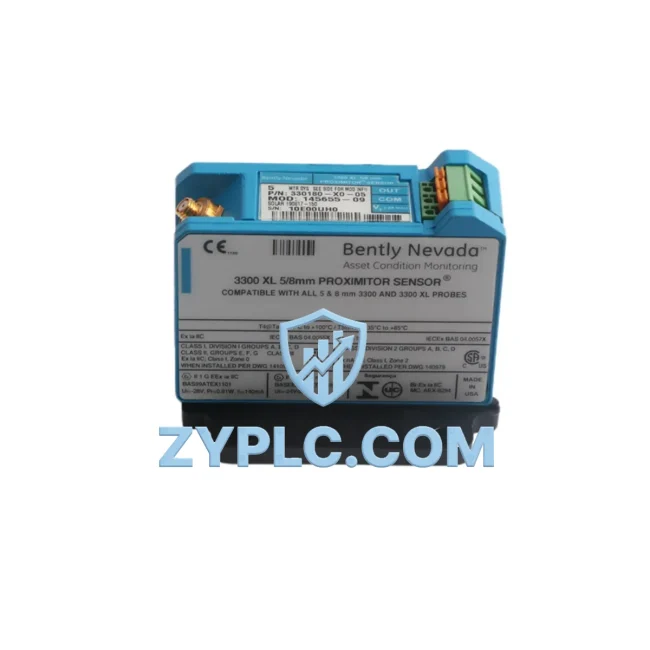

Bently Nevada 330180-X0-05 System-Ready Proximitor Sensor for 3300 Series Architecture

Bently Nevada 330180-X0-05 System-Ready Proximitor Sensor for 3300 Series Control Architecture

The Bently Nevada 330180-X0-05 Proximitor Sensor is a precision eddy-current proximity transducer engineered for seamless integration within the Bently Nevada 3300 Series vibration monitoring architecture. In modern industrial automation, machinery protection is not a standalone function — it is a deeply embedded layer within a multi-tier control hierarchy that spans the field device level, the signal conditioning level, the data acquisition level, and the supervisory control level. The 330180-X0-05 occupies a critical position in this hierarchy, serving as the primary sensing element that converts mechanical shaft displacement into a calibrated DC voltage signal, which is then processed by the 3300 Series monitor rack to deliver real-time vibration, position, and speed data to the plant-wide control system.

Within a complete machinery protection system, the 330180-X0-05 operates in close coordination with the Bently Nevada 330130 extension cable, which bridges the sensor output to the 3300 XL 8mm Proximitor System. The signal is then routed into the 3300/16 or 3300/20 monitor modules housed within the 3300 Series rack, where it is conditioned, scaled, and compared against alarm and danger setpoints. These setpoints are configured via the System 1 Evolution software platform, which provides centralized asset performance management and integrates seamlessly with DCS environments such as the GE Mark VIe turbine control system or third-party SCADA platforms via Modbus TCP or OPC-UA communication gateways.

The architecture surrounding the 330180-X0-05 is designed for both redundancy and scalability. In high-availability installations — such as those found in LNG compressor trains, steam turbine generator sets, and large centrifugal pump stations — dual-redundant sensor configurations are deployed, with each channel feeding an independent monitor module. This ensures that a single sensor failure does not interrupt the protection function. The 3300 Series rack itself supports hot-swap module replacement, allowing maintenance teams to replace individual I/O cards or power supply modules without shutting down the monitoring system, a capability that is essential in continuous-process industries such as petrochemical refining and power generation.

From a signal integrity perspective, the 330180-X0-05 is factory-calibrated to deliver a sensitivity of 7.87 V/mm (200 mV/mil) with a linear measurement range of 0.25 mm to 2.26 mm (10 to 89 mils). The sensor operates on a -24 VDC bias supply provided by the Proximitor module within the 3300 rack, eliminating the need for a separate field power supply and simplifying the overall panel wiring design. The output signal is a negative DC voltage proportional to the gap between the probe tip and the target surface, making it directly compatible with the differential input circuits of the 3300/16 monitor without additional signal conditioning hardware.

In layered automation architectures, the 330180-X0-05 interfaces with the plant DCS at the I/O marshalling level. Analog output signals from the 3300 monitor are wired to the DCS analog input modules — such as those found in the Emerson DeltaV S-series or Honeywell Experion PKS C300 controller cabinets — where they are processed as process variables in the overall plant control strategy. This integration allows operators to view vibration trends alongside process parameters such as bearing temperature, lube oil pressure, and differential pressure on a unified HMI display, enabling faster root-cause analysis and more informed maintenance decisions.

For engineering teams responsible for system commissioning and long-term maintenance, the 330180-X0-05 offers significant advantages in terms of interchangeability and documentation. The sensor is fully compatible with the Bently Nevada TK-3 proximitor calibration kit, allowing field technicians to verify sensitivity and linearity without removing the sensor from the machine. Calibration records can be stored within the System 1 asset database, creating a traceable maintenance history that supports ISO 55000 asset management compliance and facilitates predictive maintenance scheduling.

Inventory availability and supply chain continuity are critical considerations for plant engineers managing long-term maintenance contracts. ZYPLC maintains a dedicated stock of Bently Nevada 330180-X0-05 sensors, supported by a comprehensive incoming inspection process that includes electrical continuity testing, sensitivity verification, and dimensional inspection of the probe tip and connector. Every unit shipped by ZYPLC is covered by a 12-Month Warranty, providing assurance of product quality and performance reliability from the date of delivery. This warranty covers manufacturing defects and electrical performance deviations from the published specification, and is backed by ZYPLC’s technical support team, which can assist with installation guidance, system compatibility verification, and replacement logistics.

The Contextual Integration support provided by ZYPLC extends beyond the sensor itself. Our engineering team can assist customers in verifying the compatibility of the 330180-X0-05 with their specific 3300 Series rack configuration, extension cable routing requirements, and DCS interface wiring. This service is particularly valuable for brownfield retrofit projects where the existing monitor rack may include a mix of legacy 3300 and newer 3500 Series modules, and where careful attention to probe gap, cable length, and driver sensitivity is required to maintain system accuracy.

Architecture Specification Table

Coordinated Control System Design

The 330180-X0-05 does not function in isolation. In a fully integrated machinery protection and control architecture, it works in concert with a range of complementary components. The Bently Nevada 330130-080-00-00 extension cable connects the sensor to the Proximitor module, maintaining signal integrity over distances up to 9 metres. The Bently Nevada 3300 XL 8mm Proximitor System provides the bias supply and signal conditioning required to drive the sensor output into the monitor rack. Within the rack, the Bently Nevada 3300/16 Dual Vibration Monitor processes the differential signal and generates relay outputs for alarm and danger conditions.

For speed and phase measurement applications on the same shaft, the Bently Nevada 330180-X0-05 is often deployed alongside the Bently Nevada 330850 Velomitor Piezo-Velocity Sensor, which captures high-frequency casing vibration data to complement the shaft-relative measurements from the proximity probe. Power to the 3300 Series rack is supplied by the Bently Nevada 3300/05 Power Supply Module, which accepts 18–30 VDC or 85–264 VAC input and provides regulated power to all monitor modules in the rack. For installations requiring communication with a plant DCS or SCADA system, the Bently Nevada 3300/55 Communication Gateway provides Modbus RTU and TCP/IP connectivity, enabling the monitor rack to transmit vibration data to Emerson DeltaV, Honeywell Experion, or Siemens PCS 7 control platforms. Terminal blocks and marshalling panels — such as those from Phoenix Contact or Weidmüller — are used to organize field wiring at the cabinet level, ensuring clean signal routing and simplified maintenance access.

Application in Layered Automation Systems

The Bently Nevada 330180-X0-05 is deployed across a wide range of heavy industrial applications where continuous shaft monitoring is essential for process safety and equipment reliability. In power generation, the sensor is installed on steam turbine generator sets to monitor shaft radial vibration, axial position, and differential expansion, providing early warning of rotor imbalance, bearing wear, and thermal bow conditions. In petrochemical and refining facilities, it is used on centrifugal compressors and process pumps in API 670-compliant machinery protection systems, where it interfaces with the plant safety instrumented system (SIS) to initiate automatic shutdown on high-vibration events.

In LNG liquefaction plants, the 330180-X0-05 is deployed on main refrigerant compressor trains, where the consequences of undetected rotor instability can be catastrophic. The sensor’s wide operating temperature range and robust construction make it suitable for both the warm end and cold end of the compressor train. In water and wastewater treatment facilities, it monitors large vertical turbine pumps and blower units, where vibration trending data is used to optimize maintenance intervals and extend equipment life. In mining and mineral processing, the sensor is installed on SAG mill pinion drives and large slurry pump sets, where the harsh environment demands a sensor with proven reliability and a clear supply chain for replacement units.

Architecture Engineering FAQ

Q1: Is the 330180-X0-05 compatible with both the 3300 Series and the 3500 Series monitor racks?
The 330180-X0-05 is designed and calibrated for use with the Bently Nevada 3300 Series monitor system. While the physical probe connector and sensitivity specification are similar to probes used in the 3500 Series, the 3500 Series uses a different Proximitor module (3500/42M or 3500/45) with slightly different driver sensitivity settings. It is recommended to verify compatibility with your specific 3500 Series monitor configuration before substituting a 3300 Series probe. ZYPLC’s technical team can assist with this verification as part of our Contextual Integration support service.

Q2: What extension cable length is supported, and how does cable length affect system accuracy?
The 330180-X0-05 is typically used with the Bently Nevada 330130 series extension cables, available in standard lengths from 1 metre to 9 metres. The total system — probe plus extension cable — must be matched to the specific Proximitor driver to maintain the published sensitivity of 7.87 V/mm. Using a non-standard cable length or a cable from a different manufacturer can shift the linear range and introduce measurement error. ZYPLC supplies matched probe and cable sets and can advise on custom cable length requirements for specific installation geometries.

Q3: What does the 12-Month Warranty cover, and what is the process for a warranty claim?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and electrical performance deviations from the Bently Nevada published specification for the 330180-X0-05, including sensitivity out of tolerance, open-circuit probe tip, and connector damage attributable to manufacturing. The warranty period begins on the date of delivery. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with your order reference and a description of the observed fault. ZYPLC will arrange for return shipment and provide a replacement unit or full refund upon confirmation of the defect.
