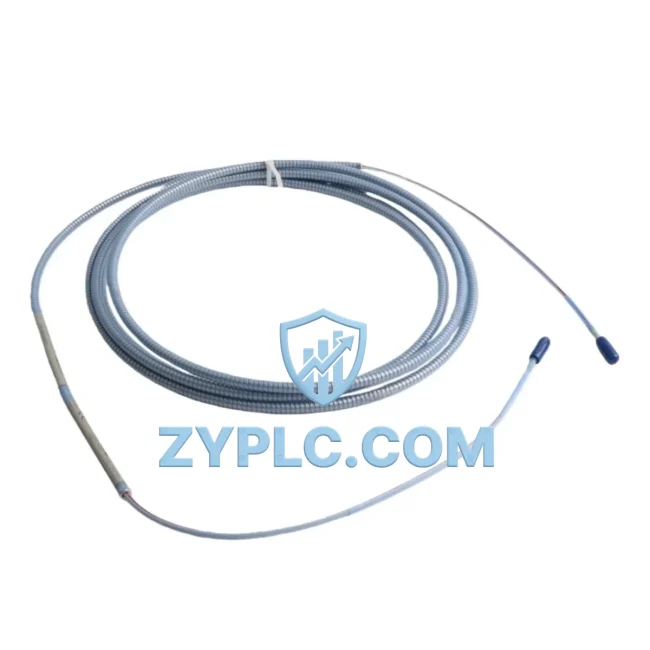

Bently Nevada 330191-00-33-90-05 System-Ready Proximity Probe for 3300 XL Architecture

Bently Nevada 330191-00-33-90-05 System-Ready Proximity Probe for 3300 XL Control Architecture

In modern rotating machinery protection and condition monitoring systems, every component in the signal chain must be precisely matched to the control architecture it serves. The Bently Nevada 330191-00-33-90-05 is a high-performance eddy-current proximity probe engineered specifically for integration within the 3300 XL Series machinery protection platform. Rather than functioning as a standalone sensor, this probe is designed as a foundational element of a layered, multi-channel vibration monitoring architecture — one that spans from the physical measurement point at the machine shaft to the control room DCS or safety instrumented system (SIS).

Understanding the role of the 330191-00-33-90-05 requires viewing it within the complete signal path: the probe tip generates a high-frequency electromagnetic field that responds to changes in the distance between the probe and the rotating target. This raw displacement signal is then conditioned by a matched Bently Nevada 3300 XL Extension Cable and a dedicated 3300 XL Proximitor® Sensor (such as the 330180-X1-05 or 330130-040-01-00), which converts the probe output into a calibrated DC voltage proportional to gap distance. The conditioned signal is then routed to a 3300 XL Monitor — for example, the 3300/16 Dual Voting Logic Monitor or the 3300/25 Keyphasor® Module — where it is processed for alarm, trip, and trending functions.

This architecture ensures that the 330191-00-33-90-05 does not operate in isolation. Its 5-metre armored cable length, 8 mm tip diameter, and -24 VDC bias voltage output are factory-calibrated to work within the 3300 XL system’s defined measurement range of 0.25 mm to 2.25 mm (linear range), maintaining signal integrity across the entire I/O layer without requiring field recalibration when replacing like-for-like components. This plug-and-play system compatibility dramatically reduces commissioning time and minimizes the risk of measurement error during maintenance windows.

Architecture Specification Table

Coordinated Control System Design

The 330191-00-33-90-05 proximity probe achieves its full potential only when deployed as part of a coordinated Bently Nevada 3300 XL system architecture. In a typical turbine or compressor protection installation, the probe is paired with a Bently Nevada 330130-040-01-00 Proximitor® Sensor mounted in a field junction box, which provides the oscillator-demodulator circuitry required to drive the probe and output a calibrated voltage signal. The signal is then routed via shielded instrumentation cable to a Bently Nevada 3300/16 Dual Voting Logic Monitor housed in a 19-inch rack-mount enclosure, where radial vibration, axial position, or differential expansion channels are configured for alarm and trip logic.

For systems requiring Keyphasor® phase reference — essential for vector-based vibration analysis and balancing — the Bently Nevada 3300/25 Keyphasor® Module is installed in the same rack, receiving its own dedicated proximity probe signal from a second 330191-series probe mounted at the shaft reference notch. The rack itself is typically a Bently Nevada 3300/05 Rack Interface Module (RIM) chassis, which provides the backplane communication bus connecting all monitor cards to the system’s data acquisition and communication layer.

At the network layer, the Bently Nevada 3500/92 Communication Gateway (or its 3300 XL equivalent) bridges the machinery protection system to the plant DCS — commonly a Honeywell Experion PKS, Emerson DeltaV, or Yokogawa CENTUM VP — via Modbus TCP or OPC-DA protocol. This integration allows vibration trend data, alarm states, and trip events to be displayed on the plant-wide SCADA or historian without requiring a separate data concentrator. For facilities operating under IEC 61511 functional safety requirements, the trip output from the 3300 XL monitor is hardwired to a Pilz PNOZ or Rockwell Allen-Bradley GuardLogix Safety PLC input module, ensuring that machinery trip signals are processed within the SIL-rated safety loop independently of the DCS communication path.

Power supply redundancy is addressed through a pair of Bently Nevada 3300/15 Power Supplies installed in an N+1 configuration within the monitor rack, each fed from separate UPS-backed AC distribution panels. This eliminates the power supply as a single point of failure in the protection architecture. Terminal connections between the field cable and the rack are made via Phoenix Contact MSTB or equivalent DIN-rail terminal blocks, which provide vibration-resistant, screw-clamp terminations suitable for the signal levels involved. For installations in hazardous areas classified as Zone 1 or Division 1, MTL or Pepperl+Fuchs Zener barrier or galvanic isolator modules are inserted in the signal path between the Proximitor® output and the monitor input, maintaining intrinsic safety compliance without degrading signal bandwidth.

Application in Layered Automation Systems

The 330191-00-33-90-05 is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is critical to process continuity and personnel safety. In power generation applications — including gas turbines, steam turbines, and hydro generators — this probe monitors shaft radial vibration and axial thrust position in real time, providing the early warning data that allows operators to schedule maintenance before a forced outage occurs. Turbine OEMs and EPC contractors specify the 3300 XL platform as the baseline protection system for units rated above 1 MW, making the 330191-00-33-90-05 a standard BOM component in new-build and retrofit projects alike.

In petrochemical and refinery environments, the probe is installed on centrifugal compressors, boiler feed pumps, and reactor agitators operating in continuous service. The probe’s high-temperature rating and armored cable construction allow it to function reliably in ambient conditions up to 177°C at the tip, making it suitable for hot-section installations near process heaters or steam headers. The 3300 XL system’s integration with the plant DCS via Modbus or OPC ensures that vibration data is available to the process control team alongside temperature, pressure, and flow variables, enabling a holistic view of equipment health within the existing operator interface.

In mining and mineral processing operations, the 330191-00-33-90-05 is used on large ball mills, SAG mills, and crusher drives, where shaft displacement monitoring provides early detection of bearing wear, misalignment, and rotor imbalance. The rugged construction of the probe and its compatibility with the 3300 XL platform’s configurable alarm setpoints allows maintenance teams to implement condition-based maintenance strategies, reducing unplanned downtime in operations where a single equipment failure can halt an entire production circuit. Water and wastewater treatment facilities use the probe on large centrifugal pumps and blowers, where continuous vibration monitoring supports regulatory compliance and extends mean time between failures (MTBF) for critical assets.

Architecture Engineering FAQ

Q1: Is the 330191-00-33-90-05 directly compatible with the Bently Nevada 3500 Series monitors, or is it exclusive to the 3300 XL platform?
The 330191-00-33-90-05 is calibrated and specified for use within the Bently Nevada 3300 XL machinery protection system, paired with 3300 XL Proximitor® Sensors. While the eddy-current measurement principle is shared across Bently Nevada product families, the scale factor, cable length, and system calibration of this probe are optimized for 3300 XL monitors. For 3500 Series applications, Bently Nevada specifies the 330180 or 330500 series probes with matched 3500/42 or 3500/46 monitor cards. Cross-platform use without recalibration is not recommended and may result in measurement errors that compromise machinery protection integrity.

Q2: What is the recommended installation procedure for replacing a 330191-00-33-90-05 in a live plant environment, and how does the 12-Month Warranty apply?
Replacement of a proximity probe in a live plant should follow the machinery OEM’s hot-swap procedure if the monitor supports it, or be scheduled during a planned outage window. The replacement probe must be gapped to the same nominal distance (typically 1.0 mm to 1.5 mm from the shaft surface) using a calibrated gap tool and a digital voltmeter to verify the -10 VDC to -18 VDC output at the Proximitor® output terminal. The ZYPLC 12-Month Warranty covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed through ZYPLC’s technical support team at plc.sales@zyplc.com, and replacement units are dispatched within the agreed lead time to minimize system downtime.

Q3: How does the 330191-00-33-90-05 support long-term maintenance planning and spare parts inventory strategy in a multi-unit plant?
Because the 330191-00-33-90-05 is a standardized, catalog-specified component within the Bently Nevada 3300 XL platform, it is well-suited to a consolidated spare parts strategy. Plants operating multiple turbines, compressors, or pumps on the 3300 XL system can maintain a single pool of interchangeable probes, reducing the total spare parts investment compared to managing multiple probe variants. ZYPLC maintains stock of the 330191-00-33-90-05 and related 3300 XL components — including Proximitor® Sensors, extension cables, and monitor cards — to support rapid dispatch for both planned maintenance and emergency replacement scenarios. The 12-Month Warranty on all supplied units provides an additional layer of assurance for procurement and reliability engineering teams managing long-term asset maintenance budgets.
