Bently Nevada 330703-000-090-10-02-CN Energy-Saving Proximity Probe

Bently Nevada 330703-000-090-10-02-CN Energy-Saving Proximity Probe for Optimized 3300 XL Automation

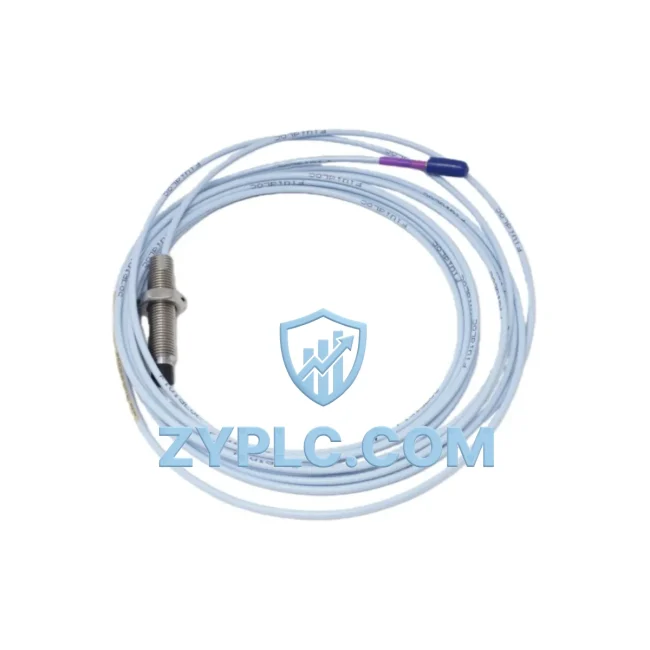

The Bently Nevada 330703-000-090-10-02-CN is a high-precision eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for demanding industrial environments, this metric-format probe delivers real-time shaft vibration and position data that enables plant engineers to move beyond reactive maintenance and toward a fully energy-aware, predictive operational model. By continuously feeding accurate displacement signals into the 3300 XL monitor rack, the 330703-000-090-10-02-CN helps facilities reduce unnecessary energy consumption caused by undetected rotor imbalance, misalignment, and bearing wear — three of the most common drivers of excess motor load and elevated power draw on rotating equipment.

In modern production lines where uptime directly correlates with energy cost per unit output, the ability to detect early-stage mechanical deviation is critical. The 330703-000-090-10-02-CN integrates seamlessly with the Bently Nevada 3300 XL 8mm Proximitor Sensor to convert raw proximity signals into conditioned voltage outputs compatible with the plant’s DCS or safety instrumented system. When paired with the 3500/42M Proximitor/Seismic Monitor module, the probe’s output feeds directly into alarm and trip logic, allowing the control system to reduce drive speed or initiate a controlled shutdown before a fault escalates into a high-energy failure event — protecting both the machine and the facility’s energy budget.

Facilities running variable-speed drives such as the Bently Nevada-compatible Rockwell PowerFlex 755 or Siemens SINAMICS G120 benefit significantly from integrating proximity probe feedback into their closed-loop speed regulation. When the 330703-000-090-10-02-CN detects abnormal shaft orbit patterns, the signal can be routed through the 3300 XL system to trigger drive derating, preventing the motor from operating at inefficient load points. This feedback loop — from mechanical sensing through the Proximitor to the drive controller — is a cornerstone of energy-optimized rotating equipment management.

The probe’s 90mm armored cable and robust stainless-steel housing make it suitable for installation in high-temperature, high-vibration zones such as compressor trains, steam turbines, and large pump sets. Its metric thread configuration (M10 x 1) ensures compatibility with standard probe holders used across the 3300 XL installation ecosystem, reducing retrofit time and minimizing production interruption during scheduled maintenance windows.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 330703-000-090-10-02-CN operates as the sensing front-end of a layered energy management architecture. At the field level, the probe mounts adjacent to the shaft and feeds displacement data to the Bently Nevada 3300 XL 8mm Proximitor Sensor, which conditions the signal for transmission to the monitor rack. The 3500/42M Proximitor/Seismic Monitor module processes this data and compares it against configured alert and danger setpoints, enabling the plant’s energy management system to respond dynamically to mechanical load changes.

At the drive layer, the conditioned vibration signal can inform the speed reference of variable frequency drives. In installations where the Bently Nevada System 1 Condition Monitoring Software is deployed, historical vibration trends from the 330703-000-090-10-02-CN are correlated with energy consumption data logged by power meters such as the Schneider Electric PowerLogic ION7650 or the ABB M2M energy transducer. This correlation allows maintenance engineers to identify the precise operating speed range at which a given machine achieves its lowest specific energy consumption — a key metric for production line optimization.

For facilities using Profibus DP or Modbus RTU communication backbones, the 3300 XL monitor rack can be configured to publish real-time vibration and gap voltage data to the plant’s SCADA or DCS platform, such as a Siemens SIMATIC S7-400 PLC or a Honeywell Experion PKS controller. This integration enables energy-aware control logic: when the 330703-000-090-10-02-CN reports a rising vibration trend, the control system can automatically reduce the setpoint of the associated drive, lowering motor current draw and extending the interval before the next scheduled maintenance stop. The result is a measurable reduction in both energy cost and unplanned downtime.

At the I/O and signal conditioning layer, the probe’s output is compatible with standard 4–20 mA transmitter interfaces, allowing integration with third-party condition monitoring platforms and energy management dashboards without additional signal conversion hardware. When combined with a Bently Nevada 3300 XL Dual Voting Trip Module, the system can implement two-out-of-three voting logic for critical machinery protection, ensuring that a single sensor anomaly does not trigger an unnecessary trip — preserving production continuity and avoiding the energy cost of an unplanned restart cycle.

Power Optimization in Real Production Lines

In a typical centrifugal compressor train, undetected rotor imbalance can increase motor current draw by 8–15% above baseline, translating directly into elevated energy costs and accelerated bearing wear. The 330703-000-090-10-02-CN addresses this by providing continuous, high-resolution shaft position data that allows the plant’s condition monitoring system to detect imbalance at an early stage — often weeks before the fault would be apparent through temperature or current monitoring alone.

On pump stations serving process cooling or water treatment circuits, the probe’s gap voltage output provides a direct indicator of shaft centerline position. A gradual shift in centerline position is a reliable early indicator of bearing wear or foundation settling, both of which cause the pump to operate away from its best efficiency point (BEP). By catching this deviation early, the maintenance team can schedule a corrective intervention during a planned production window rather than responding to an emergency shutdown — avoiding the energy penalty of an unplanned restart and the production loss associated with unscheduled downtime.

For steam turbine applications, the 330703-000-090-10-02-CN’s high-temperature rating and armored cable construction make it suitable for installation in the bearing housing proximity, where it monitors both radial vibration and axial position. Accurate axial position monitoring is critical for maintaining optimal blade tip clearance, which directly affects turbine isentropic efficiency. A 1% improvement in turbine efficiency on a 10 MW unit represents approximately 100 kW of recovered power — a significant energy saving that compounds over the turbine’s operating life.

All units supplied by ZYPLC are tested prior to shipment using calibrated Proximitor test rigs to verify gap voltage linearity, sensitivity, and frequency response. Each 330703-000-090-10-02-CN is shipped with a test report and is covered by a 12-month warranty, ensuring that the probe performs to specification from the moment it is installed. Fast dispatch from our stocked inventory minimizes lead time and supports just-in-time maintenance scheduling.

Energy Optimization FAQ

Q1: How does the 330703-000-090-10-02-CN contribute to energy savings in rotating equipment?
By providing continuous, high-resolution shaft vibration and position data, the probe enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear. Addressing these faults before they escalate prevents the motor from operating at elevated current draw, directly reducing energy consumption. Integration with variable frequency drives allows the control system to derate motor speed in response to rising vibration trends, further optimizing energy use.

Q2: Is the 330703-000-090-10-02-CN compatible with both the 3300 XL and 3500 Series monitor racks?
Yes. The probe is designed for the Bently Nevada 3300 XL system and is also compatible with 3500 Series monitor modules that accept standard 3300 XL probe inputs. Always verify the Proximitor model and gap voltage range configured in your monitor rack before installation to ensure signal compatibility.

Q3: What is the recommended replacement interval, and how does timely replacement reduce energy waste?
Bently Nevada recommends replacing proximity probes when gap voltage linearity degrades beyond ±0.5% of the calibrated range, or when cable insulation shows signs of thermal or chemical degradation. A degraded probe can produce false readings that cause the control system to operate the machine at a non-optimal setpoint, increasing energy consumption. ZYPLC maintains stock of the 330703-000-090-10-02-CN to support rapid replacement and minimize the duration of any monitoring gap.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Each unit undergoes functional testing on a calibrated Proximitor test rig, verifying sensitivity (V/mm), linearity across the linear range, and frequency response. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail to meet specification within the warranty period are replaced or refunded. Contact ZYPLC with your test report and installation details to initiate a warranty claim.
